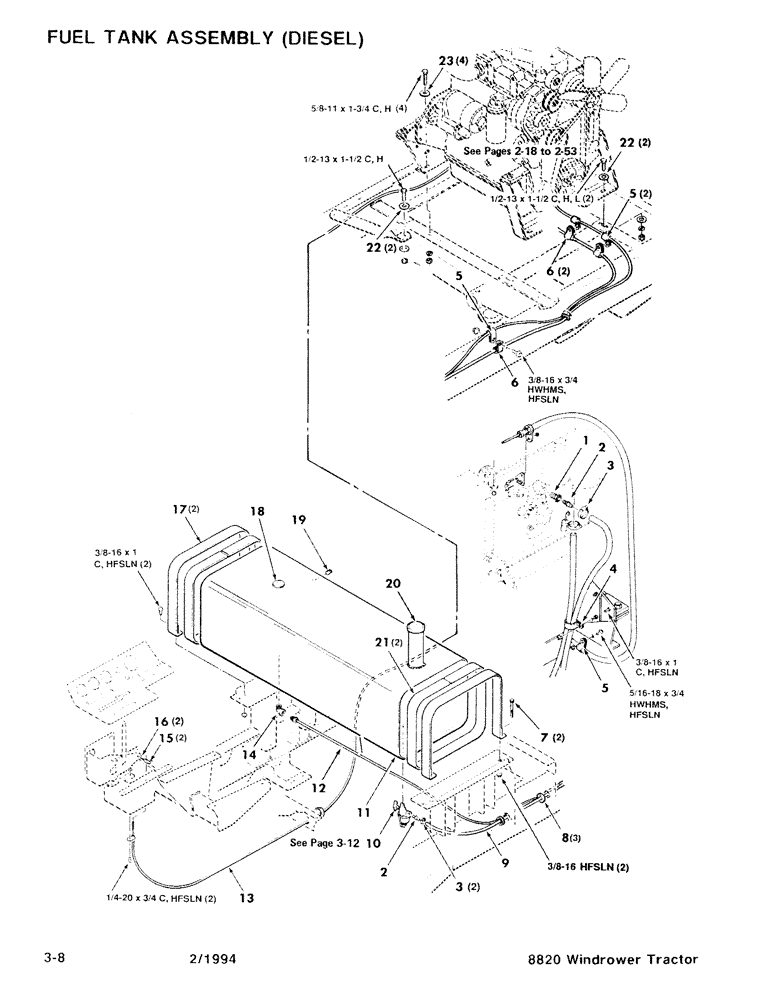

Запчасти Case IH 8820 (3-08) - FUEL TANK ASSEMBLY, DIESEL (03) - FUEL SYSTEM

1

46201

BUSHING

- Reducer

1шт.

2

7746662

INSERT

Fitting - Connector

2шт.

3

7721020

HOSE CLAMP

Clamp - Hose

3шт.

4

7898737

CLAMP

- Hose

1шт.

5

755744

CLAMP

- Line

4шт.

6

751487

CLAMP

- Hose

3шт.

7

703595

HYDRAULIC SYSTEM,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

3/8-16 x 3 FTC

2шт.

8

8827172

GROMMET

3шт.

9

700117901

LINE

- Fuel

1шт.

10

720714

STRAINER ASSY.

Strainer - Fuel

1шт.

11

700705627

RESERVOIR, HYDRAULIC

Tank - Fuel

1шт.

12

700708199

LINE

- Fuel

1шт.

13

700705628

CABLE

Control - Throttle

1шт.

14

7846231

ELBOW

1/8 NPTF Street Ell

1шт.

15

7041932

ROD, CONNECTING

Connector

2шт.

16

705699

WASHER,#12

No. 12 Plain Washer

2шт.

17

700111119

SECURING STRAP

Strap - Fuel Tank

2шт.

18

700706468

SENDER UNIT

Sender - Fuel Lever

1шт.

The gasket for ref # 18, sendor is 14556. bj 7/9/99

1шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

20

700708089

CAP

- Fuel Tank

1шт.

21

700111015

LINER

- Felt

2шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

4шт.

23

NLS

NO LONGER SERVICED

5/8 Hardened Plain Washer

4шт.

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 C

2шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

3шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

3шт.

703793

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5, Full Thd

5/8-11 x 1-3/4 C

4шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

1шт.

86516876

COVER

1/2-13 H

3шт.

704130

NUT,5/8"-11, G5

5/8-11 H

4шт.

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

1шт.

704247

NUT

3/8-16 HFSLN

6шт.
