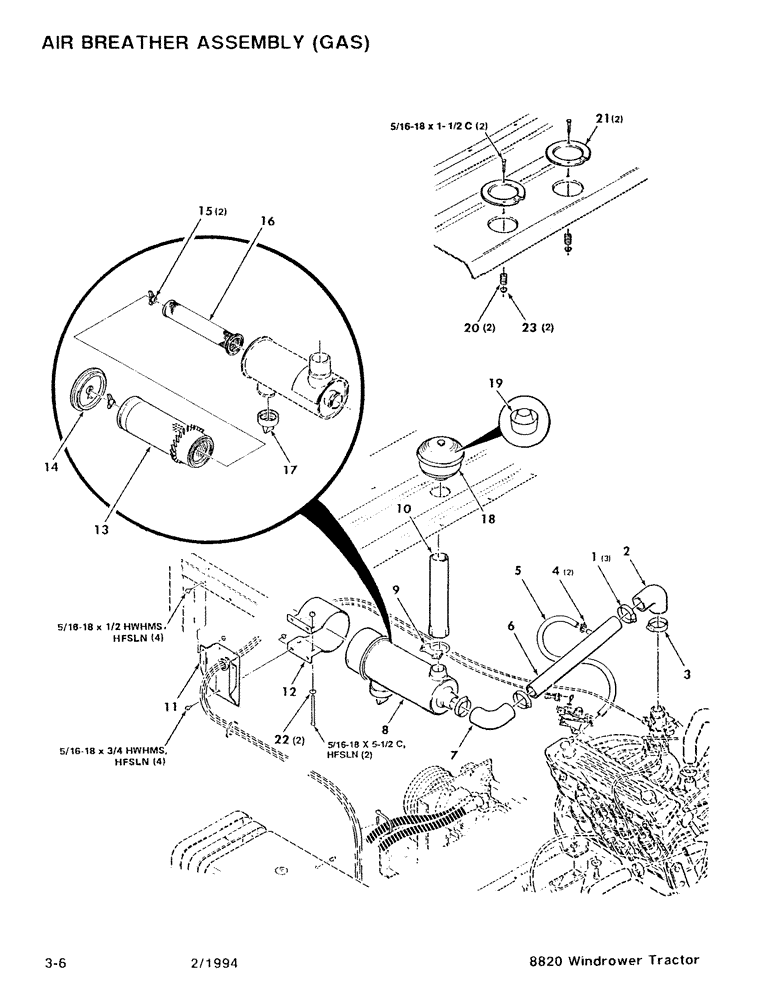

Запчасти Case IH 8820 (3-06) - AIR BREATHER ASSEMBLY, GAS (03) - FUEL SYSTEM

1

720870

CLAMP

- Hose

3шт.

2

700708247

FLEXIBLE HOSE

Hose - Air Cleaner

1шт.

3

721365

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

Clamp - Hose

1шт.

4

7020001

CLAMP

- Wire, Hose

2шт.

5

8021651

HOSE,15.88 mm ID x 444.00 mm, SAE 30R2

1шт.

6

700117924

TUBE

- Air Intake

1шт.

7

700708468

FLEXIBLE HOSE

Hose - Air Cleaner

1шт.

8

700709660

AIR CLEANER

1шт.

9

722769

CLAMP

1шт.

10

700708464

SUPPORT,76.2 mm OD, 375 mm Length

Tube - Extension

1шт.

11

700111118

SUPPORT

- Mounting, Air Cleaner

1шт.

12

6602734

CLAMP

- Saddle

1шт.

13

700709750

ELEMENT

- Primary

1шт.

14

700709752

COVER

1шт.

15

7741218

NUT, WING

Nut

2шт.

16

700709751

ELEMENT

- Secondary

1шт.

17

700709753

DUST VALVE

Valve - Dust

1шт.

18

700708221

AIR PRE-CLEANER ASSY

Pre-Cleaner

1шт.

19

365413R1

BOWL

- Pre-Cleaner

1шт.

20

CAS758342

SPRING

- Compression

2шт.

21

487777

COVER

- Port

2шт.

22

705525

WASHER

5/16 Hardened Plain Washer

2шт.

23

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN

2шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 x 1-1/2 C

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

4шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

4шт.

702076

SCREW

5/16-18 x 5-1/2 C

2шт.
