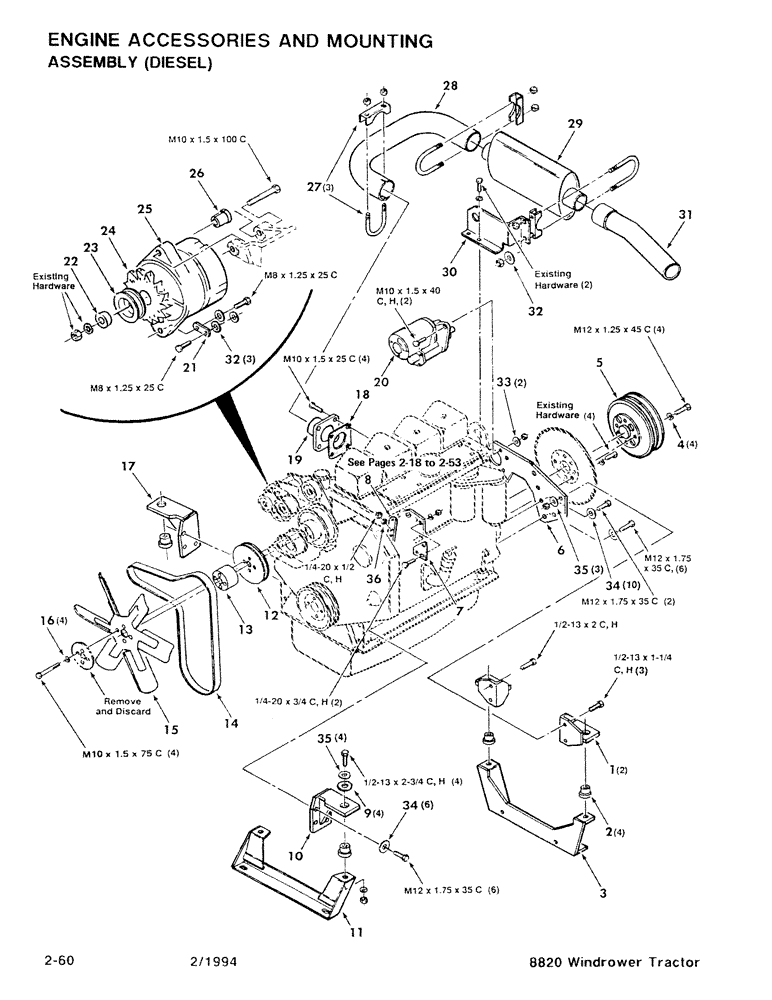

Запчасти Case IH 8820 (2-60) - ENGINE ACCESSORIES AND MOUNTING ASSEMBLY, DIESEL (02) - ENGINE

1

700117904

MOUNTING PARTS

Mounting - Rear

2шт.

2

700707039

RUBBER MOUNTING

Mount - Rubber

4шт.

3

700117907

PLATE

- Rear

1шт.

4

700708548

WASHER

- Hardened (12 mm)

4шт.

5

700117918

SHEAVE

- 2B, Powerband

1шт.

6

700117898

LARGE PLATE

Plate - Rear

1шт.

7

700117916

MOUNTING PARTS

Mounting - Cable

1шт.

8

700117917

STRAP

1шт.

9

457432

WASHER

4шт.

10

700117888

MOUNTING PARTS

Mounting - Front, Left

1шт.

11

700117919

MOUNTING PARTS

Mounting - Front

1шт.

12

700708245

SHEAVE

1шт.

13

700708244

SPACER

- Fan

1шт.

14

700708233

BELT,1363.10 mm L

Fan 1363.10 mm L

1шт.

15

700708243

FAN

1шт.

16

700708499

WASHER

- Hardened (10 mm)

4шт.

17

700117889

MOUNTING PARTS

Mounting - Front, Right

1шт.

18

700708266

GASKET

1шт.

19

700117914

PIPE

- Exhaust

1шт.

20

700708239

STARTING MOTOR

Starter

1шт.

Starter is the same as CASE P/N 1987559C1. See 8840 catalog page 10-54 for parts breakdown. This is per print of P/N 700708239.

1шт.

21

700117858

STRAP

1шт.

22

700708232

RETAINER

- Pulley

1шт.

23

700708231

PULLEY

- Alternator

1шт.

24

700708240

FAN

- Alternator

1шт.

25

700710688

ALTERNATOR

1шт.

26

700708229

SPACER

1шт.

27

722041

CLAMP,2-1/2" ID

- Exhaust

3шт.

28

700708470

PIPE

- Exhaust

1шт.

29

700708242

MUFFLER

1шт.

30

700117925

MOUNTING PARTS

Mounting - Muffler

1шт.

Can Use P/N 854-12025 Bolt. See page 2-24

1шт.

31

700708766

PIPE

- Extension

1шт.

32

1703321

WASHER,M8 x 16 x 1.6

8 Plain Washer

4шт.

33

1705318

WASHER

10 Plain Washer

2шт.

34

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

12 Plain Washer

16шт.

35

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

8шт.

36

705517

WASHER

1/4 Hardened Plain Washer

1шт.

7772197

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8

M8 x 1.25 x 25 C

2шт.

7703481

TUBE,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 x 1/2 C

1шт.

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 C

2шт.

700708349

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

M10 x 1.5 x 25 C

4шт.

7771728

SCREW

M10 x 1.5 x 40 C

2шт.

700708764

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 x 1.5 x 75 C

4шт.

7771975

SCREW,Hex, M10 x 100mm, Cl 8.8

M10 x 1.5 x 100 C

1шт.

7772379

SCREW,Hex, M12 x 1.75 x 35mm, Cl 8.8

M12 x 1.75 x 35 C

14шт.

700708246

CAPSCREW,M12 x 1.25 x 45mm, Cl 12.9

M12 x 1.25 x 45 C

4шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

3шт.

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 C

4шт.

7704398

NUT,M10, Cl 8

M10 x 1.5 H

2шт.

704007

NUT,1/4"-20, G5

1/4-20 H

3шт.

704031

NUT

1/2-13 H

8шт.

700133881

CLAMP

1шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

700133879

MOUNTING PARTS

1шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

700133880

MOUNTING PARTS

1шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

mounting rubber

4шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

700117552

WASHER

special

4шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

232-5316

FLANGE NUT,Flg, 3/8"-16

HFTLN, 3/8-16 GR/G

10шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

496-11041

WASHER,13/32" x 13/16" x .065", HDN

flat, hardened, 3/8 inch

2шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

700133885

STRAP

muffler

1шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

700133883

STRAP

muffler

1шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

495-21056

WASHER,1/2"

plain, hardened, 1/2 inch

2шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

To convert 8820 muffler mounting to that found on the 8825, shown on page 2-4 in the 8825 parts book.

1шт.
