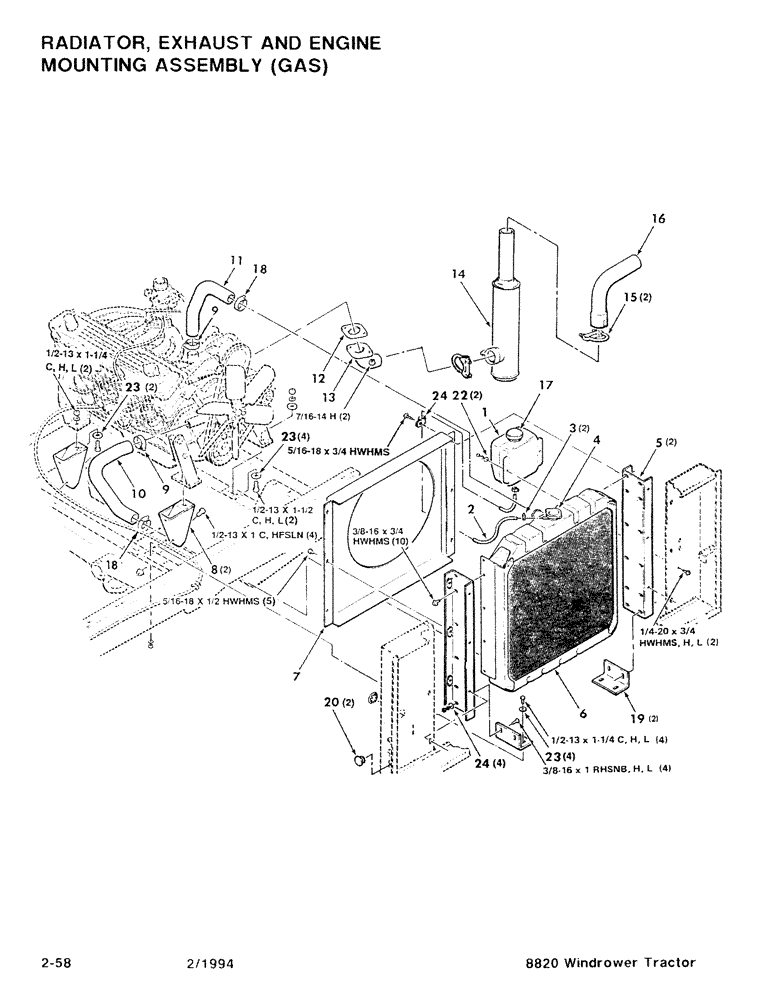

Запчасти Case IH 8820 (2-58) - RADIATOR, EXHAUST AND ENGINE MOUNTING ASSEMBLY, GAS (02) - ENGINE

1

700705626

TANK

- Overflow

1шт.

2

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

overflow 0.31" ID x 48.03", SAE 30R1

1шт.

3

7721020

HOSE CLAMP

Clamp - Line

2шт.

4

700708265

CAP

- Radiator (Use with 15 lb. system)

5шт.

700115012

SUPPORT

- Radiator

2шт.

6

700708264

RADIATOR

(15 lb. system)

1шт.

7

700111964

SHROUD

- Fan

1шт.

8

700110816

ENGINE MOUNT

Mounting Engine

2шт.

9

721712

CLIP

Clamp - Hose

2шт.

10

700707781

FLEXIBLE HOSE,38.10 mm ID, 44.45 mm ID x 260.00 mm, SAE 20R4 Class SC

RADIATOR HOSE, , Lower 38.10 mm ID, 44.45 mm ID x 260.00 mm, SAE 20R4 Class SC

1шт.

11

700704974

FLEXIBLE HOSE,38.10 mm ID, 44.45 mm ID x 153.00 mm, SAE 20R4 Class SC, SAE J20

RADIATOR HOSE, , Upper 38.10 mm ID, 44.45 mm ID x 153.00 mm, SAE 20R4 Class SC, SAE J20

1шт.

12

744656

GASKET

- Exhaust

1шт.

13

700111966

EXHAUST SYSTEM PIPE

Tube -Exhaust

1шт.

14

41244

MUFFLER

1шт.

15

720664

CLAMP

- Exhaust

2шт.

16

700707235

EXHAUST SYSTEM PIPE

Pipe - Exhaust, Upper

1шт.

17

700706181

CAP

1шт.

18

720219

CLAMP

2шт.

19

700115015

SUPPORT

Angle - Mounting

2шт.

20

7845464

PLUG

2шт.

21

755744

CLAMP

- Hose

1шт.

22

705517

WASHER

1/4 Hardened Plain Washer

2шт.

23

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

10шт.

24

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 Hardened Plain Washer

4шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

4шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

4шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

4шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

5шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

10шт.

704007

NUT,1/4"-20, G5

1/4-20 H

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

704080

NUT,7/16"-14, G5

7/16-14 H

2шт.

86516876

COVER

1/2-13 H

8шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

4шт.
