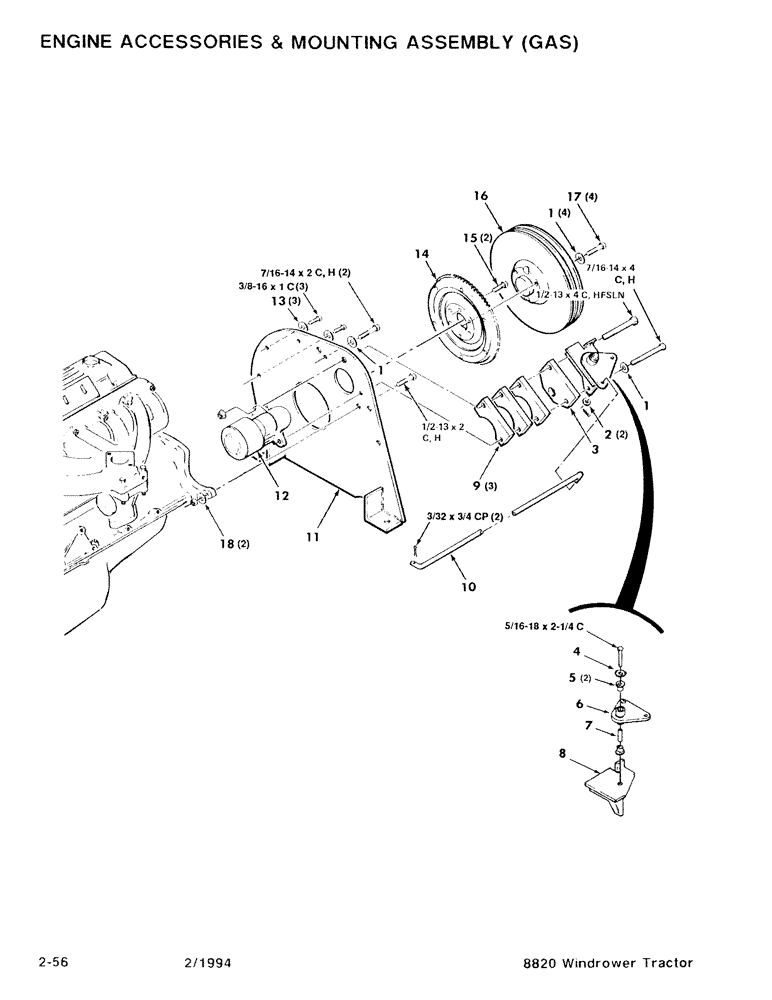

Запчасти Case IH 8820 (2-56) - ENGINE ACCESSORIES & MOUNTING ASSEMBLY, GAS (02) - ENGINE

1

705558

WASHER

7/16 Hardened Plain Washer

6шт.

2

705517

WASHER

1/4 Hardened Plain Washer

2шт.

3

700109200

PLATE

1шт.

4

705525

WASHER

5/16 Hardened Plain Washer

1шт.

5

756452

NYLON BEARING

- Nylon

2шт.

6

6605299

ARM ASSY.

Bellcrank

1шт.

7

6605323

BUSHING

1шт.

8

700109202

SUPPORT

Mount - Control

1шт.

9

700109201

PLATE

3шт.

10

6605349

LINK

- Throttle

1шт.

11

6605067

MOUNTING PARTS

Mounting - Engine

1шт.

12

7741473

STARTING MOTOR

Starter - Engine

1шт.

13

705533

WASHER

3/8 Hardened Plain Washer

5шт.

14

7725567

FLYWHEEL

1шт.

15

772913

BOLT,7/16" - 20 x 7/8", Gr 5

7/16-20 x 7/8 C

2шт.

16

6605133

SHEAVE

- 2 - Groove

1шт.

17

414-732

BOLT,Hex, 7/16" - 20 x 2", Gr 5

7/16-20 x 2C

4шт.

18

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

2шт.

7771744

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 x 2-1/4 C

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

3шт.

7772817

BOLT,7/16" - 14 x 2", Gr 5

7/16-14 x 2 C

1шт.

773697

SPECIAL BOLT,7/16" - 14 x 4", Gr 5

7/16-14 x 4 C

1шт.

873299

HARDWARE

7/16-20 x 7/8 C

2шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 C

2шт.

702217

SHIELD

1/2-13 x 4 C

1шт.

704080

NUT,7/16"-14, G5

7/16-14 H

2шт.

704031

NUT

1/2-13 H

2шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

1шт.
