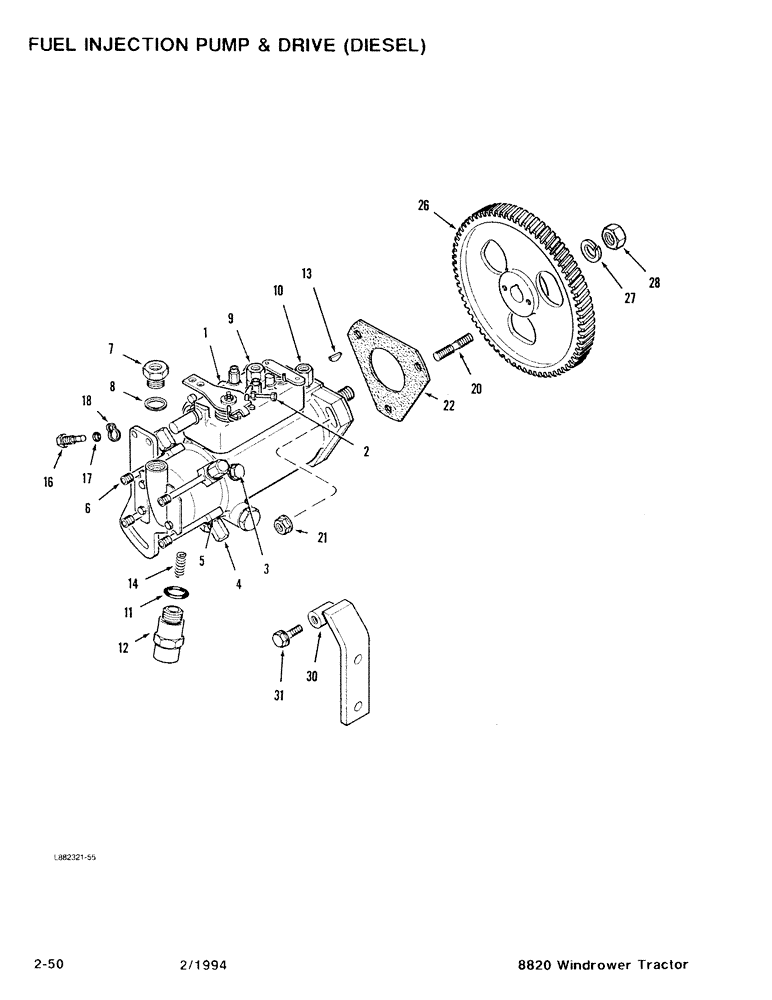

Запчасти Case IH 8820 (2-50) - FUEL INJECTION PUMP & DRIVE, DIESEL (02) - ENGINE

1

J908655

PUMP

Pump Assembly - Fuel Injection, New

1шт.

JR908655

REMAN-INJECTION PUMP

Pump Assembly - Fuel Injection, Remanufactured (North America only)

1шт.

JC908655

CORE-INJECTION PUMP

Return Number - Pump Core (Use this part number to return pump core for credit)

1шт.

2

J904637

SET SCREW

Screw - Adjusting, Low Idle

1шт.

3

K963867

SCREW

Screw Assembly - Bleed, Pump Head

1шт.

4

J904646

BANJO BOLT

Bolt - Banjo

4шт.

5

J904644

WASHER

Washer - Sealing

9шт.

6

K962755

ADAPTER

Fitting - Banjo

4шт.

7

J904641

FITTING

Fitting - Inlet

1шт.

8

K962748

WASHER

Washer - Inlet Fitting, Copper

1шт.

9

J904640

VENT

Orifice - Bleed

1шт.

10

J904643

FITTING

Fitting - Return

1шт.

11

J904635

O-RING

O-Ring - Solenoid

1шт.

12

J904630

SOLENOID

Solenoid Assembly - Shut Down, 12 volt

1шт.

13

J902332

KEY

Key - Retainer, Pump Gear

1шт.

14

J904777

SPRING

Spring - Plunger

1шт.

16

J904778

BOLT

Bolt - Hex, Locking Device

1шт.

17

J904780

SEAL

Seal - Locking Bolt

1шт.

18

J904779

WASHER

Washer - Locking

1шт.

20

J902501

STUD

Stud - Pump Mounting, M8 x 48 mm

3шт.

21

J900589

NUT

Nut - Hex Flange, M8

3шт.

22

J914389

GASKET

Gasket - Pump Mounting

1шт.

26

J920594

PINION

Gear - Pump Drive

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

Nut - Hex, M14

1шт.

30

J905387

BRACE

Brace - Fuel Pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Bolt - Hex Flange, 8 mm - 1.25 x 20 mm

3шт.
