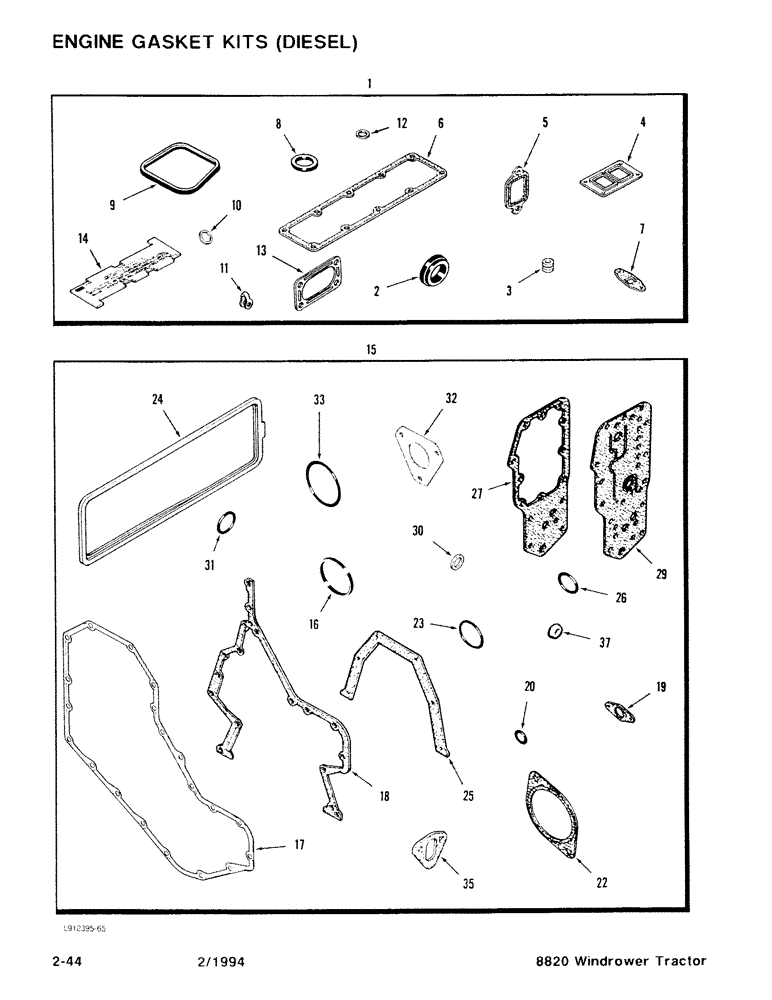

Запчасти Case IH 8820 (2-44) - ENGINE GASKET KITS, DIESEL (02) - ENGINE

1

A77792

GASKET KIT

- Valve Grind (See Note A)

1шт.

2

J920020

GASKET

- Housing

1шт.

3

J901097

SEAL

- Valve

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: Turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- Exhaust Manifold

4шт.

6

J914028

GASKET

- Intake Manifold

1шт.

7

J914388

GASKET

- Oil Drain Tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- Oil Fill Cap

1шт.

9

J902666

GASKET

Seal - Rocker Cover

4шт.

10

J900808

SEAL

- Injector (9 mm Tip)

4шт.

11

J903380

SEAL

- Connector

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- Injector, Body

1шт.

13

J914856

GASKET,1.02mm Thk

- Connection, Crossover

1шт.

14

J823921

GAUGE

- Cylinder head reused bolt stretch

1шт.

15

A77671

GASKET KIT

- Engine Block (See Note B) CYLINDER BLOCK

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- Cover CYLINDER BLOCK

1шт.

17

J914385

GASKET,1.02mm Thk

- Front Cover CYLINDER BLOCK

1шт.

18

J916131

GASKET

- Gear Housing CYLINDER BLOCK

1шт.

19

J905595

GASKET

- Pin Housing CYLINDER BLOCK

1шт.

20

J913994

O-RING

- Sealing CYLINDER BLOCK

1шт.

22

J919601

GASKET

- Cover Plate CYLINDER BLOCK

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J904056

GASKET

- Tappet Cover CYLINDER BLOCK

1шт.

25

J914386

GASKET

- Seal Retainer CYLINDER BLOCK

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring - Sealing, 50 mm ID CYLINDER BLOCK

1шт.

27

J918256

GASKET

- Cooler Core, Oil CYLINDER BLOCK

1шт.

29

J918257

GASKET

- Filter Head CYLINDER BLOCK

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- Seal, Plug CYLINDER BLOCK

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-Ring - Sealing CYLINDER BLOCK

1шт.

32

J914389

GASKET

- Fuel Pump CYLINDER BLOCK

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-Ring - Housing to Block CYLINDER BLOCK

1шт.

35

J914304

GASKET

- Mounting, Lift Pump CYLINDER BLOCK

1шт.

37

J900267

SEAL

Assembly - Cover Bolt CYLINDER BLOCK

4шт.
