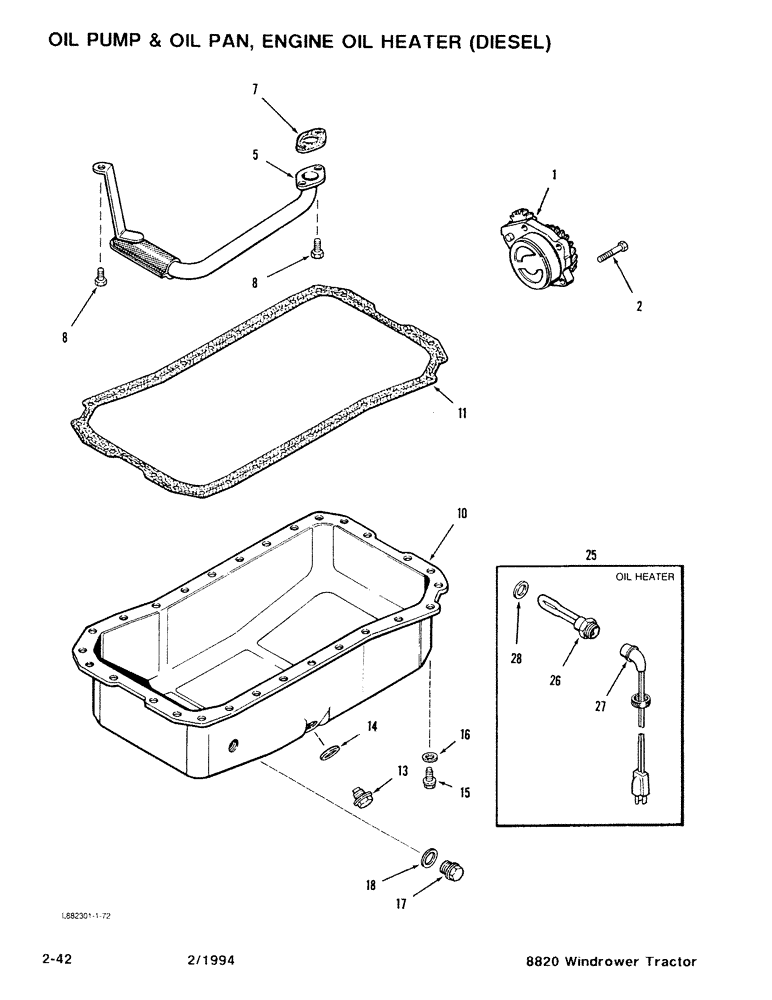

Запчасти Case IH 8820 (2-42) - OIL PUMP & OIL PAN, ENGINE OIL HEATER, DIESEL, OIL PUMP AND OIL PAN (02) - ENGINE

1

J918211

PUMP, ENGINE OIL

Pump Assembly-Oil, Engine

1шт.

JR918211

REMAN-ENG OIL PUMP

Pump-Oil, Remanufactured (North America only)

1шт.

JC918211

CORE-HYDRAULIC PUMP

Return Number-Pump Core (Use this part number to return pump core for credit)

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

613-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Bolt-Hex, 8mm-1.25 x 30 mm

4шт.

5

J905223

TUBE

Tube-Suction, Oil

1шт.

7

J914383

GASKET

Gasket-Suction Tube

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - Heavy Hex Flange, 8 mm - 1.25 x 16 mm

3шт.

10

J907570

PAN

Pan-Oil, Engine

1шт.

11

NSS

NOT SOLD SEPARAT

Gasket-Oil Pan

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

13

J911638

PLUG,M18 x 1.5

Plug-Drain, Oil Magnetic

1шт.

14

J900216

PACKING RING

Washer-Seal, Drain Plug

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

15

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - Hex Flange Head, M8 x 25

28шт.

16

J907537

SPRING WASHER

Washer-Spring, Pan Bolt

28шт.

17

J904386

PLUG

Plug-Pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Washer-Seal, Plug

1шт.

A77673

GASKET KIT

Gasket Kit-Oil Pan, Includes: Ref. 7, 11 and 14

1шт.

25

A77490

KIT

Kit-Heater, Engine Oil ENGINE OIL HEATER

1шт.

26

NSS

NOT SOLD SEPARAT

Element-Heater, 12 Volt (Order A77490) ENGINE OIL HEATER

1шт.

27

J905113

CABLE

Cable-Heater Electric ENGINE OIL HEATER

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Washer-Seal (If equipped) ENGINE OIL HEATER

1шт.
