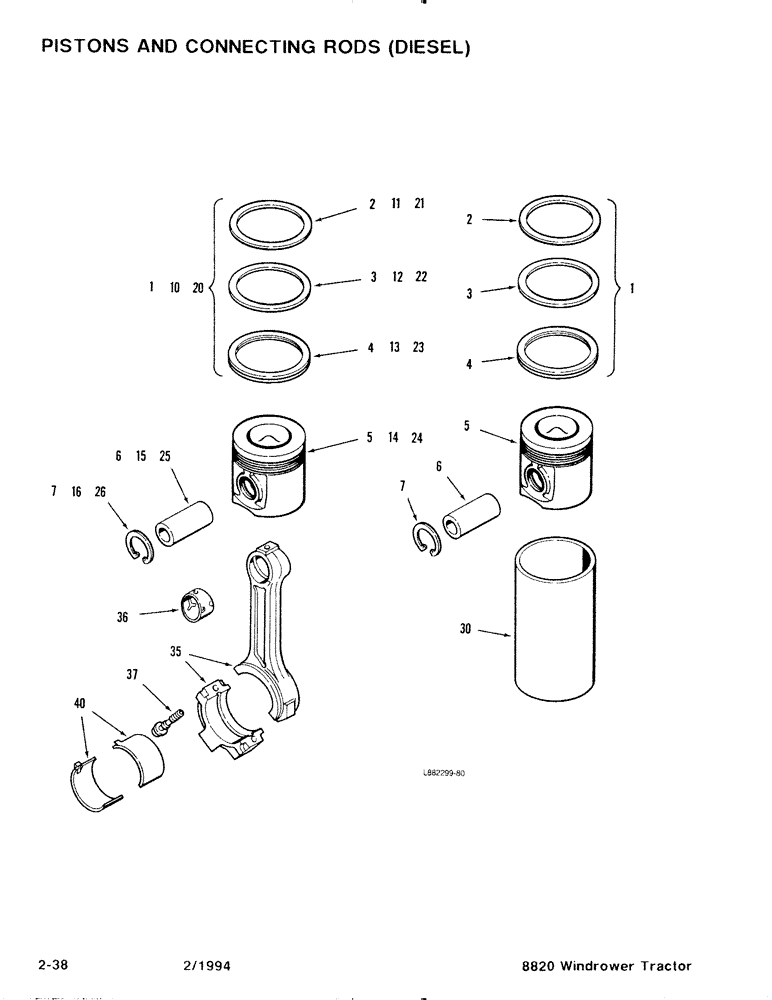

Запчасти Case IH 8820 (2-38) - PISTONS AND CONNECTING RODS, DIESEL (02) - ENGINE

A77410

PISTON

Kit - Engine, Standard

4шт.

1

A77401

PISTON RING SET

Ring Kit - Piston, Standard

1шт.

2

NSS

NOT SOLD SEPARAT

Ring - Compression, Top

1шт.

3

NSS

NOT SOLD SEPARAT

Ring - Compression, Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Ring - Oil, Bottom

1шт.

5

NSS

NOT SOLD SEPARAT

Piston - Engine, Standard (Stamped 6223)

1шт.

6

J901793

PISTON PIN

PIN, PISTON

1шт.

7

J901706

RING

- Retainer, Pin

2шт.

A77411

PISTON

Kit - Engine, 0.5 mm Oversize

4шт.

10

A77463

PISTON RING SET

Ring Kit - Engine, 0.5 mm Oversize

1шт.

11

NSS

NOT SOLD SEPARAT

Ring - Compression, Top

1шт.

12

NSS

NOT SOLD SEPARAT

Ring - Compression, Middle

1шт.

13

NSS

NOT SOLD SEPARAT

Ring - Oil, Bottom

1шт.

14

NSS

NOT SOLD SEPARAT

Piston - Engine, 0.5 mm Oversize (Stamped 6209)

1шт.

15

J901793

PISTON PIN

PIN, PISTON

1шт.

16

J901706

RING

- Retainer, Pin

2шт.

A77412

PISTON

Kit - Engine, 1.0 mm Oversize

4шт.

20

A77464

PISTON RING SET

Ring Kit - Engine, 1.0 mm Oversize

1шт.

21

NSS

NOT SOLD SEPARAT

Ring - Compression, Top

1шт.

22

NSS

NOT SOLD SEPARAT

Ring - Compression, Middle

1шт.

23

NSS

NOT SOLD SEPARAT

Ring - Oil, Bottom

1шт.

24

NSS

NOT SOLD SEPARAT

Piston - Engine, 1.0 mm Oversize (Stamped 6208)

1шт.

25

J901793

PISTON PIN

PIN, PISTON

1шт.

26

J901706

RING

- Retainer, Pin

2шт.

30

A904166

Liner - Piston (Use only in engine block repair) (When liner is installed, use only A77410 Piston Kit)

1шт.

35

J901569

ROD, CONNECTING

Rod Assembly - Connecting, New CONNECTING RODS

4шт.

35

JR901569

ROD

Assembly - Connecting, Remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - Connecting Rod (Use this number to return connecting rod for credit)

4шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

35

84145405R

REMAN-CONNECTING ROD

8820, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

36

NSS

NOT SOLD SEPARAT

Bushing - Rod To Piston Pin (Order J901569) CONNECTING RODS

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Bolt - Hex Special, MJ11 x 1 x 26 mm CONNECTING RODS

2шт.

40

A77465

BEARING SET

Bearing Kit - Connection Rod Set, Upper And Lower, Standard CONNECTING RODS

4шт.

A77466

BEARING SET

Bearing Kit - Connection Rod Set, Upper And Lower, 0.25 mm Oversize CONNECTING RODS

4шт.

A77467

BEARING LINER

Bearing Kit - Connection Rod Set, Upper and Lower, 0.5 mm Oversize CONNECTING RODS

4шт.

A77468

BEARING SET

Bearing Kit - Connection Rod Set, Upper and Lower, 0.75 mm Oversize CONNECTING RODS

4шт.

A77469

BEARING SET

Bearing Kit - Connection Rod Set, Upper and Lower, 1.0 mm Oversize CONNECTING RODS

4шт.
