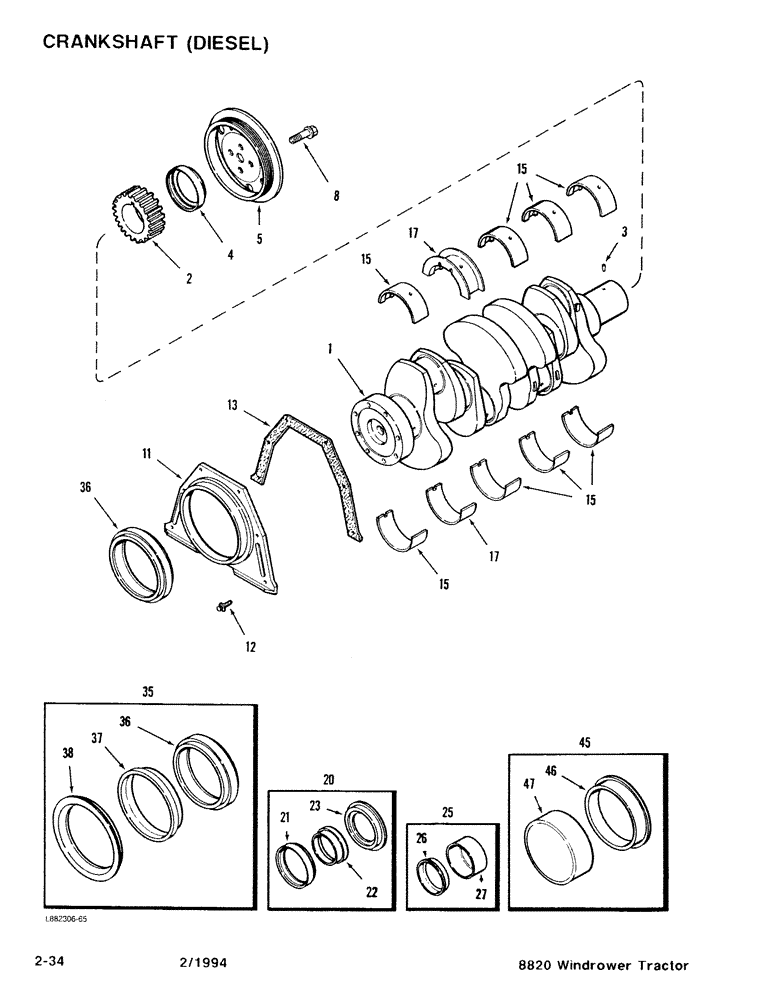

Запчасти Case IH 8820 (2-34) - CRANKSHAFT, DIESEL (02) - ENGINE

JR918323

CRANKSHAFT

- Remanufactured, (North America only)

1шт.

J929036R

REMAN-CRANKSHAFT

8820, Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC918323

CORE-CRANKSHAFT

Return Number - Crankshaft (Use this part number to return crankshaft for credit)

1шт.

1

J918323

CRANKSHAFT

Assembly - Engine (New)

1шт.

J929036R

REMAN-CRANKSHAFT

8820, Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

Gear - Crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - Oil, Crankshaft Front (Order Ref 20)

1шт.

5

J914494

PULLEY,181.25mm OD

- Crankshaft

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- Hex Flange Head, M12 x 36 mm

4шт.

11

J921043

REAR COVER

Retainer - Rear Seal

1шт.

12

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

J914386

GASKET

- Seal Retainer

1шт.

15

A77405

CRANKSHAFT BEARING

Bearing Kit - Main (Set) Upper and Lower, Standard

4шт.

A77472

BEARING SET

Bearing Kit - Main (Set) Upper and Lower, 0.25 mm Oversize

4шт.

A77474

BEARING SET

Bearing Kit - Main (Set) Upper and Lower, 0.5 mm Oversize

4шт.

A77476

BEARING SET

Bearing Kit - Main (Set) Upper and Lower, 0.75 mm Oversize

4шт.

A77478

BEARING SET

Bearing Kit - Main (Set) Upper and Lower, 1.0 mm Oversize

4шт.

17

A77406

CRANKSHAFT BEARING

Bearing Kit - Thrust, Main (Set) Upper and Lower, Standard

1шт.

A77473

THRUST BEARING

Bearing Kit - Thrust, Main (Set) Upper and Lower 0.25 mm Oversize

1шт.

A77475

THRUST BEARING

Bearing Kit - Thrust, Main (Set) Upper and Lower 0.5 mm Oversize

1шт.

A77477

THRUST BEARING

Bearing Kit - Thrust, Main (Set) Upper and Lower 0.75 mm Oversize

1шт.

A77479

THRUST BEARING

Bearing Kit - Thrust, Main (Set) Upper and Lower 1.0 mm Oversize

1шт.

20

J904353

GASKET KIT

Seal Kit - Oil, Crankshaft Front

1шт.

21

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

22

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

23

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

25

J906080

PACKAGE, REPAIR

Wear Sleeve Kit - Crankshaft Front

1шт.

26

NSS

NOT SOLD SEPARAT

Sleeve - Wear

1шт.

27

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

35

J909410

GASKET KIT

Seal Kit - Oil, Crankshaft Rear

1шт.

36

NSS

NOT SOLD SEPARAT

Seal - Oil, Rear

1шт.

37

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

38

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

45

J906081

SLEEVE

Wear Sleeve Kit - Crankshaft Rear

1шт.

46

NSS

NOT SOLD SEPARAT

Sleeve - Wear

1шт.

47

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.
