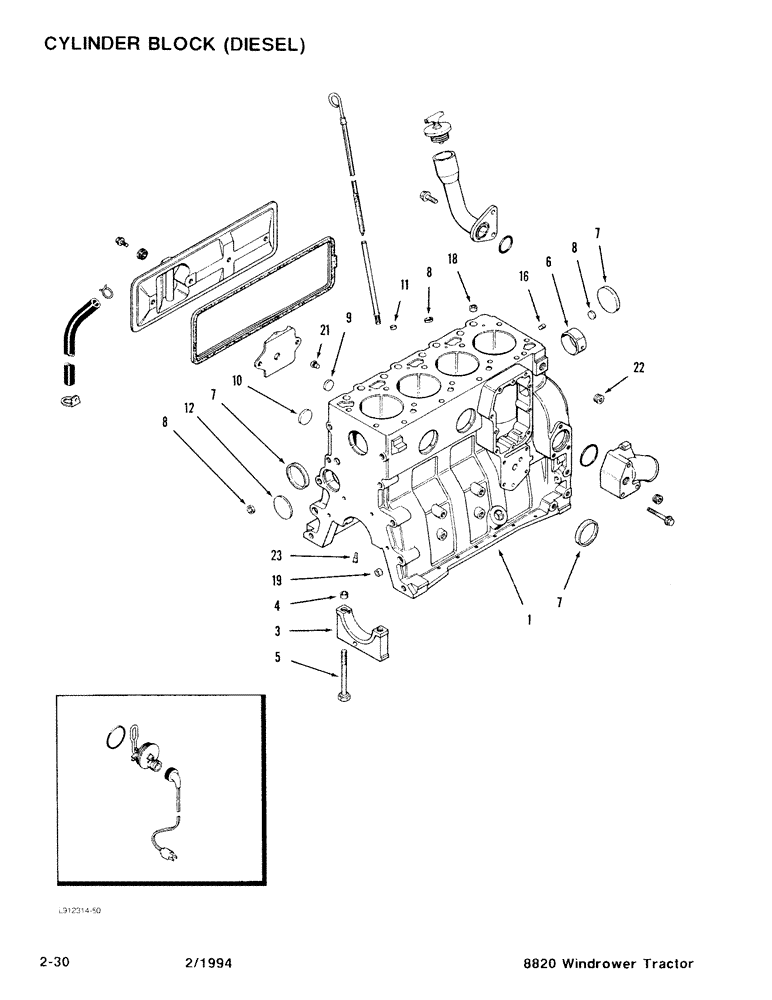

Запчасти Case IH 8820 (2-30) - CYLINDER BLOCK, DIESEL (02) - ENGINE

NSS

NOT SOLD SEPARAT

Engine Assembly - 4T-390 Standard, Complete, New (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe) (Order basic engine number 1989091C2)

1шт.

1989091C2

BASIC ENGINE

1шт.

Engine Assembly - Basic, New (Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel, and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger)

1шт.

1989091C3R

REMAN-BASIC ENGINE

Engine Assembly - Basic, Reman (Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel, and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger)

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR933238

REMAN-SHORT ENGINE

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

AR77758

BLOCK ASSY.

Block Assembly - Short, Engine, Remanufactured

1шт.

AC77758

CORE-ENGINE

Return Part Number - Short Block Core (Use this number to return short block core for credit)

1шт.

A77758

SKELETON ENGINE

Block Assembly - Short, Engine (New) (Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings) (Order short block and J920399 kit)

1шт.

1

A77757

CRANKCASE

Block Assembly - Stripped, Engine (Order Short Block and J920399 Hardware Kit)

1шт.

3

J900967

BEARING CAP

Cap - Main Bearing

5шт.

4

J900068

BEARING WASHER

Ring - Dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Bolt - Bearing Cap, Special

10шт.

6

REF

INSTRUCTION

Bushing, Camshaft Front

1шт.

7

A77782

PLUG

Plug - Expansion

4шт.

8

J900956

PLUG

Plug - Expansion, 18 mm OD

3шт.

9

A77539

PLUG

Plug - Expansion, 26 mm

2шт.

J920399

PACKAGE, REPAIR

Kit - Block Hardware

1шт.

10

J900958

PLUG

Plug - Expansion, 32 mm OD

2шт.

11

J900955

PLUG

Plug - Expansion, 10 mm OD

1шт.

12

J900687

PLUG

Plug - Expansion, (Welch) 60 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

Pin - Dowel, 16 mm Long

2шт.

18

J902343

DOWEL

Ring - Dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

Ring - Dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

Plug - Hex Socket Pipe, 1/8 - 27 IN PT

2шт.

22

J919002

NOZZLE CAP

Nozzle - Piston Cooling

4шт.

23

A77429

PLUG

Plug - Hex Socket Pipe, 1/4 - 18 IN PT

1шт.
