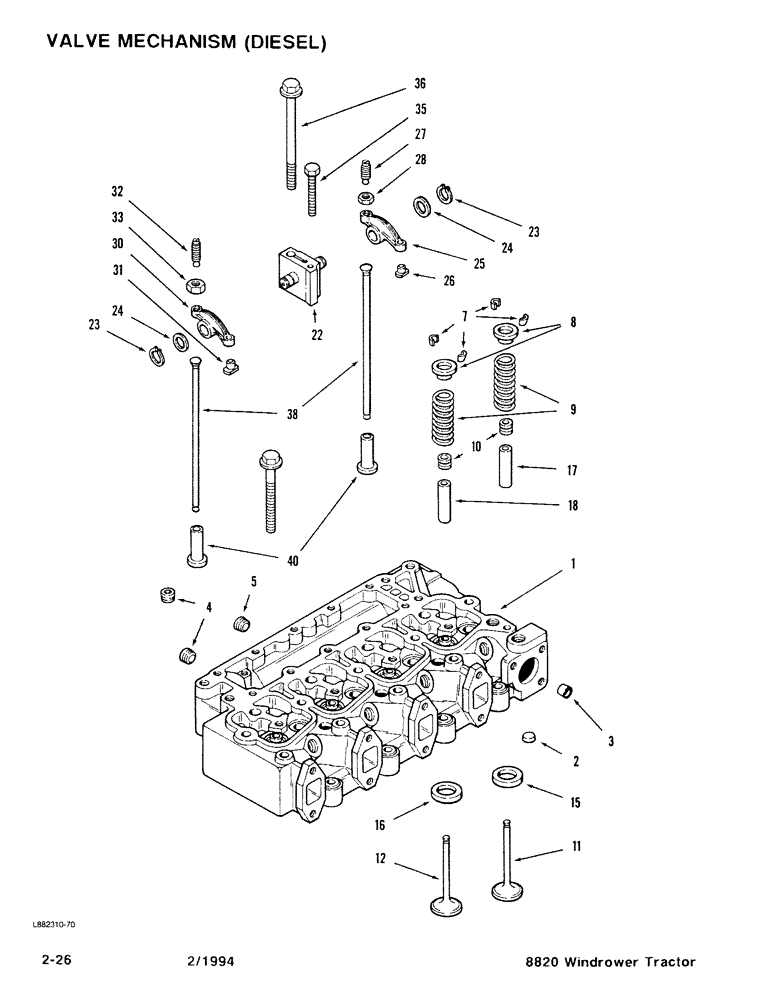

Запчасти Case IH 8820 (2-26) - VALVE MECHANISM, DIESEL (02) - ENGINE

JR910275

HEAD (CYLINDER)

Head - Cylinder, Remanufactured (North America only)

1шт.

JC905864

HEAD

Return Number - Cylinder Head Core (Use this number to return cylinder head core for credit)

1шт.

JC910275

CORE-CYLINDER HEAD

Return Number - Cylinder Head Core (Use this number to return cylinder head core for credit)

1шт.

1

J910275

HEAD (CYLINDER)

Head Assembly - Cylinder, New (with Valves)

1шт.

J909947

HEAD (CYLINDER)

Head Assembly - Cylinder, (without Valves)

1шт.

2

J902606

PLUG

- Expansion (21 mm) OD

3шт.

3

J909403

BUSHING

Sleeve - Cylinder Head

1шт.

4

A77429

PLUG

- Hex Socket Pipe, 1/4 - 18 PT

5шт.

5

J906619

PLUG,1/8" - 27

- Hex Socket Pipe, 1/8 - 27 PT

2шт.

7

CASJ900250

RETAINER

Keeper - Valve

16шт.

8

J900299

RETAINER

- Valve Spring

8шт.

9

J900276

VALVE SPRING

Spring - Valve

8шт.

10

J901097

SEAL

- Valve

8шт.

11

J901117

VALVE

- Intake

4шт.

12

J901607

VALVE

- Exhaust

4шт.

15

J906854

SEAT, VALVE

Seat - Insert, Intake Valve (Service Repair only)

4шт.

16

J904105

SEAT, VALVE

Seat - Insert, Exhaust Valve (Service Repair only)

4шт.

17

J904408

GUIDE

- Valve, Intake (Service Repair only)

4шт.

18

J904409

GUIDE

- Valve, Exhaust (Service Repair only)

4шт.

20

J903938

BOLT

- Hex Flange Head, M12 x 1.75 x 70 mm

4шт.

20

J903939

BOLT

- Hex Flange Head, M12 x 1.75 x 120 mm

10шт.

22

J910814

SUPPORT

and Shaft Assembly - Rocker Arm

4шт.

23

J900242

SNAP RING

Ring - Retaining, Rocker Arm

8шт.

24

J900245

WASHER

- Thrust, Rocker Arm

8шт.

25

J910811

ROCKER

Arm Assembly - Rocker, Intake

4шт.

26

NSS

NOT SOLD SEPARAT

Insert - Rocker Arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Screw - Slotted Set Adjusting, 3/8 IN NF x 40 mm

1шт.

28

A77558

JAM NUT

- Hex Jam, 3/8 IN NF

1шт.

30

J910810

ROCKER

Arm Assembly - Rocker, Exhaust

4шт.

31

NSS

NOT SOLD SEPARAT

Insert, Rocker Arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Screw - Slotted Set Adjusting, 3/8 IN NF x 40 mm

1шт.

33

25-176

NUT,3/8"-24, G5, Hvy

- Hex Heavy, 3/8 IN NF

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- Hex, M8 x 1.25 x 75 mm

4шт.

36

J903940

BOLT

- Hex Flange Head, M12 x 1.75 x 180 mm

4шт.

38

J904679

PUSH ROD

Rod - Push, Rocker Arm

8шт.

40

J907240

TAPPET

- Valve, Push Rod

8шт.
