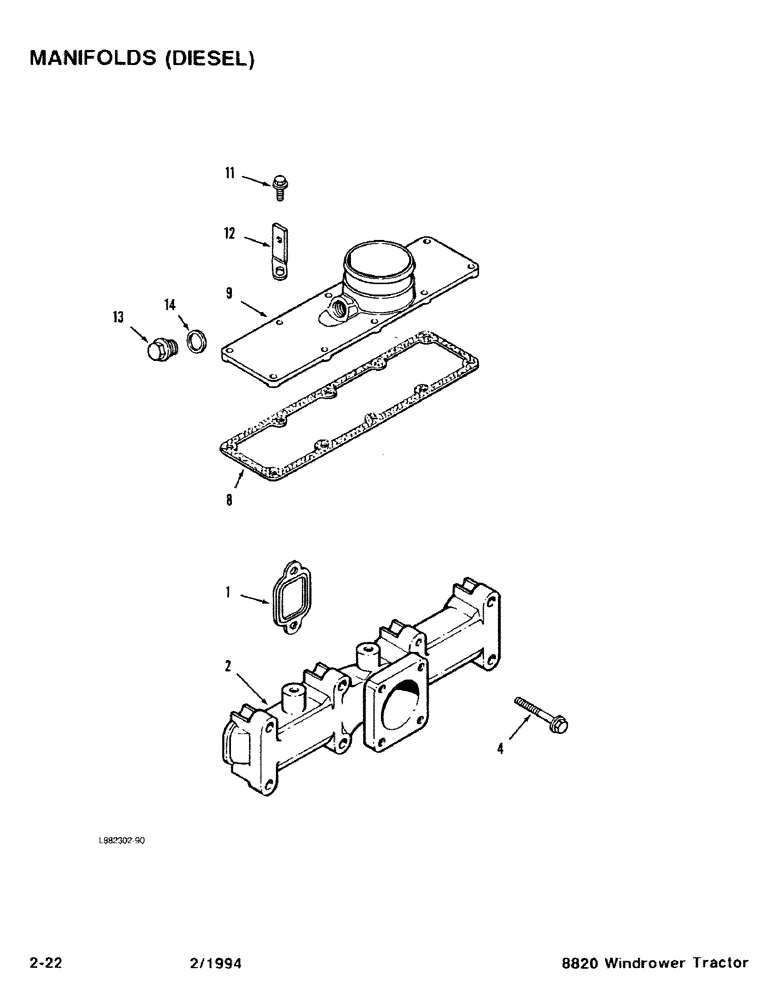

Запчасти Case IH 8820 (2-22) - INTAKE AND EXHAUST MANIFOLDS, DIESEL (02) - ENGINE

1

J905443

MANIFOLD GASKET

- Exhaust Manifold

4шт.

2

J902274

MANIFOLD

- Exhaust

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- Hex Flange, 10 mm - 1.50 x 65 mm, Grade 10.9

8шт.

8

J914028

GASKET

- Intake Manifold

1шт.

9

NSS

NOT SOLD SEPARAT

Manifold - Intake (Order A77415 kit) INTAKE MANIFOLD

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake manifold Hex Flg Hd, M8 x 1.25 x 25

10шт.

12

NSS

NOT SOLD SEPARAT

Brace - Fuel Tube INTAKE MANIFOLD

1шт.

13

J907185

PLUG

Assembly - Manifold INTAKE MANIFOLD

1шт.

14

J906773

WASHER

- Plug Sealing INTAKE MANIFOLD

1шт.

A77415

COVER

Manifold Kit - Intake (Includes Ref. 9, 13 and 14) INTAKE MANIFOLD

1шт.
