Запчасти Case IH 8820 (2-20) - FRONT GEAR COVER, DIESEL (02) - ENGINE

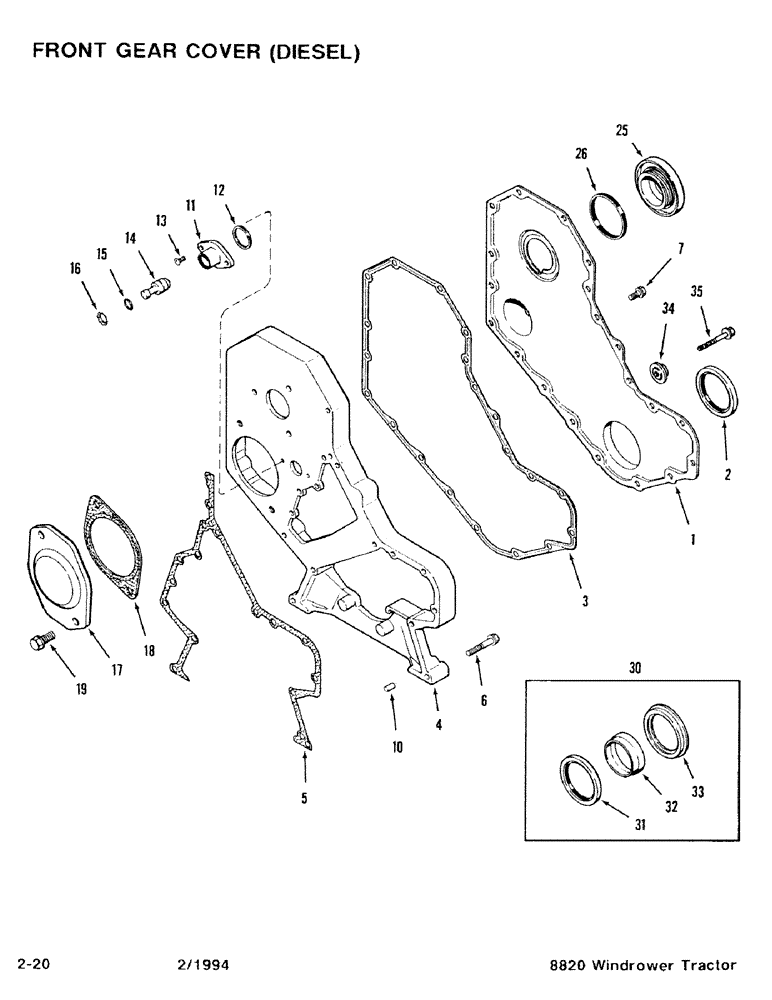

Схема запчастей Case IH 8820 - (2-20) - FRONT GEAR COVER, DIESEL (02) - ENGINE
16
19
3
7
10
30
18
4
2
34
5
35
33
15
17
1
13
25
11
12
6
14
32
31
26

Артикул

Название

Примечание

Количество

1

J903794

COVER

- Gear, Front

1шт.

2

NSS

NOT SOLD SEPARAT

Seal - Oil, Crankshaft Front (Order Ref 30)

1шт.

3

J914385

GASKET,1.02mm Thk

- Front Cover

1шт.

4

J920518

HOUSING

- Timing Gear

1шт.

5

J916131

GASKET

- Gear Housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- Heavy Hex Flange, 8 - 1.25 x 50 mm

11шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- Heavy Hex Flange, 8 mm - 1.25 x 16 mm

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

- Dowel, Locating, 16 mm

2шт.

11

J919683

HOUSING

- Timing Pin

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, Rectangular

1шт.

13

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

- Timing

1шт.

15

J913994

O-RING

- Sealing

1шт.

16

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

17

J914868

COVER

Plate - Accessory Drive Cover

1шт.

18

J919601

GASKET

- Cover Plate

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

25

J903463

PLUG,M63 x 5

- Tachometer Drive Hole

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- Cover

1шт.

30

J904353

GASKET KIT

Seal Kit - Oil, Crankshaft Front

1шт.

31

NSS

NOT SOLD SEPARAT

Seal - Oil, Crankshaft Front

1шт.

32

NSS

NOT SOLD SEPARAT

Tool - Seal Installation

1шт.

33

NSS

NOT SOLD SEPARAT

Tool - Seal Installation

1шт.

34

J912772

RETAINER

- Bolt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

Выбрано товаров: 25
