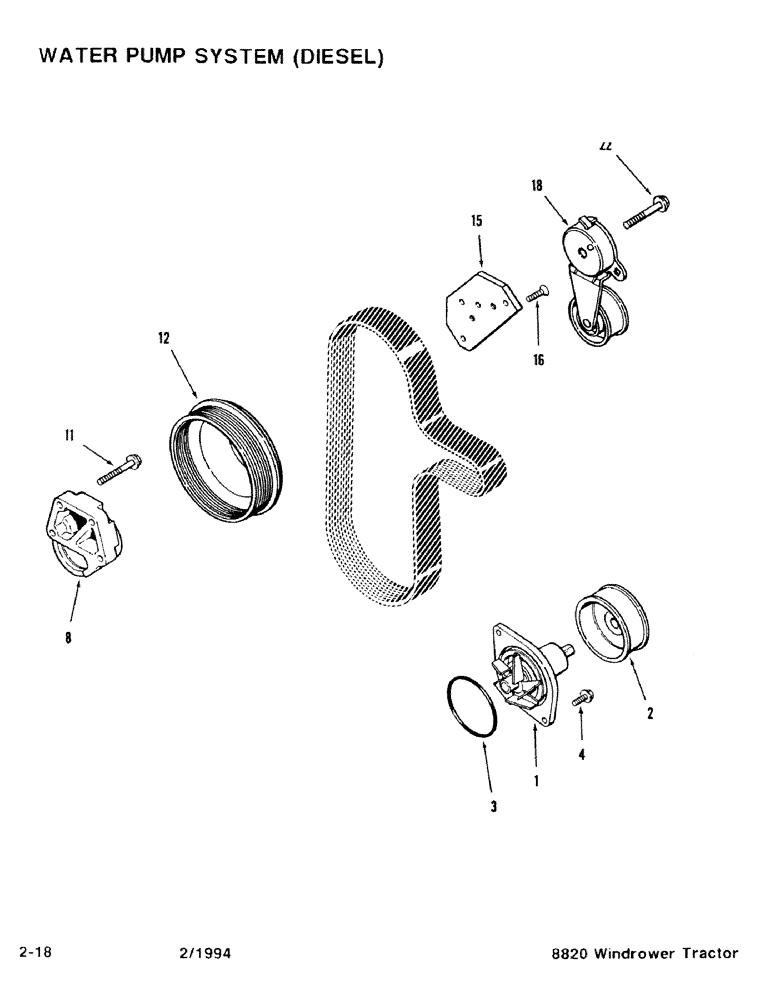

Запчасти Case IH 8820 (2-18) - WATER PUMP SYSTEM, DIESEL (02) - ENGINE

AR77703

PUMP

- Water, Remanufactured

1шт.

J286278R

REMAN-WATER PUMP

8820

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

Return Number - Pump Core (Use this part number to return pump core for credit)

1шт.

A77703

PUMP, WATER

Pump Kit - Water

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

8820, Replaces P/N A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assembly - Water (Order A77703)

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley - Water Pump (Order A77703)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J911203

SUPPORT

Bracket Assembly - Fan

1шт.

11

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- Hex, M8 x 1.25 x 75 mm

4шт.

12

J914462

PULLEY,163mm OD

- Fan

1шт.

15

J919985

SUPPORT

Bracket - Belt Tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- Flat Head Cap, M8 x 25

2шт.

18

J914086

BELT TENSIONER

Tensioner Assembly - Belt

1шт.

22

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.
