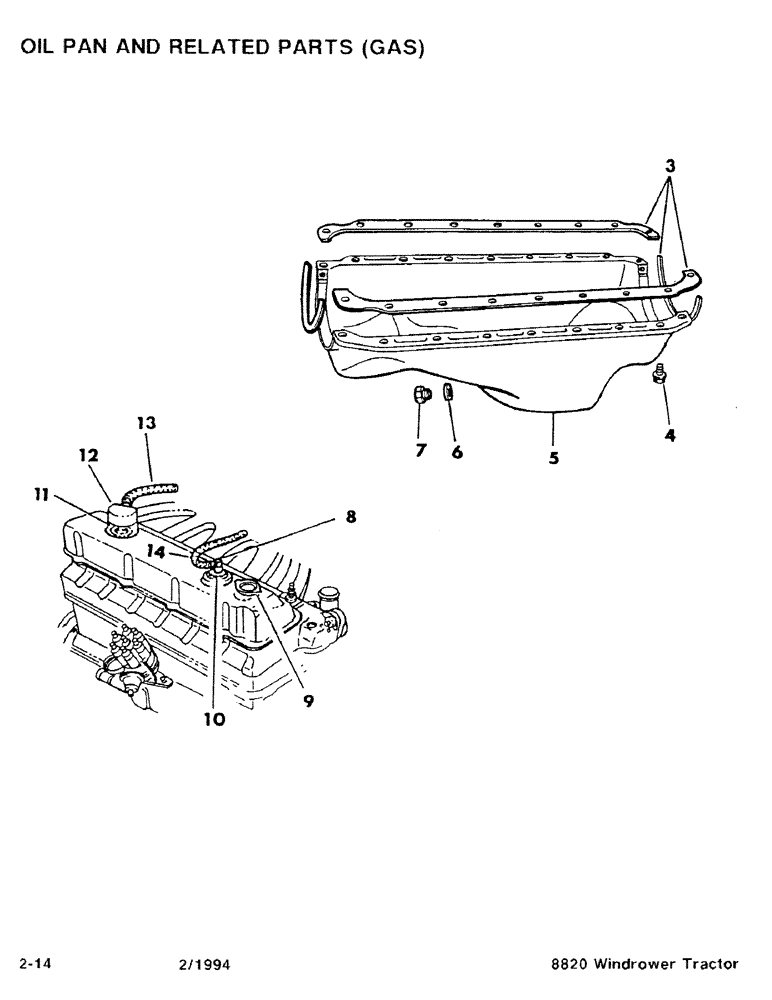

Запчасти Case IH 8820 (2-14) - OIL PAN AND RELATED PARTS, GAS (02) - ENGINE

3

81540C1

OIL PAN GASKET SET

Gasket Set - Oil Pan

1шт.

4

180074

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

Screw - Oil Pan Mounting, 5/16 x 9/16 IN

18шт.

181088

BOLT (SPREADER),Hex, 5/16" - 18 x 1", Gr 5

Screw - Oil Pan Mounting, 5/16 x 13/16 IN

5шт.

5

A189142

PAN

- Oil, Rear Sump

1шт.

6

830606C1

OIL PAN GASKET SET

- Drain plug, 1/2 IN

1шт.

7

445078

PLUG

Oil Drain, 1/2 IN

1шт.

8

830581C1

VALVE

- Crankcase Vent (PCV)

1шт.

9

830580C1

CAP

- Oil Filler, Cylinder Head Cover

1шт.

10

830579C1

GROMMET

- Crankcase Vent Valve (PCV)

1шт.

11

830578C1

GROMMET

- Crankcase Vent Air Cleaner

1шт.

12

Air Cleaner - Crankcase Vent

1шт.

13

Hose - Air Cleaner To Air Intake

1шт.

14

Hose - Crankcase Vent, Serial Range: Valve-Carburetor

1шт.
