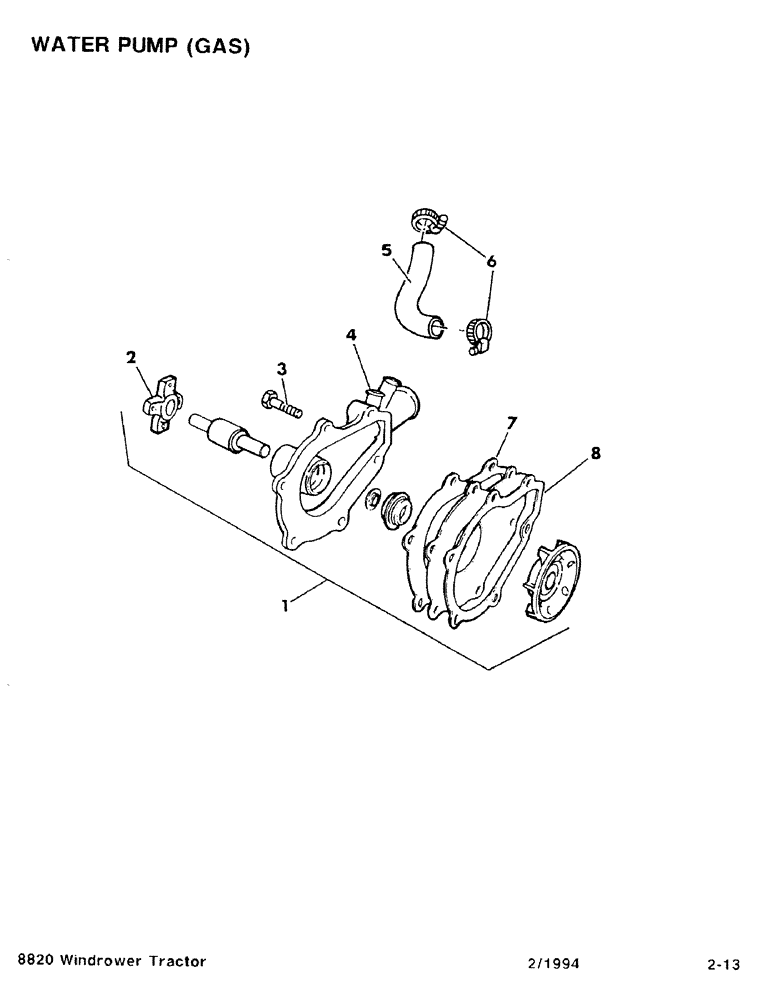

Запчасти Case IH 8820 (2-13) - WATER PUMP, GAS (02) - ENGINE

1

81489C1

PUMP

- Water

1шт.

2

81493C1

HUB

- Fan Pulley

1шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Screw - Water Pump, 3/8 x 1-1/4 IN

3шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

Screw - Water Pump, 3/8 x 1-5/8 IN

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

Screw - Water Pump, 3/8 x 1-1/8 IN

1шт.

4

81491C1

NIPPLE, LUBE

Nipple - By-pass, Water Pump

1шт.

5

995108R1

HOSE

- By-pass, Water Pump, 3-1/2 IN

1шт.

6

112700R1

HOSE CLAMP,#15, 15/16", Spring

Clamp - Hose

2шт.

7

830510C1

GASKET

- Water Pump Intermediate Plate

1шт.

8

81490C1

GASKET

- Water Pump Body

1шт.
