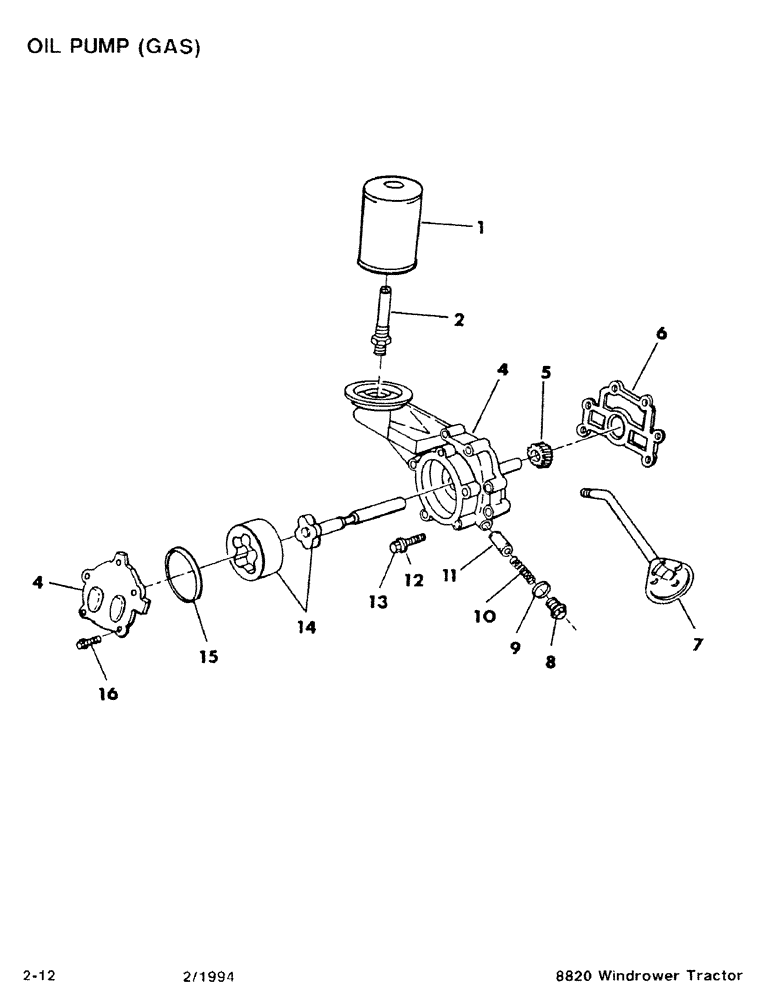

Запчасти Case IH 8820 (2-12) - OIL PUMP, GAS (02) - ENGINE

1

Filter - Oil

1шт.

2

Pipe - Stand, Oil Filter

1шт.

4

81533C1

PUMP

- Oil

1шт.

5

830596C1

GEAR

- Oil Pump Drive

1шт.

6

81535C1

GASKET

- Oil Pump Body

1шт.

7

81537C1

PIPE ASSY.

Strainer - Oil Pump Suction, Rear Sump

1шт.

8

830599C1

CAP

- Oil Pressure Relief Valve

1шт.

9

830600C1

GASKET

- Oil Pressure Relief Valve Cap

1шт.

10

830598C1

SPRING

- Oil Pressure Relief Valve

1шт.

11

830597C1

PLUNGER

- Oil Pressure Relief Valve

1шт.

12

81534C1

WASHER

- Oil Pump Screw

3шт.

13

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

Screw - Oil Pump Attaching. 5/16 x 1-1/2 IN

5шт.

14

81536C1

SHAFT ASSY.

Shaft and Rotor Package

1шт.

15

830593C1

GASKET

- Oil Pump Cover

1шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Oil Pump Cover Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.
