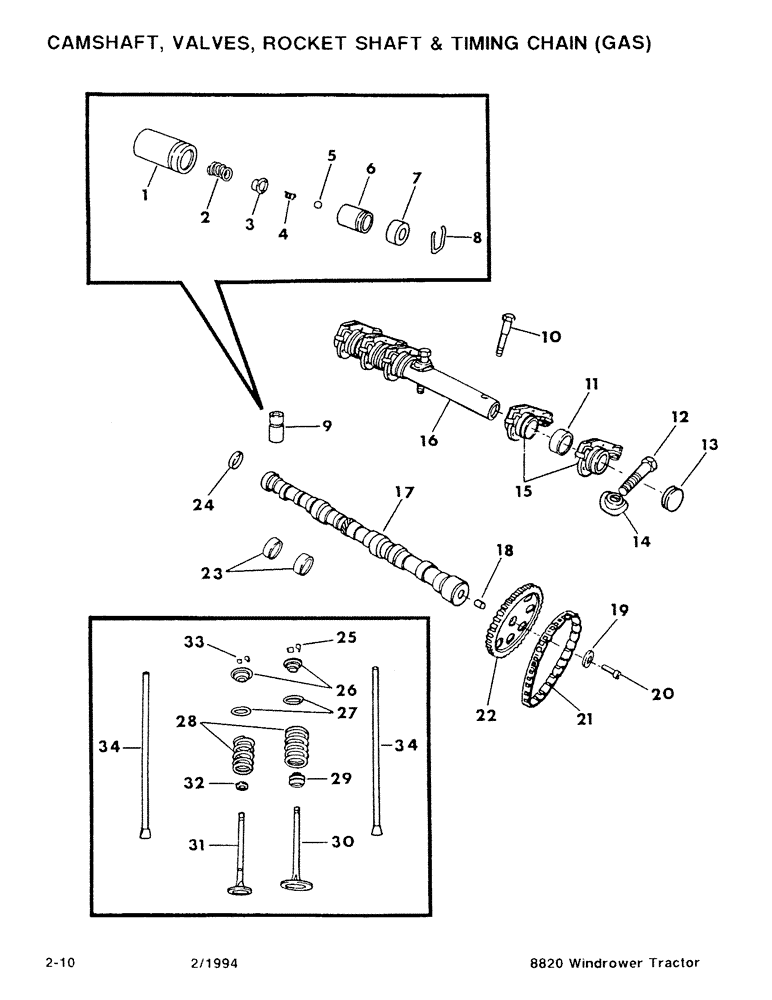

Запчасти Case IH 8820 (2-10) - CAMSHAFT, VALVES, ROCKET SHAFT & TIMING CHAIN, GAS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

BODY - tappet

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - check valve

1шт.

5

NSS

NOT SOLD SEPARAT

BALL - check

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - plunger

1шт.

8

NSS

NOT SOLD SEPARAT

CLIP - retainer plunger spring

1шт.

9

81519C1

TAPPET

- valve, includes items 1-8.

12шт.

10

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW - rocker Shaft retainer, 3/8 x 1-3/4 IN

6шт.

11

830566C1

SPACER

- Valve rocker.

6шт.

12

830570C1

SCREW,5/16" - 18 x 2.28"

- rocker shaft retainer 5/16 x 2-1/4 IN

1шт.

13

830571C1

PLUG

- valve rocker shaft

2шт.

14

830568C1

RETAINER

- rocker shaft, ends and intermediate

6шт.

830569C1

RETAINER

- rocker shaft, center

1шт.

15

81521C1

ARM

ROCKER - valve

12шт.

16

81522C1

SHAFT

- rocker

1шт.

17

81476C1

CAMSHAFT

1шт.

18

81477C1

DOWEL

- camshaft sprocket

1шт.

19

830489C1

WASHER

- sprocket retaining screw

1шт.

20

181140

SCREW,Hex, 7/16" - 14 x 1 3/8"

- sprocket retaining

1шт.

21

830490C1

CHAIN (AG)

CHAIN - timing

1шт.

22

830488C1

SPROCKET ASSY.

SPROCKET - camshaft

1шт.

23

81478C1

CAMSHAFT BEARING

- camshaft, No. 1

1шт.

81479C1

CAMSHAFT BEARING

- camshaft, No. 2

1шт.

81480C1

CAMSHAFT BEARING

- camshaft, No. 3

1шт.

830494C1

CAMSHAFT BEARING

- camshaft, No. 4

1шт.

24

830524C1

PLUG

- camshaft rear bearing

1шт.

25

81513C1

LOCK

- exhaust valve spring

12шт.

26

830552C1

RETAINER

- valve spring

12шт.

27

830554C1

WASHER

SPACER - valve spring

12шт.

28

830551C1

SPRING

- intake and exhaust valve

12шт.

29

81512C1

SHIELD

- oil, exhaust valve stem

6шт.

30

81508C1

VALVE

- exhaust, Std.

6шт.

81509C1

VALVE

- exhaust, .005 O/S

6шт.

81510C1

VALVE

- exhaust, .015 O/S

6шт.

81511C1

VALVE

- exhaust, .030 O/S

6шт.

31

830546C1

VALVE

- intake, Std.

6шт.

830547C1

VALVE

- intake, .005 O/S

6шт.

830548C1

VALVE

- intake, .015 O/S

6шт.

830549C1

VALVE

- intake, .030 O/S

6шт.

32

81507C1

SHIELD

SEAL - oil, intake valve stem

6шт.

33

830553C1

LOCK

- intake valve spring

12шт.

34

81520C1

ROD

- push, valve

12шт.
