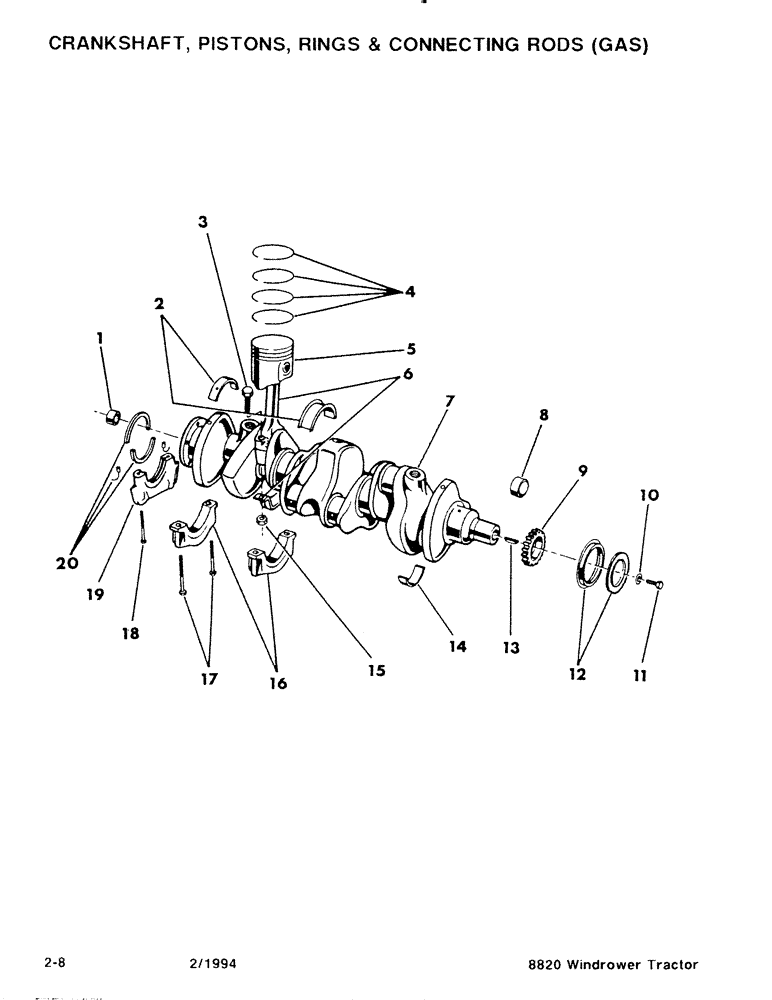

Запчасти Case IH 8820 (2-08) - CRANKSHAFT, PISTONS, RINGS & CONNECTING RODS, GAS (02) - ENGINE

1

830526C1

BUSHING

- crankshaft

1шт.

2

81500C1

PACKAGE

BEARING PACKAGE - crankshaft, No. 1, 2, 4 Std.

3шт.

81501C1

PACKAGE

BEARING PACKAGE - crankshaft, No. 1, 2, 4 .010 U/S

3шт.

81498C1

PACKAGE

BEARING PACKAGE - crankshaft, No. 3 Std.

1шт.

81499C1

PACKAGE

BEARING PACKAGE - crankshaft, No. 3 .010 U/S

1шт.

3

81482C1

BOLT

- connecting rod bearing cap

12шт.

4

81487C1

SET

RING SET - for 1 piston, Std. to .009 O/S

6шт.

81488C1

SET

RING SET - for 1 piston, .020 to .029 O/S

6шт.

5

830517C1

PISTON

- with pin, Std.

6шт.

81486C1

PISTON

- with pin, .020 O/S

6шт.

6

81481C1

ROD

- connecting with cap

6шт.

7

81496C1

CRANKSHAFT

1шт.

8

81487C1

SET

PLUG - crankshaft

1шт.

9

830527C1

SPROCKET ASSY.

SPROCKET - crankshaft

1шт.

10

830544C1

WASHER

- Crankshaft screw

1шт.

11

830543C1

BOLT,1.88"

SCREW - crankshaft

1шт.

12

830500C1

SEAL

- oil, chain case cover

1шт.

13

830528C1

KEY

- crankshaft sprocket

1шт.

14

81484C1

CRANKSHAFT BEARING

- connecting rod, Std.

6шт.

81485C1

CRANKSHAFT BEARING

- connecting rod, .010 U/S

6шт.

15

81483C1

NUT

- connecting rod cap bolt

12шт.

16

NSS

NOT SOLD SEPARAT

CAP - bearing, crankshaft, No. 1

1шт.

NSS

NOT SOLD SEPARAT

CAP - bearing, crankshaft, No. 2

1шт.

NSS

NOT SOLD SEPARAT

CAP - bearing, crankshaft, No. 3

1шт.

NSS

NOT SOLD SEPARAT

CAP - bearing, crankshaft, No. 4

1шт.

17

830538C1

SCREW,Cyl, 1/2" - 13 x 2.86"

- crankshaft bearing cap

8шт.

18

81504C1

SCREW

- crankshaft bearing seal

2шт.

19

830540C1

RETAINER

- crankshaft bearing oil seal

1шт.

20

81503C1

PACKAGE

OIL SEAL - crankshaft rear bearing

1шт.
