Запчасти Case IH 8820 (9-74) - DRAPER SHIFT CONTROL, HYDRAULICS, KIT, HK60603 IN CAB DRAPER SHIFT CONTROL KIT COMPLETE (09) - CHASSIS/ATTACHMENTS

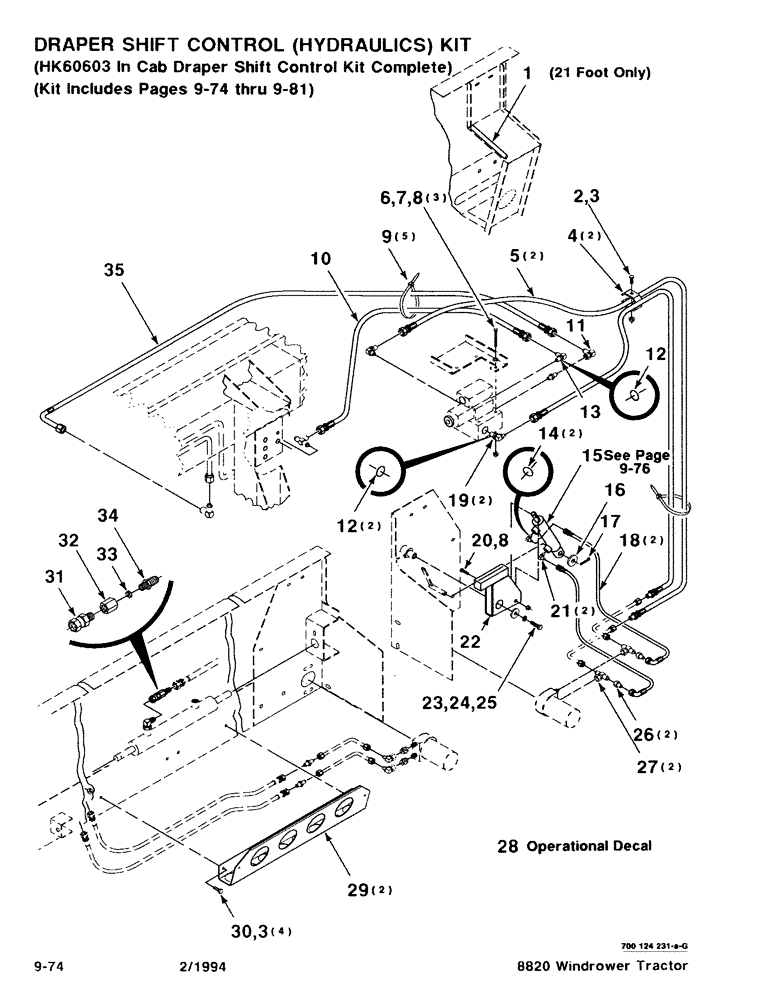

Схема запчастей Case IH 8820 - (9-74) - DRAPER SHIFT CONTROL, HYDRAULICS, KIT, HK60603 IN CAB DRAPER SHIFT CONTROL KIT COMPLETE (09) - CHASSIS/ATTACHMENTS
24
28
25
5
8
29
22
27
31
10
35
12
15
30
34
9
33
26
16
32
1
7
3
3
2
13
12
19
11
18
14
23
20
4
21
17
6

Артикул

Название

Примечание

Количество

HK60603

KIT

In Cab Draper Shift Control Kit Complete

1шт.

1

6842108

ORNAMENTAL STRIP

TRIM

1шт.

2

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 X 1-3/4 C

1шт.

3

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

5шт.

4

700102292

CLAMP

- LINE

2шт.

5

700711415

HYDRAULIC HOSE,16.00 mm ID x 1350.00 mm, SAE 100R1

16.00 mm ID x 1350.00 mm, SAE 100R1

2шт.

6

7701964

SCREW,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4-20 X 2-1/2 C

3шт.

7

705517

WASHER

1/4 HARDENED PLAIN WASHER

3шт.

8

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

9

722470

MOUNTING CLIP

TIE - CABLE

5шт.

10

700711414

HYDRAULIC HOSE,16.00 mm ID x 400.00 mm, SAE 100R1

16.00 mm ID x 400.00 mm, SAE 100R1

1шт.

11

700701624

ELBOW

90deg.

1шт.

12

7037781

O-RING

3шт.

13

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90deg. (Includes Item 12)

1шт.

14

738468

O-RING

2шт.

15

700711411

CYLINDER

- HYDRAULIC

1шт.

16

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

17

62224

PIN, SPLIT (COTTER)

3/16 X 1 COTTER PIN

1шт.

18

700711417

HOSE

- HYDRAULIC

2шт.

19

700711768

FITTING

3/4 FITTING - SWIVEL (Includes Item 12)

2шт.

20

7703473

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1/4-20 X 1-1/4 C

1шт.

21

7746555

ELBOW

- 90deg. (Includes Item 14)

2шт.

22

700124235

LATCH

WA

1шт.

23

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

1шт.

24

705038

CONTROL VALVE

3/8"

1шт.

25

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

1шт.

26

700711771

REDUCER

- INTERNAL

2шт.

27

700711769

TEE

- SWIVEL

2шт.

28

700711593

DECAL

- NOTICE

1шт.

29

700124234

BRACKET

- HOSE

2шт.

30

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 X 1 C

4шт.

31

700709216

ADAPTER

- SWIVEL

1шт.

32

700120630

COUPLING

- SPECIAL, PLATED

1шт.

33

700713611

ORIFICE

PLATE - ORIFICE

1шт.

34

846634

COUPLING, BREAK AWAY

CONNECTOR - FLARED, O-RING

1шт.

35

700711413

HOSE

- HYDRAULIC

1шт.

Выбрано товаров: 36
