(9-73) - RADIO MOUNTING KIT, ZVX SERIES RADIOS, SERIAL NUMBER CFH0049524 AND & LATER

Запчасти Case IH 8820 (9-73) - RADIO MOUNTING KIT, ZVX SERIES RADIOS, SERIAL NUMBER CFH0049524 AND & LATER (09) - CHASSIS/ATTACHMENTS

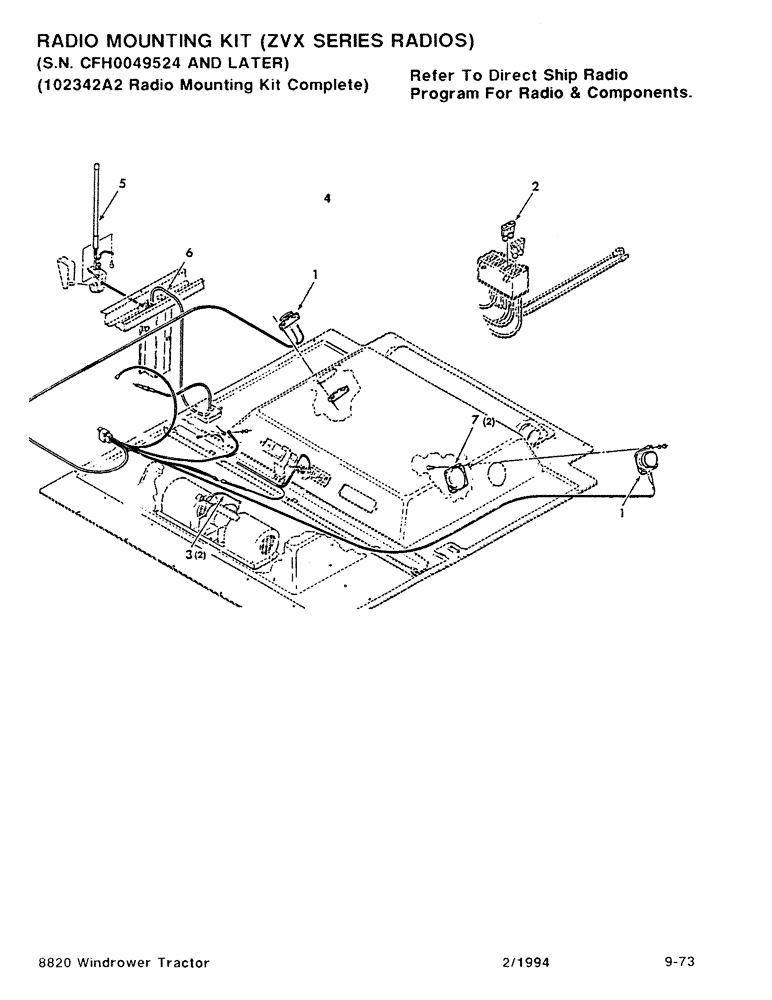

Схема запчастей Case IH 8820 - (9-73) - RADIO MOUNTING KIT, ZVX SERIES RADIOS, SERIAL NUMBER CFH0049524 AND & LATER (09) - CHASSIS/ATTACHMENTS
4
1
5
1
6
3
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

102342A2

MOUNTING PARTS

Radio Mounting Kit Complete

1шт.

1

CAS1701341

SPEAKER

2шт.

2

700705710

FUSE

- Blade, 3-Amp

1шт.

3

700705709

SUPPRESSOR

Noise Suppressor

2шт.

4

700712905

WASHER

Hardware Package

1шт.

5

700711763

ANTENNA

1шт.

6

700704883

ELECTRIC CABLE

Cable

1шт.

7

700710091

GRILLE

Grill - Speaker

2шт.
