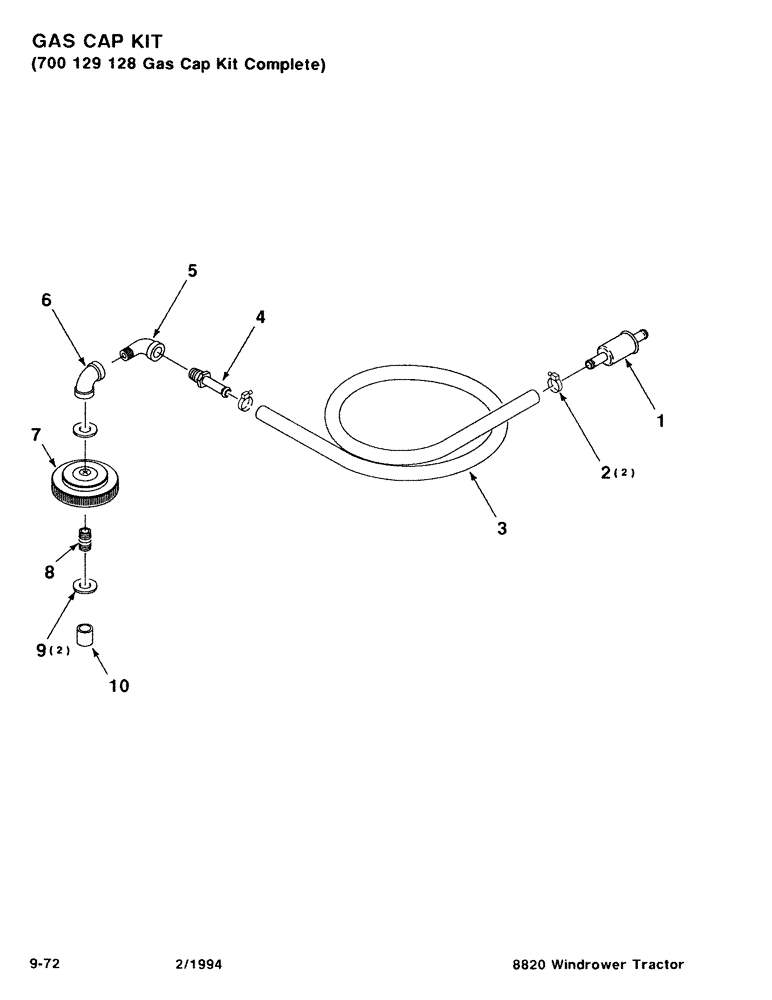

Запчасти Case IH 8820 (9-72) - GAS CAP KIT, 700129128 GAS CAP KIT COMPLETE (09) - CHASSIS/ATTACHMENTS

700129128

KIT

Gas Cap Kit - Complete

1шт.

1

7723992

SWIVEL CONNECTION

FILTER - FUEL

2шт.

2

7741119

HOSE CLAMP

- HOSE

4шт.

3

700115723

FUEL HOSE,0.31" ID x 88.58", SAE 30R9

FLEXIBLE HOSE , Fuel 0.31" ID x 88.58", SAE 30R9

2шт.

4

7746662

INSERT

HOSE END - FUEL

2шт.

5

7846231

ELBOW

STREET ELL

2шт.

6

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90deg. PIPE,Pin, Clevis, 1/4

2шт.

7

700129129

CAP

- GAS TANK

2шт.

8

21-101

HOSE

NIPPLE - CLOSE, 1/8-27 NPT

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

10

221-326

COUPLING,Pipe, 1/8" NPT

- PIPE,NIPPLE

2шт.
