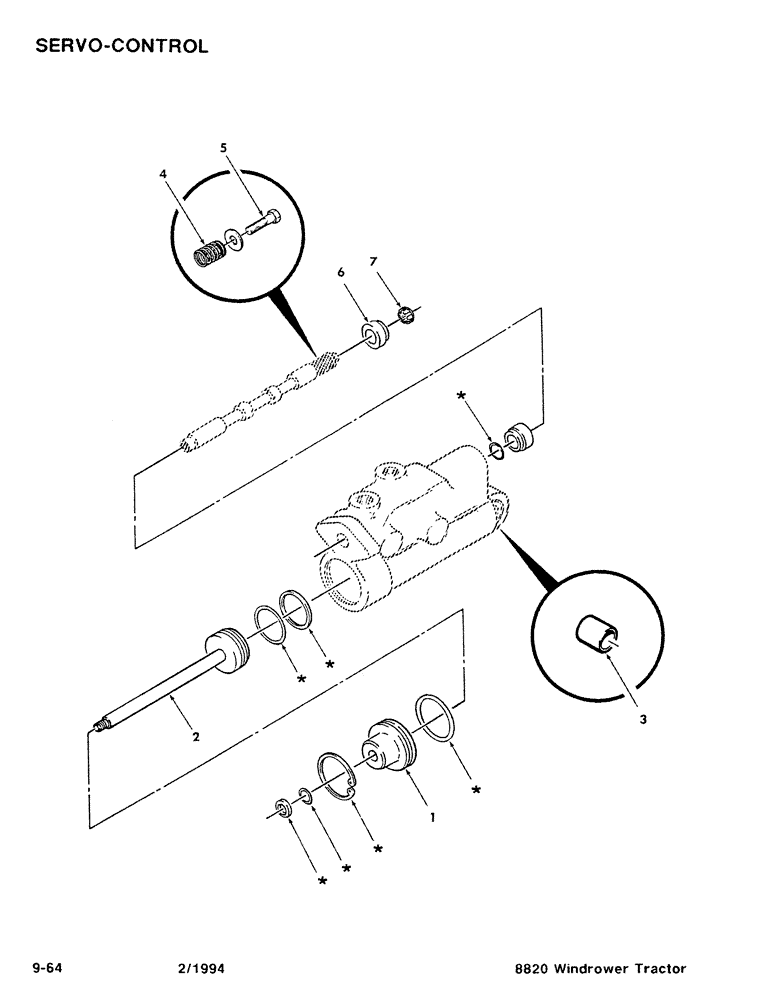

Запчасти Case IH 8820 (9-64) - SERVO, CONTROL (09) - CHASSIS/ATTACHMENTS

700710787

SERVO-CONTROL

Complete

1шт.

1

700711029

BEARING

1шт.

2

700711030

PISTON

and Rod

1шт.

3

700712103

GROOVED BUSHING

Pivot Bushing

1шт.

4

700712104

SPRING

1шт.

5

738344

SCREW

Spool Screw

1шт.

6

8730541

CAP

1шт.

7

8730517

BUTTON

- Insert

1шт.

700711031

SEAL KIT

Seal and O-Ring Repair Kit Includes: Ref. marked with asterisks on the art.

1шт.
