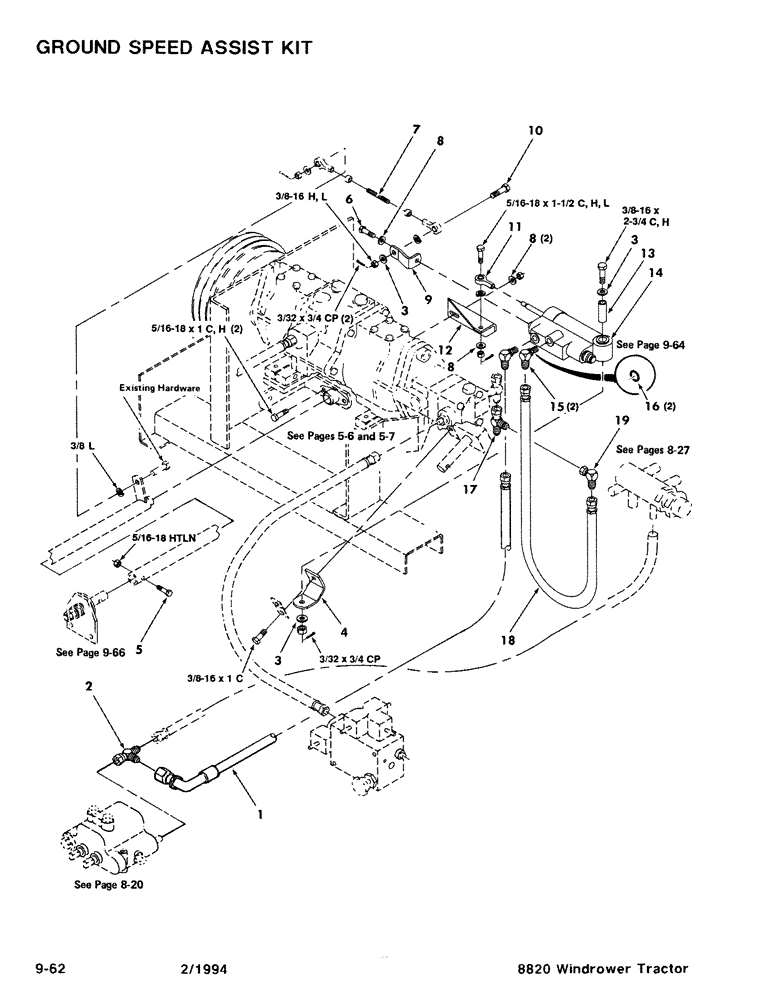

Запчасти Case IH 8820 (9-62) - GROUND SPEED ASSIST KIT (09) - CHASSIS/ATTACHMENTS

HK60590

Ground Speed Assist Kit Complete

1шт.

1

700711970

HOSE

- Hydraulic

1шт.

2

7846850

TEE

Swivel Tee

1шт.

3

705533

WASHER

3/8 Hardened Plain Washer

3шт.

4

700121184

SUPPORT

- Mounting

1шт.

5

71019

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 x 1-1/4 HSHCS

1шт.

6

7773914

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 x 3/4 C

1шт.

7

700121177

ROD

1шт.

8

705525

WASHER

5/16 Hardened Plain Washer

4шт.

9

700121183

BRACKET

Angle

1шт.

10

700111557

SCREW

- Special

1шт.

11

700710788

TRACK ROD END

Bearing - End, Rod

1шт.

12

700121185

ANGLE

- Support

1шт.

13

700121187

BUSHING

1шт.

14

700710787

SERVO-CONTROL

Servo - Control

1шт.

15

700707498

ELBOW

- 90deg., with O-Ring

2шт.

16

7040397

O-RING

2шт.

17

8746448

TEE

Fitting - Hydraulic, T-Adapter

1шт.

18

700710789

HYDRAULIC HOSE,9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

1шт.

19

700707491

ELBOW

- 90deg.

1шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 C

2шт.

700121188

SCREW

5/16-18 x 1-1/2 C

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

700121189

SCREW

3/8-16 x 2-3/4 C

1шт.

704163

LOCK NUT

5/16-18 HTLN

1шт.

704015

NUT,5/16"-18, G5

5/16-18 H

3шт.

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

705020

LOCK WASHER

5/16"

1шт.

705038

CONTROL VALVE

3/8"

2шт.
