Запчасти Case IH 8820 (9-58) - TAIL WHEEL ASSEMBLY (09) - CHASSIS/ATTACHMENTS

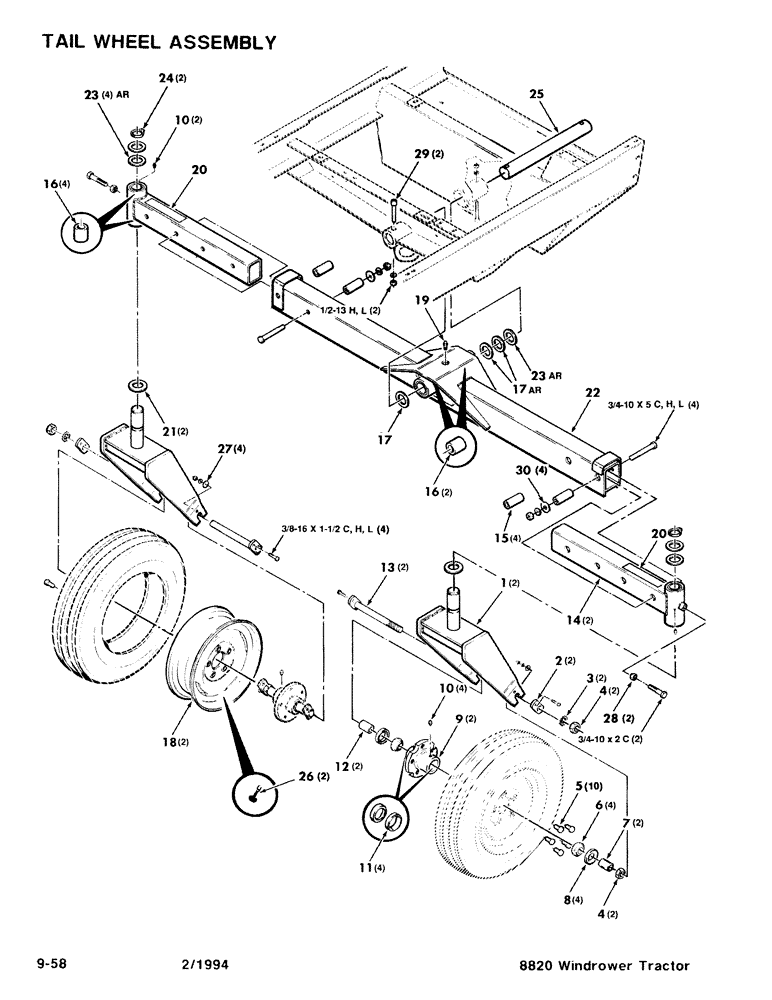

Схема запчастей Case IH 8820 - (9-58) - TAIL WHEEL ASSEMBLY (09) - CHASSIS/ATTACHMENTS
2
19
20
28
1
10
22
23
13
16
27
10
18
15
14
21
4
7
25
11
17
9
23
12
30
8
17
16
3
24
5
26
29
6
4
20

Артикул

Название

Примечание

Количество

1

700124199

CLEVIS

Fork

2шт.

2

305581

CLIP

2шт.

3

705103

LOCK WASHER

1" External Tooth Lock Washer

2шт.

4

704049

NUT

1/14 Hex Jam Nut

2шт.

5

26328

BOLT,9/16" - 18 x 1.594", Grade 5

9/16-18 x 1-1/8 Wheel Bolt

10шт.

6

D29266

ROLLER BEARING,1" ID x 0.58"

Bearing Cone

4шт.

7

6177133

SPACER

2шт.

8

744888

SEAL

- Grease

4шт.

9

6494777

HUB

with Cone

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

11

572564R1

BEARING CUP

4шт.

12

700110970

SPACER

2шт.

13

305565

AXLE

2шт.

14

700110959

EXTENSION

- Beam (S.N. CFH0049001 thru 0049007)

2шт.

700124676

AXLE

Extension - Beam (S.N. CHF0049078 and Later)

2шт.

15

700110971

SPACER

4шт.

16

852491

BRONZE BUSHING

4шт.

17

7852866

BUSHING

2 x 18 Gauge Machinery Bushing

3шт.

18

26047

WHEEL

- Rear, 15"

2шт.

19

77248

FITTING

1/4-28 x 15/16 Zerk

1шт.

20

6849178

WALL

Tread - Safety 10 Foot Bulk

1шт.

21

6462519

SHIM

2шт.

22

700116677

BEAM

- Rocker

1шт.

23

52548

SPECIAL WASHER

2 x 14 Gauge Machinery Bushing

5шт.

24

852665

RING, SNAP

Snap - Ring

2шт.

25

6270219

SHAFT

- Pivot

1шт.

26

A38261

VALVE

Stem

2шт.

27

700709603

WASHER,3/8"

3/8 Wide Plain Washer

4шт.

28

704569

NUT

3/4-10 Hex Jam Nut

2шт.

29

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 x 3-1/4 HSHCS SPL

2шт.

30

705566

WASHER

3/4 Hardened Plain Washer

4шт.

703603

SCREW

3/8-16 x 1-1/2 C

4шт.

7702160

BOLT,Hex 3/4" - 10 x 2", Gr 5

3/4-10 x 2 C

2шт.

703660

BOLT,Hex 3/4" - 10 x 5", Gr 5

3/4-10 x 5 C

4шт.

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

704031

NUT

1/2-13 H

2шт.

704528

NUT,3/4"-10, G5

3/4-10 H

4шт.

705038

CONTROL VALVE

3/8"

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

705111

LOCK WASHER,3/4"

3/4"

4шт.

Выбрано товаров: 40
