Запчасти Case IH 8820 (9-56) - REAR STYLING AND SHIELDS ASSEMBLY (09) - CHASSIS/ATTACHMENTS

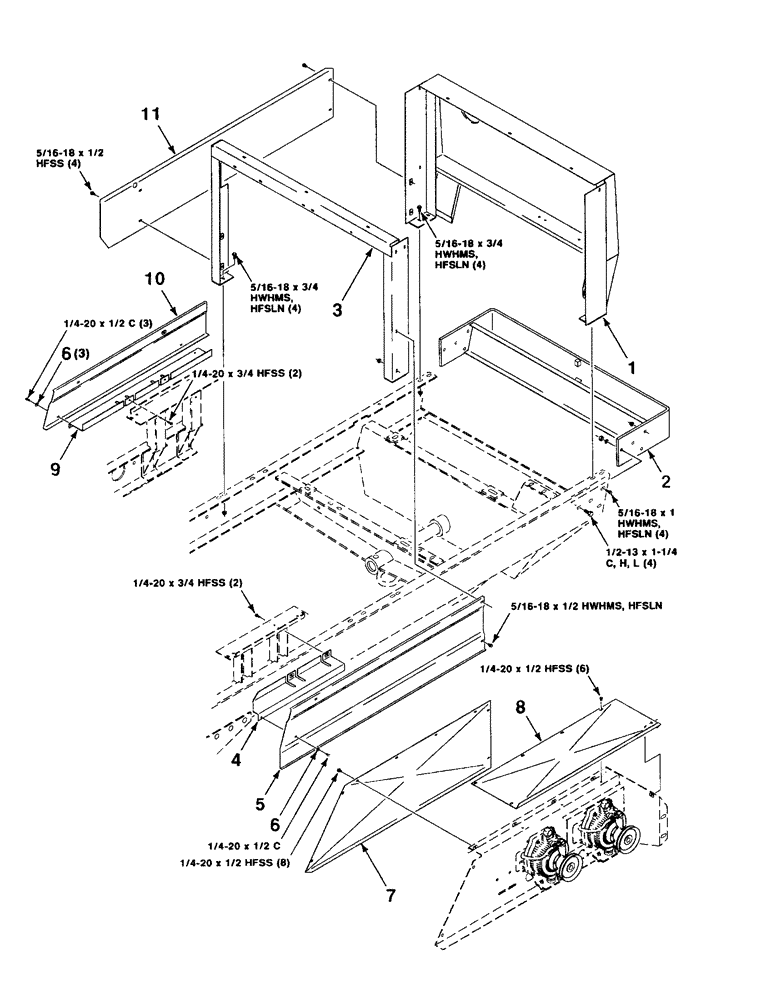

Схема запчастей Case IH 8820 - (9-56) - REAR STYLING AND SHIELDS ASSEMBLY (09) - CHASSIS/ATTACHMENTS
3
10
8
7
5
11
1
2
6
4
9

Артикул

Название

Примечание

Количество

1

700116833

PANEL

- Rear

1шт.

2

700121035

SUPPORT

- Rear

1шт.

3

700121032

SUPPORT

- Center

1шт.

4

700127585

MOUNTING PARTS

Mounting - Shield

1шт.

5

700127582

SHIELD

- Front, Left

1шт.

6

705517

WASHER

1/4 Hardened Plain Washer

4шт.

7

700121098

SHIELD

- Side, Right

1шт.

8

700121099

SHIELD

- Top

1шт.

9

700127587

MOUNTING PARTS

Mounting - Shield

1шт.

10

700127583

SHIELD

1шт.

11

700121097

SHIELD

panel

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 x 1/2 C

4шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

4шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

10шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

4шт.

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1/4-20 x 1/2 HFSS

14шт.

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HFSS

4шт.

86516876

COVER

1/2-13 H

4шт.

704239

FRONT AXLE

5/16-18 HFSLN

13шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

Выбрано товаров: 21
