Запчасти Case IH 8820 (9-52) - PLATFORM STEPS, RAILS AND TOOL BOX ASSEMBLY (09) - CHASSIS/ATTACHMENTS

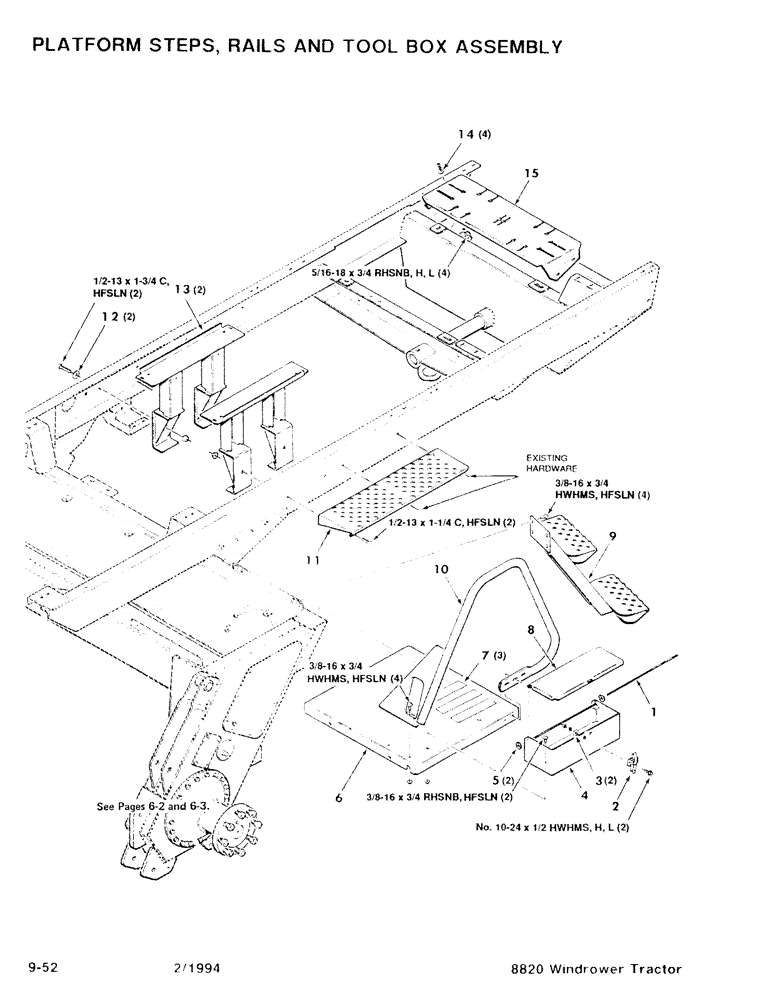

Схема запчастей Case IH 8820 - (9-52) - PLATFORM STEPS, RAILS AND TOOL BOX ASSEMBLY (09) - CHASSIS/ATTACHMENTS
5
12
4
2
3
6
11
14
7
15
9
8
13
1
10

Артикул

Название

Примечание

Количество

1

700115914

PIN

- Hinge

1шт.

2

700706849

LATCH

- Tool Box

1шт.

3

705699

WASHER,#12

No. 12 Plain Washer

2шт.

4

700115910

TOOL BOX

1шт.

5

700707858

SNAP RING

Retainer - Stud

2шт.

6

700110900

COVER

- left

1шт.

7

700115913

LID

- Tool Box

1шт.

8

6849178

WALL

Tread - Safety (10 Ft. Bulk)

1шт.

9

700110897

STEP

- Riser

1шт.

10

700115439

HANDRAIL

Rail

1шт.

11

700118456

STEP

1шт.

12

700709605

WASHER,1/2"

1/2 Wide Plain Washer

2шт.

13

700122748

SUPPORT

Frame - Channel

2шт.

14

705525

WASHER

5/16 Hardened Plain Washer

4шт.

15

700110899

RACK

- Battery

1шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

2шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 RHSNB

4шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

4шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

2шт.

700070227

SCREW,Hex Wash Hd, #12-24 x 1/2"

No. 12-24 x 1/2 HWHMS

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

4шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

8шт.

7774888

NUT

No. 12-24 H

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

1шт.

704247

NUT

3/8-16 HFSLN

10шт.

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

4шт.

492-11012

LOCK WASHER,#12

No. 12 L

2шт.

705020

LOCK WASHER

5/16"

4шт.
