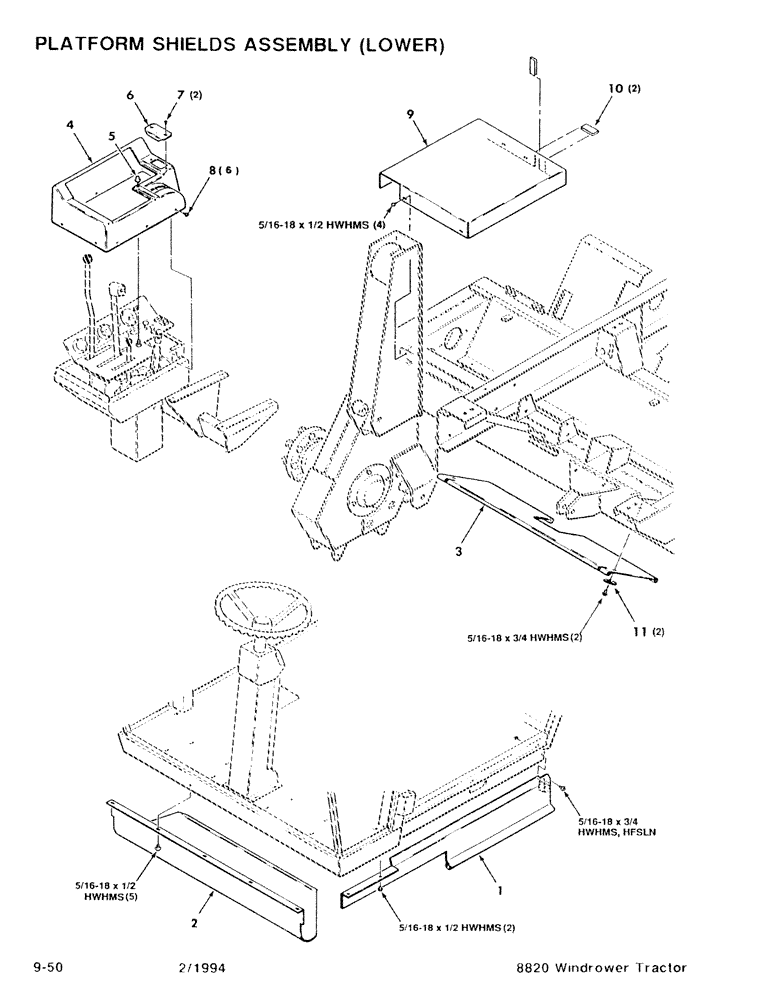

Запчасти Case IH 8820 (9-50) - PLATFORM SHIELDS ASSEMBLY, LOWER (09) - CHASSIS/ATTACHMENTS

1

700116511

SHIELD

- Left

1шт.

2

700116514

SHIELD

- Front

1шт.

3

700111918

SHIELD

- Front

1шт.

4

700111844

COVER

- Console

1шт.

5

7774219

NUT

1/4-20 Closed Hex Cap Nut

1шт.

6

700111927

COVER

- Fuse Box

1шт.

7

7706203

SCREW,Pan, #6 - 20 x 1/4"

No. 6-20 x 1/4 SPHTCTS

2шт.

8

701607

BRACKET

1/4-20 x 1/2 HWHTCTS

6шт.

9

700121008

COVER

- Right

1шт.

10

6477723

GROMMET

Trim

2шт.

11

700710049

WASHER

3/8 Fender Washer

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

11шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

3шт.

704239

FRONT AXLE

5/16-18 HFSLN

1шт.
