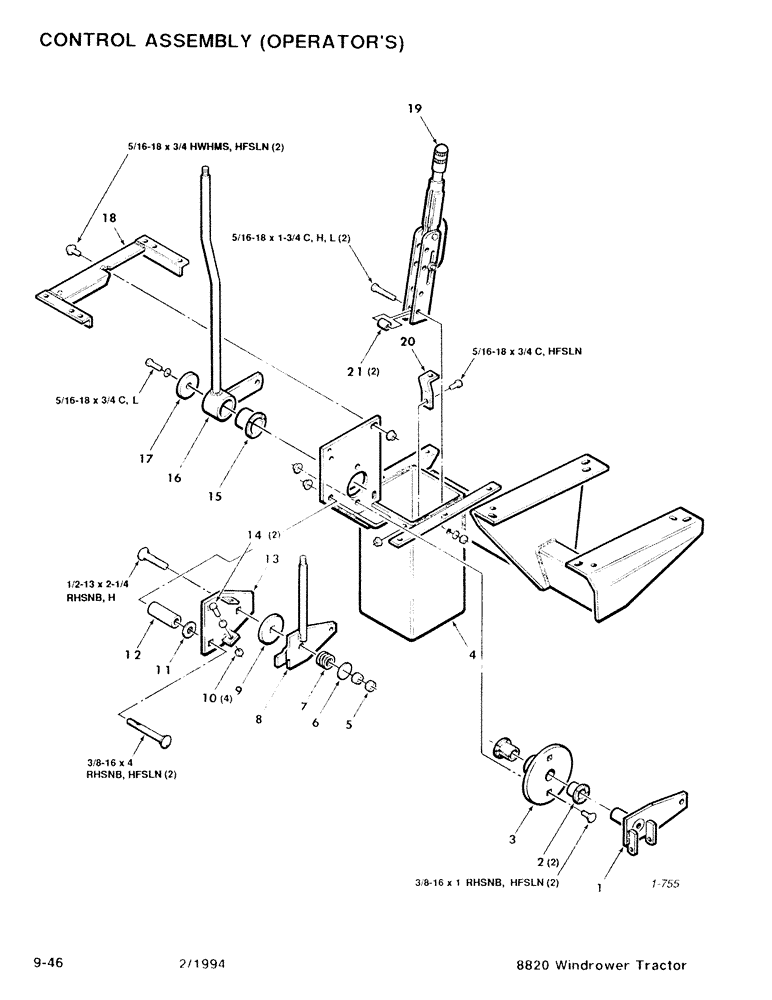

Запчасти Case IH 8820 (9-46) - CONTROL ASSEMBLY, OPERATORS (09) - CHASSIS/ATTACHMENTS

1

700115468

PIVOT

- Lever

1шт.

2

700705560

BUSHING

- Nylined

2шт.

3

700111023

MOUNTING PLATE

Mounting - Pivot

1шт.

4

700111038

HOUSING

Mounting Housing - Controls

1шт.

5

704056

NUT

1/2-13 Hex Jam Nut

1шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

1шт.

7

58024

SPRING

- Compression

1шт.

8

700111019

LEVER

1шт.

9

700711026

DISC

- Friction

1шт.

10

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 Hex Jam Nut

1шт.

11

705533

WASHER

3/8 Hardened Plain Washer

2шт.

12

700116062

SPACER

2шт.

13

700114951

SUPPORT

Mounting - Lever

1шт.

14

700705617

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 x 1-1/4 FTC

2шт.

15

700705559

BUSHING

- Nylon

1шт.

16

700111026

LEVER

1шт.

17

6617344

WASHER

- Inner

1шт.

18

700111050

FRAME

- Mounting, Controls

1шт.

19

7020548

BRAKE LEVER

Lever - Park Brake

1шт.

20

700111049

ANGLE

1шт.

21

6606966

SPACER

2шт.

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 C

2шт.

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 x 1-3/4 C

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

4шт.

700872

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

3/8-16 x 4 RHSNB

2шт.

7770704

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 RHSNB

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

704031

NUT

1/2-13 H

1шт.

704239

FRONT AXLE

5/16-18 HFSLN

3шт.

704247

NUT

3/8-16 HFSLN

4шт.

705020

LOCK WASHER

5/16"

3шт.
