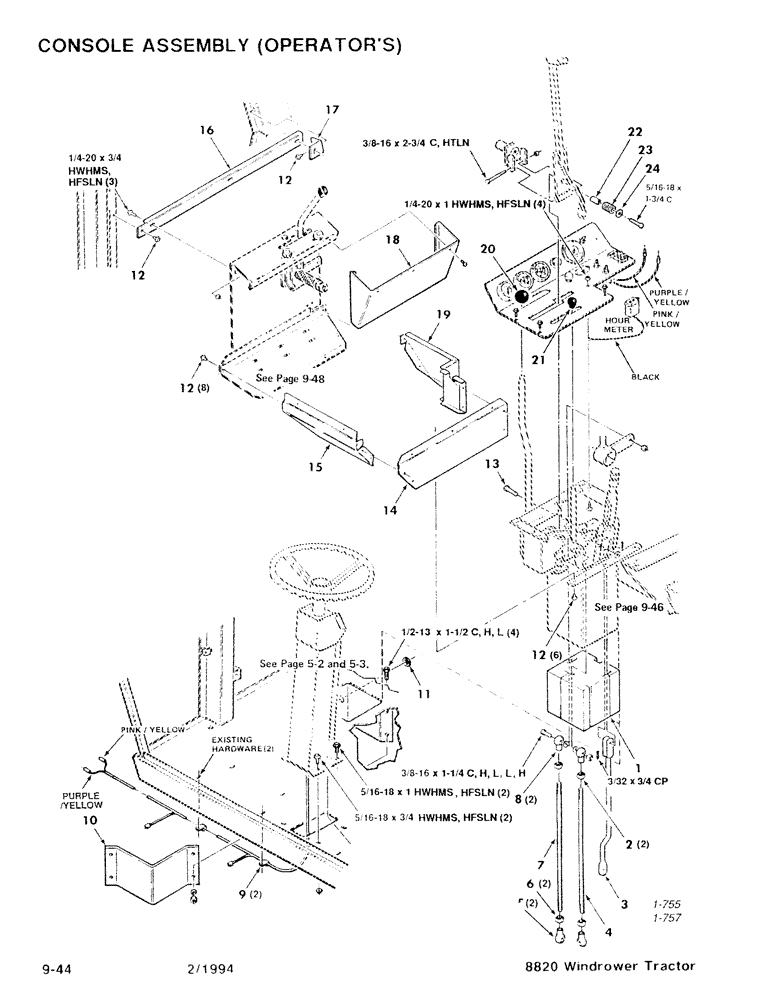

Запчасти Case IH 8820 (9-44) - CONSOLE ASSEMBLY, OPERATORS (09) - CHASSIS/ATTACHMENTS

1

700704959

PLUG

- Foam

1шт.

2

704304

NUT

3/8-24 H

2шт.

3

700110982

ROD

- Brake

1шт.

4

700111010

ROD

- Link

1шт.

5

700705523

SPHERICAL BEARING,9.52 mm ID x 12.7 mm

Rod End, LH Thread

2шт.

6

700705510

NUT

3/8-24 H, LH Thread

2шт.

7

700111012

ROD

- Link

1шт.

8

CAS51383

END

Rod End

2шт.

9

700708090

CLAMP

- Wire

2шт.

10

700110018

CLAMP

1шт.

11

8827172

GROMMET

1шт.

12

701607

BRACKET

1/4-20 x 1/2 HWHTCTS

14шт.

13

700111557

SCREW

3/8-16 x 1-1/2 C, Special

1шт.

14

700111073

PANEL

- Inside

1шт.

15

700111076

PANEL

- Front

1шт.

16

700121018

CHANNEL

1шт.

17

700121017

BRACKET

Angle

1шт.

18

700121029

COVER

1шт.

19

700111075

PANEL

- Rear

1шт.

20

721258

KNOB

1шт.

21

41848

KNOB

1шт.

22

700111576

SPACER

1шт.

23

058131

SPRING

- Compression

1шт.

24

705525

WASHER

5/16 Hardened Plain Washer

1шт.

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 x 1-3/4 C

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

1шт.

702928

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 x 2-3/4 C

1шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

4шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

6шт.

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 x 1 HWHMS

4шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

2шт.

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

86516876

COVER

1/2-13 H

4шт.

704213

NUT

3/8-16 HTLN

1шт.

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

7шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

4шт.

705038

CONTROL VALVE

3/8"

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.
