Запчасти Case IH 8820 (9-42) - SEAT ASSEMBLY, SUSPENSION (09) - CHASSIS/ATTACHMENTS

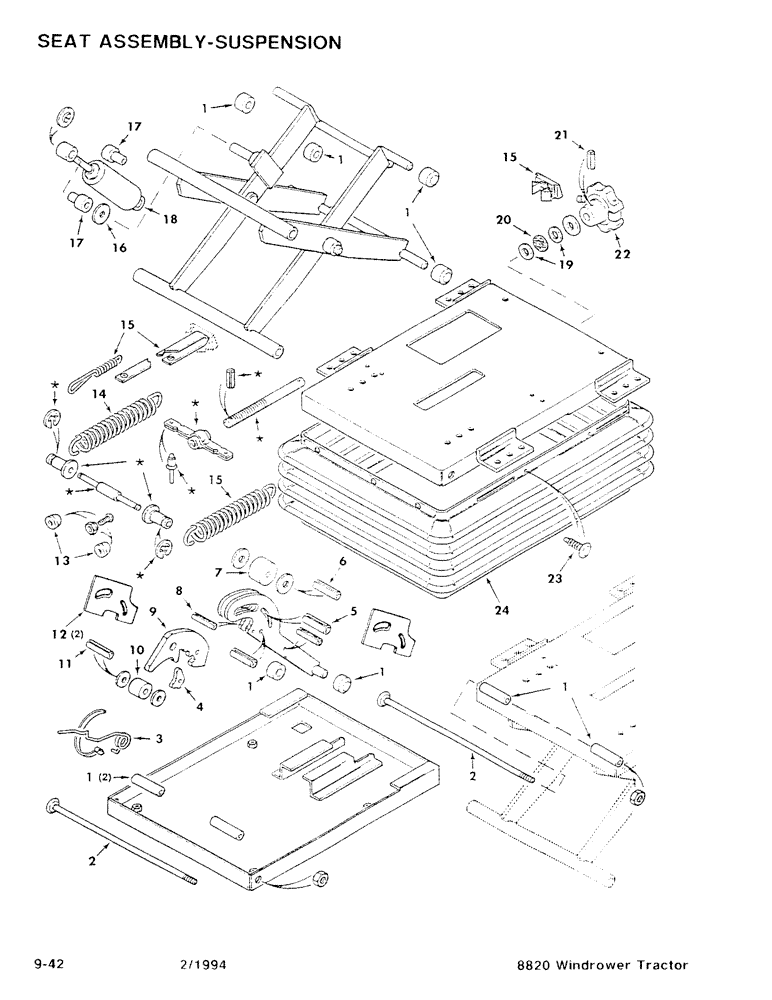

Схема запчастей Case IH 8820 - (9-42) - SEAT ASSEMBLY, SUSPENSION (09) - CHASSIS/ATTACHMENTS
1
23
1
1
1
15
8
7
15
4
1
18
11
1
12
17
10
19
15
2
24
21
6
16
1
13
2
17
5
20
14
3
9
22

Артикул

Название

Примечание

Количество

700709439

KIT

Suspension - Seat, Complete

1шт.

1

700709072

KIT

- Roller and Tube Bearing

1шт.

2

700711528

SHAFT

Bearing Shaft

2шт.

3

700711532

SPRING

- height Adjust

1шт.

4

700711533

LATCH

1шт.

5

700712450

PIN

3/8 x 1.56 Pin - Special

2шт.

6

63156

LOCK PIN,5/16" x 1 1/4", Slotted

1шт.

7

700711542

CAM

Follower

1шт.

8

763623

PIN, ROLL

5/32 x 3/4 Slotted Spring Pin

1шт.

9

700711530

CAM

1шт.

10

700711526

CAM

Bearing - Cam Follower

1шт.

11

63255

LOCK PIN,3/16" x 3/4", Slotted

Pin, 3/16" x 3/4", Slotted

1шт.

12

700711536

KIT

Spacer

4шт.

13

700710439

BUMPER

2шт.

14

700709046

KIT

- Spring Extension

1шт.

15

700712456

KIT

- Spring and Weight Adjustment

1шт.

16

700711537

WASHER

- Plastic

1шт.

17

700709504

BEARING

- Shock

2шт.

18

700709073

KIT

- Shock Absorber

1шт.

19

700711538

RACE

Thrust Race

2шт.

20

700711534

BEARING

- Thrust

1шт.

21

63370

PIN,5/32" x 1", Slotted

1шт.

22

700711535

KIT

- Knob, Weight Adjusting

1шт.

23

700709502

FASTENER

Pins (Packaged 25 per Bag)

1шт.

24

700709804

BOOT

Assembly - Suspension (with Pins)

1шт.

700711536

KIT

- Weight Adjuster Includes: Ref. marked with asterisks on the art.

1шт.

Выбрано товаров: 26
