Запчасти Case IH 8820 (9-40) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

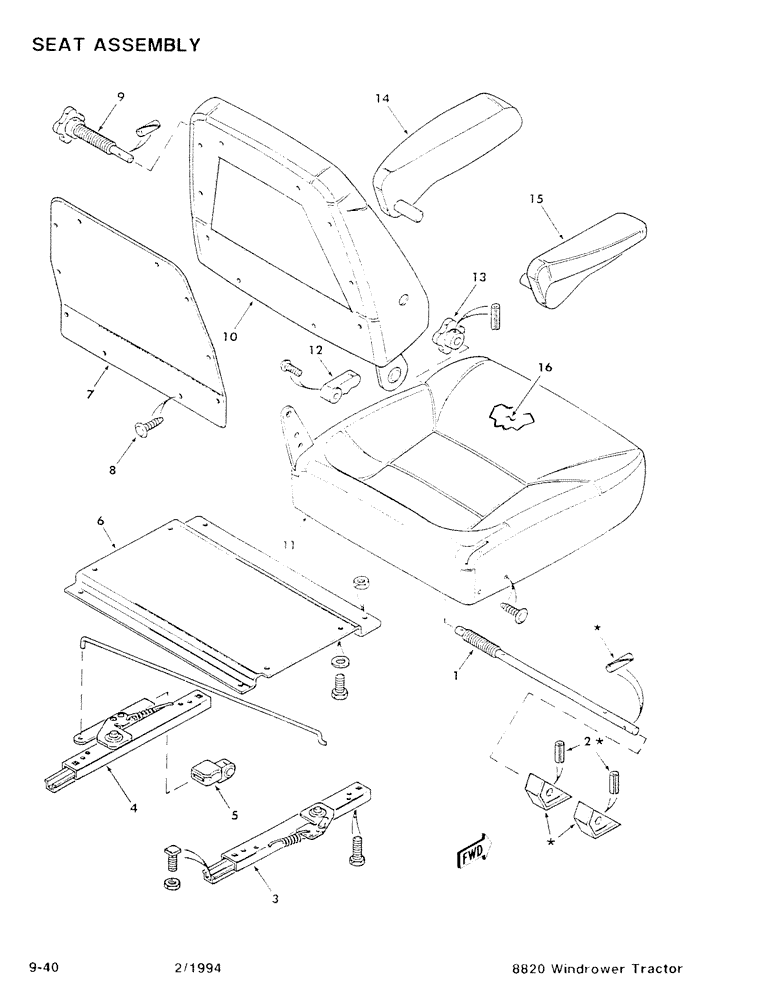

Схема запчастей Case IH 8820 - (9-40) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
10
6
4
3
12
7
11
*
16
1
*
15
13
14
2
8
*
5
9

Артикул

Название

Примечание

Количество

700710451

CLUTCH

Seat with Backrest Complete (Without Armrest and Adapter Plate)

1шт.

1

700711521

CAM

Shaft Includes: Ref. marked with asterisks on the art.

1шт.

2

438-11016

LOCK PIN,5/32" x 1", Slotted

3шт.

3

700709441

SLIDE

Assembly - Slave

1шт.

4

700708807

SLIDE

Locking Slide Assembly, with Handle

1шт.

5

700711524

KNOB

- Fore and Aft

1шт.

6

700712453

LARGE PLATE

Plate - Seat Adapter

1шт.

7

700708806

COVER

Kit - Backrest Cover, with Clips

1шт.

8

700712457

CLIP

Kit - Christmas Tree Clips

1шт.

9

700711522

KNOB

- Lumbar

1шт.

10

700709805

PAD

Back Pad Service Kit

1шт.

11

700712452

CUSHION, SEAT

Seat Cushion Assembly

1шт.

12

700711513

KIT

- Service Back Tilt

1шт.

13

700710993

KNOB

- Seat Tilt

1шт.

14

700708809

ARMREST

Arm Rest - Left

1шт.

15

700708810

ARMREST ASSY.

Arm Rest - Right

1шт.

16

700708812

SEAT CUSHION

Seat Pad Assembly

1шт.

Выбрано товаров: 17
