Запчасти Case IH 8820 (9-38) - SEAT ASSEMBLY, 700122900 SEAT COMPLETE (09) - CHASSIS/ATTACHMENTS

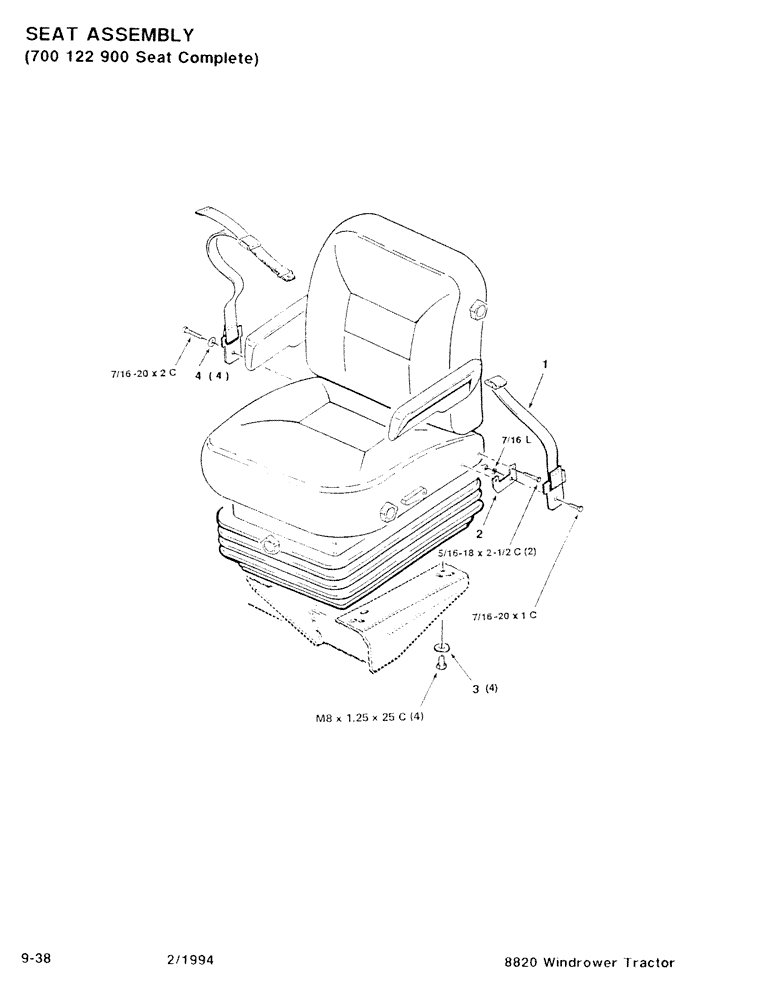

Схема запчастей Case IH 8820 - (9-38) - SEAT ASSEMBLY, 700122900 SEAT COMPLETE (09) - CHASSIS/ATTACHMENTS
3
2
1
4

Артикул

Название

Примечание

Количество

700122900

SEAT

with Seat Belts - Complete

1шт.

1

741033

SAFETY BELT

Seat Belt Assembly

1шт.

2

700710268

BRACKET

- Seatbelt, left

1шт.

3

705558

WASHER

7/16 Hardened Plain Washer

4шт.

4

1703321

WASHER,M8 x 16 x 1.6

8 Plain Washer

4шт.

7772197

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8

M8 x 1/25 x 25 C

4шт.

7703945

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 x 2-1/2 C

2шт.

771501

BOLT,Hex, 7/16" - 20 x 1", Gr 5

7/16-20 x 1 C

1шт.

7701162

BOLT,Hex, 7/16" - 20 x 2", Gr 5

7/16-20 x 2 C

1шт.

700702206

LOCK WASHER

7/16 L

1шт.

Выбрано товаров: 10
