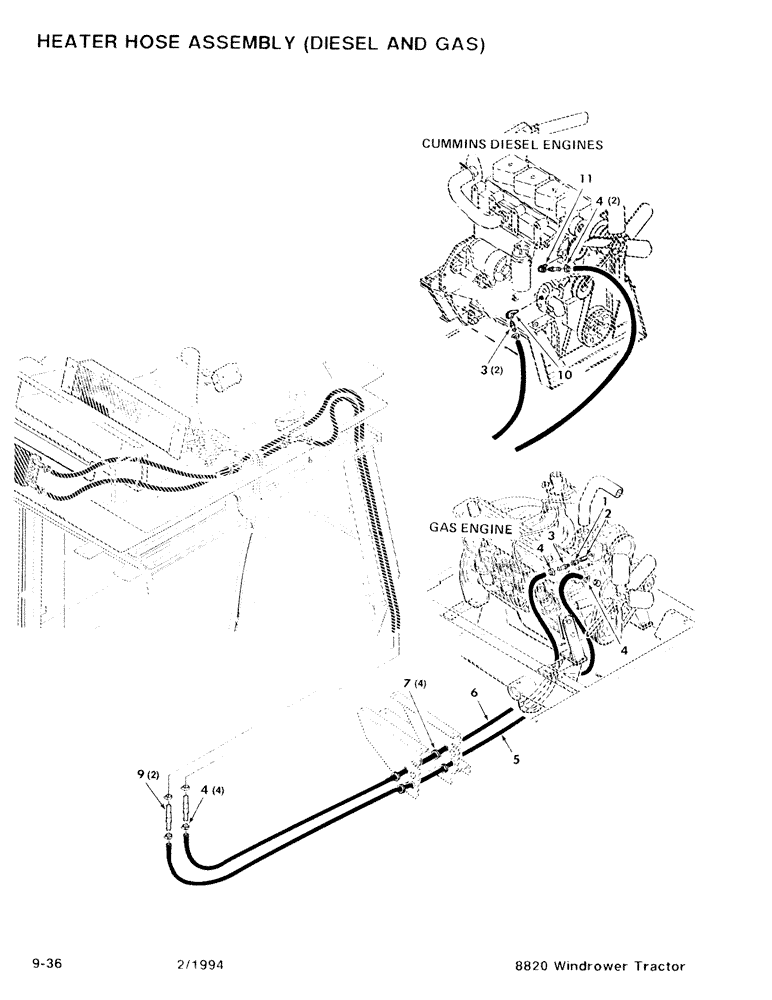

Запчасти Case IH 8820 (9-36) - HEATER HOSE ASSEMBLY, DIESEL AND GAS (09) - CHASSIS/ATTACHMENTS

1

7846884

REDUCER

(Gas Engine Only)

1шт.

2

46367

NIPPLE, LUBE

Nipple (Gas Engine Only)

1шт.

3

7792518

INSERT

(Diesel Engine Only)

2шт.

7792518

INSERT

(Gas Engine Only)

1шт.

4

7022411

HOSE CLAMP

Clamp - Hose

6шт.

5

700122711

HEATER HOSE,0.63" ID x 76.77", SAE 30R3 Class D2

HOSE , Heater, Return 0.63" ID x 76.77", SAE 30R3 Class D2

1шт.

6

700122712

HEATER HOSE,0.63" ID x 92.52", SAE 30R3 Class D2

HOSE , Heater, Pressure 0.63" ID x 92.52", SAE 30R3 Class D2

1шт.

7

8827172

GROMMET

- Rubber

4шт.

8

529070

CABLE TIE,368.3mm L

Tie - Cable

1шт.

9

700710295

FITTING

Splicer - Hose

2шт.

10

46136

ELBOW

1/2 x 45deg. Street Ell (Diesel Engine Only)

1шт.

11

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

1/2 x 90deg. Street Ell ,BUSHING - reducer(Diesel Engine Only)

1шт.
