(9-34) - HEATER CORE AND VALVE CONTROL ASSEMBLY

Запчасти Case IH 8820 (9-34) - HEATER CORE AND VALVE CONTROL ASSEMBLY (09) - CHASSIS/ATTACHMENTS

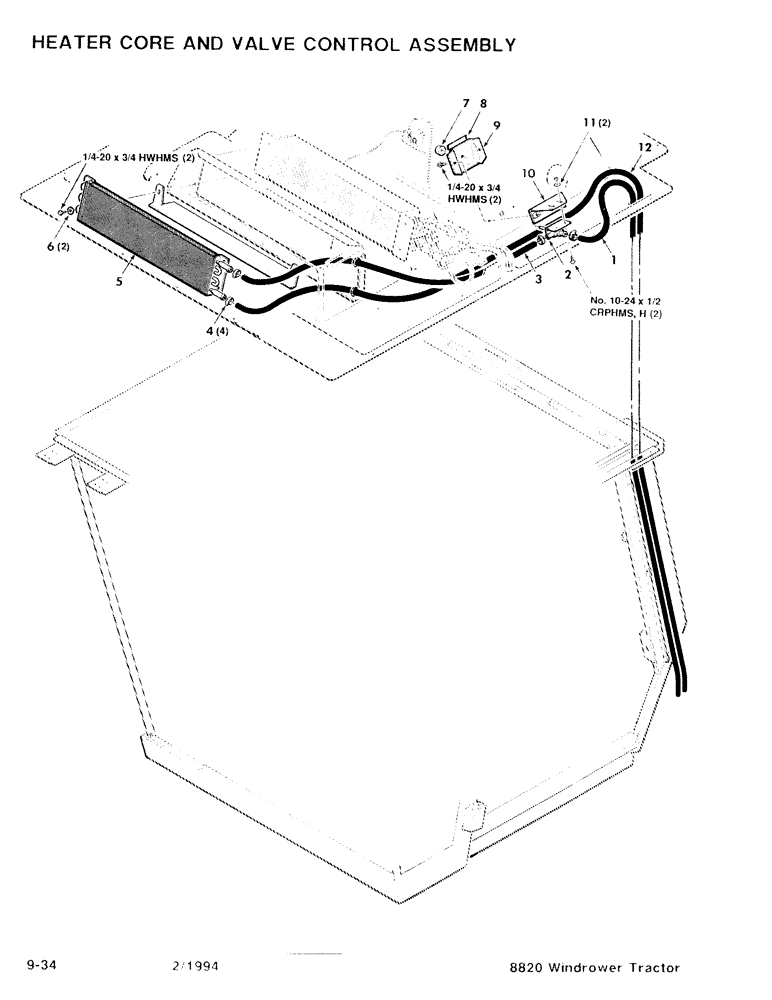

Схема запчастей Case IH 8820 - (9-34) - HEATER CORE AND VALVE CONTROL ASSEMBLY (09) - CHASSIS/ATTACHMENTS
12
4
2
8
6
5
7
9
3
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700120993

HEATER HOSE,0.63" ID x 77.95"

HOSE , Heater, Pressure 0.63" ID x 77.95"

1шт.

2

700709777

HYDRAULIC VALVE

Valve - Water, Control

1шт.

3

700120994

HEATER HOSE,0.63" ID x 33.23"

HOSE , Heater, Pressure 0.63" ID x 33.23"

1шт.

4

7022411

HOSE CLAMP

Clamp

4шт.

5

700709005

CORE

- Heater

1шт.

6

705517

WASHER

1/4 Hardened Plain Washer

2шт.

7

7722622

KNOB

- Control

1шт.

8

700709795

DECAL

- Heater

1шт.

9

700120988

PANEL

Cover - Valve

1шт.

10

700120990

SUPPORT

- Valve

1шт.

11

70925966

WASHER

No. 10 Plain Washer

2шт.

12

700120992

HEATER HOSE,0.63" ID x 118.11"

HOSE , Heater, Return 0.63" ID x 118.11"

1шт.

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

No. 10-24 x 1/2 CRPHMS

2шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

4шт.

704072

NUT

No. 10-24 H

2шт.
