Запчасти Case IH 8820 (9-32) - CONDENSOR, COMPRESSOR ASSEMBLY, DIESEL, SERIAL NUMBER CFH0049253 AND LATER (09) - CHASSIS/ATTACHMENTS

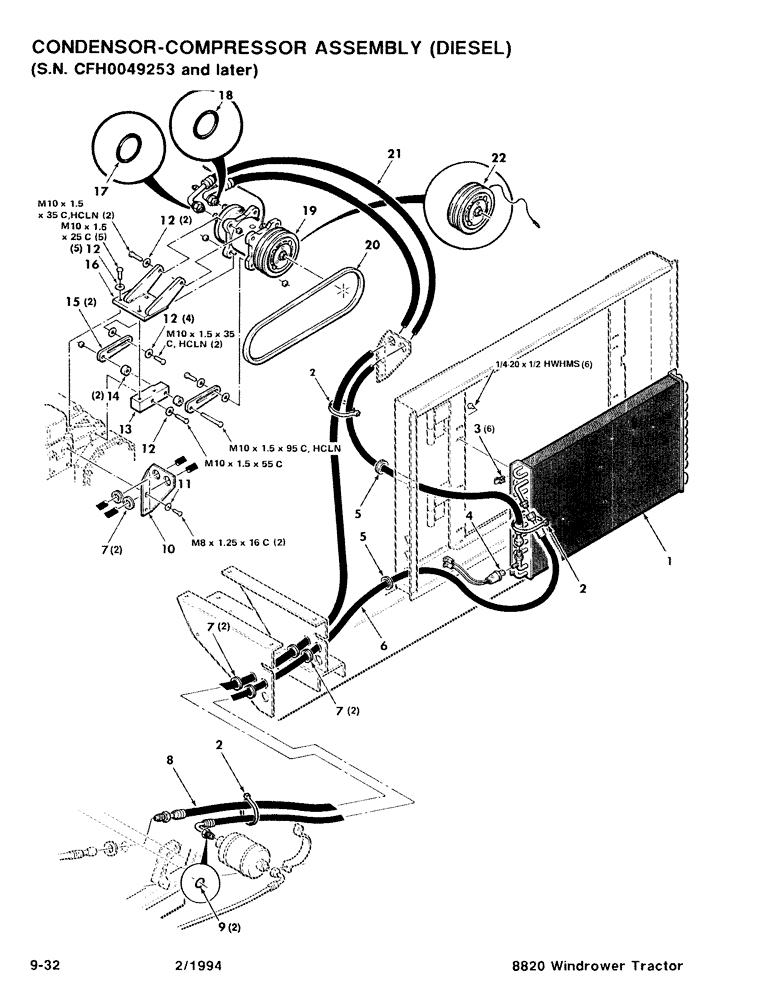

Схема запчастей Case IH 8820 - (9-32) - CONDENSOR, COMPRESSOR ASSEMBLY, DIESEL, SERIAL NUMBER CFH0049253 AND LATER (09) - CHASSIS/ATTACHMENTS
2
11
1
18
2
12
5
16
10
7
17
2
9
12
14
21
3
19
20
8
12
4
13
7
12
5
7
6
15
22

Артикул

Название

Примечание

Количество

1

700712701

CONDENSER

Condensor

1шт.

2

722470

MOUNTING CLIP

Tie - Nylon

3шт.

3

74807

NUT

1/4-20 Speed Nut

6шт.

4

7722929

SWITCH

- Pressure

1шт.

5

8027179

GROMMET

- Hose

1шт.

6

700712707

HOSE

Assembly (Includes Item 9)

1шт.

7

8827172

GROMMET

6шт.

8

700712715

HOSE

Assembly (Includes Item 18)

1шт.

9

700712717

O-RING

2шт.

10

700117926

SUPPORT

- Mounting, Hose

1шт.

11

1703321

WASHER,M8 x 16 x 1.6

8 Plain Washer

1шт.

12

1705318

WASHER

10 Plain Washer

12шт.

13

700119650

SUPPORT

- Compressor

1шт.

14

6606594

BUSHING

2шт.

15

700119652

STRAP

- Adjustment

2шт.

16

700119647

MOUNTING PARTS

Support - Compressor

1шт.

17

700712718

O-RING

1шт.

18

700712719

O-RING

1шт.

19

700712705

COMPRESSOR

1шт.

19

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 700712705

1шт.

19

1977959C1C

CORE-A/C COMPRESSOR

1977959C1R

1шт.

20

700708217

V-BELT,1169.70 mm L

1шт.

21

700712709

HOSE

Assembly (Includes Item 17)

1шт.

22

700709771

CLUTCH

Assembly - Compressor

1шт.

700708358

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 1.25 x 16 C

2шт.

700708349

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

M10 x 1.5 x 25 C

5шт.

7702319

BOLT

M10 x 1.5 x 35 C

4шт.

7703200

BOLT

M10 x 1.5 x 55 C

1шт.

700708764

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 x 1.5 x 95 C

1шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

6шт.

832-41310

NUT,M10 x 1.5, Cl 10

NUT, LOCK, M10 x 1.5, Cl 10

5шт.
