Запчасти Case IH 750 (16) - HYDRAULICS, REAR UNIT

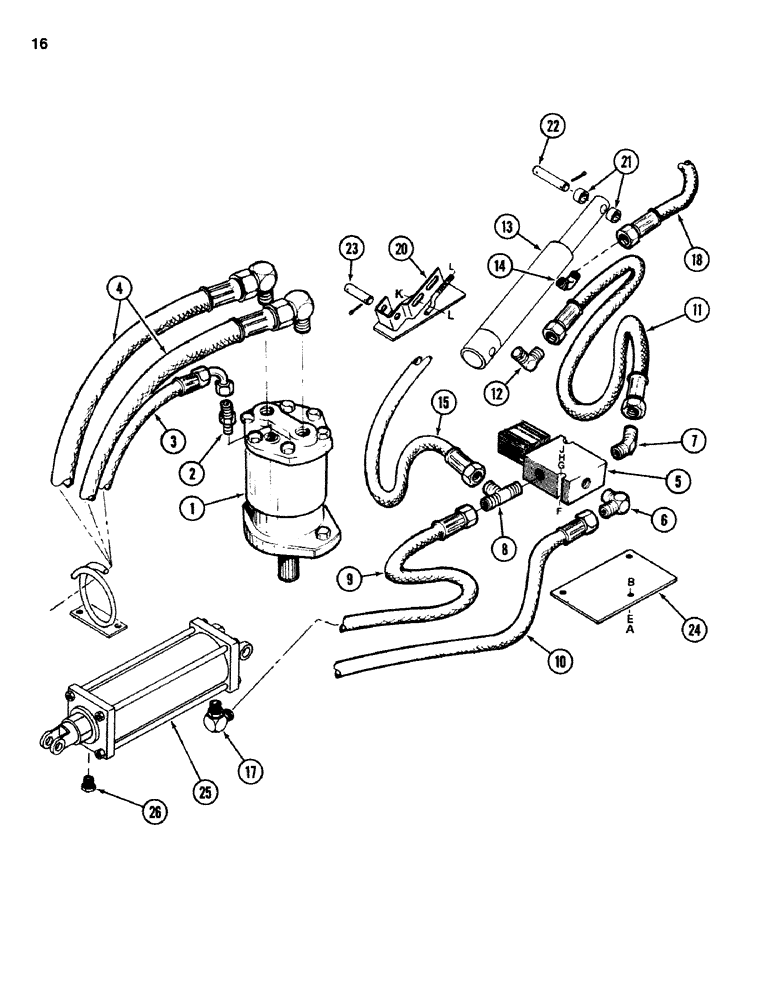

Схема запчастей Case IH 750 - (16) - HYDRAULICS, REAR UNIT

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MOTOR - hydraulic (see page 23)

1шт.

2

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - male, 3/8 inch

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for connector 9410202

1шт.

3

1276696C1

HOSE

ASSEMBLY - case drain

1шт.

4

1276814C1

HOSE

ASSEMBLY - motor to/from hitch

2шт.

5

1276767C1

VALVE

- solenoid, Manufacturer: Modular Controls

1шт.

1276773C1

COIL

- for Modular Controls Valve 1276767C1

1шт.

1276774C1

KIT

SEAL KIT - for Modular Controls Valve 1276767C1

1шт.

5

95631C1

VALVE

- solenoid, Manufacturer: Waterman (alternate)

1шт.

f

413-432

- hex, 1/4 NC x 2 inch

2шт.

g

120392

WASHER,1/4", SAE

- flat, 9/32 inch ID

2шт.

h

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

j

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- male, 90 degree

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for elbow 9410976

1шт.

7

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- male, 45 degree

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for elbow 9411104

1шт.

8

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

- run

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for tee 9411130

1шт.

9

1276815C1

HOSE

ASSEMBLY - to header lift cylinder

1шт.

10

1276816C1

HOSE

ASSEMBLY - to solenoid valve, from front unit

1шт.

11

1276817C1

HOSE

ASSEMBLY - reel lift

1шт.

12

346737R1

ELBOW,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- male, 90 degree (prior to P.I.N. 516)

1шт.

12

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- male, 90 degree (P.I.N. 516 and after)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for elbow 9410976 or 346737R1

1шт.

13

REF

INSTRUCTION

CYLINDER - master, reel lift (see page 7)

1шт.

14

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- male, 45 degree

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for elbow 9411104

1шт.

15

1276818C1

HOSE

ASSEMBLY - to wheel valve (prior to P.I.N. 2280)

1шт.

15

1960329C1

HOSE

ASSEMBLY - to wheel valve (P.I.N. 2280 and after)

1шт.

17

935036R91

ELBOW

- male, 90 degree

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- for elbow 935036R91

1шт.

18

1276819C1

HOSE

ASSEMBLY - reel cylinder to hydraulic tube

1шт.

20

80710C1

PLATE

- cylinder adjusting

1шт.

k

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

l

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

3шт.

21

1276751C1

SPACER

- cylinder rod

2шт.

22

1276590C1

PIN

- cylinder, rod end

1шт.

23

79085C1

PIN

- cylinder, barrel end

1шт.

24

1276728C1

SHIELD

- solenoid

1шт.

a

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

3шт.

e

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 inch ID

3шт.

b

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC distorted thread

3шт.

25

1281357C1

CYLINDER

- rear header lift

1шт.

1276739C1

SEAL

KIT - for cylinder 1281357C1

1шт.

26

1337119C1

PLUG

BREATHER - cylinder

1шт.
