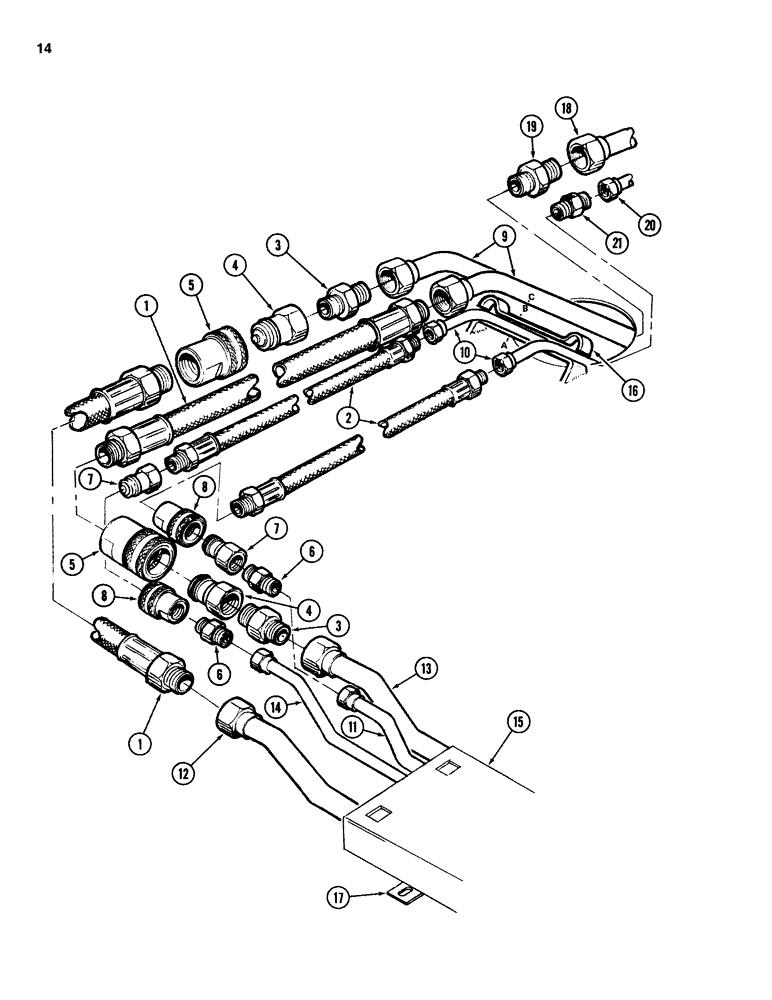

Запчасти Case IH 750 (14) - HYDRAULICS, DUPLEX HITCH

1

1276820C1

HOSE

ASSEMBLY - 3/4 inch ID

2шт.

2

1276821C1

HOSE

ASSEMBLY - 3/8 inch ID

2шт.

3

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - male, 3/4 inch

2шт.

4

1281407C1

COUPLING

COUPLER - male, quick disconnect, 1-1/16 inch NC

2шт.

5

1281408C1

COUPLING

COUPLER - female, quick disconnect, 1-1/16 inch NC

2шт.

6

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR - male, 1/2 to 3/8 inch

2шт.

7

1281409C1

COUPLING

COUPLER - male, quick disconnect, 3/4 inch NC

2шт.

8

1281410C1

COUPLING

COUPLER - female, quick disconnect, 3/4 inch NC

2шт.

9

80749C1

TUBE,420, 106 mm Length

ASSEMBLY - duplex hitch, front section, 3/4 inch OD (prior to P.I.N. 516 also order ref. 18 and 19)

2шт.

10

1276823C1

TUBE,9.53 mm OD

ASSEMBLY - duplex hitch, front section, 3/8 inch OD (prior to P.I.N. 516 also order ref. 20 and 21)

2шт.

11

90991C1

TUBE,.375" OD

ASSEMBLY - case drain (21 foot front unit)

1шт.

11

1276824C1

TUBE,9.53 mm OD

ASSEMBLY - case drain (25 foot front unit)

1шт.

12

90990C1

TUBE

ASSEMBLY - high pressure (21 foot front unit)

1шт.

12

1276825C1

TUBE,19 mm OD

ASSEMBLY - high pressure (25 foot front unit)

1шт.

13

90989C1

LINE,1628 mm L

TUBE ASSEMBLY - return (21 foot front unit)

1шт.

13

1276826C1

TUBE,19 mm OD

ASSEMBLY - return (25 foot front unit)

1шт.

14

90992C1

TUBE,.375" OD

ASSEMBLY - front hitch to rear solenoid (21 foot front unit)

1шт.

14

1276771C1

TUBE,9.53 mm OD

ASSEMBLY - front hitch to rear solenoid (25 foot front unit)

1шт.

15

90994C1

SHIELD

- hydraulic line (21 foot front unit)

1шт.

15

1276827C1

SHIELD

- hydraulic line (25 foot front unit)

1шт.

16

1276828C1

CLAMP

- hydraulic line

6шт.

a

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

6шт.

b

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

c

120376

NUT,5/16"-18, G5

6шт.

17

1276829C1

PLATE

- hydraulic line

2шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

4шт.

1276650C1

SPACER

- shield, 5/8 OD x 3/8 ID x 5/16 inch long

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

80748C1

TUBE

ASSEMBLY - duplex hitch, rear section, 3/4 inch OD (prior to P.I.N. 516 also order ref. 9 and 19)

2шт.

19

9402789

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

- 3/4 inch tube

2шт.

20

1276822C1

TUBE,9.53 mm OD

ASSEMBLY - duplex hitch, rear section, 3/8 inch OD (prior to P.I.N. 516 also order ref. 10 and 21)

2шт.

21

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 3/8 inch tube

2шт.
