Запчасти Case IH 750 (08) - HYDRAULICS, FRONT UNIT

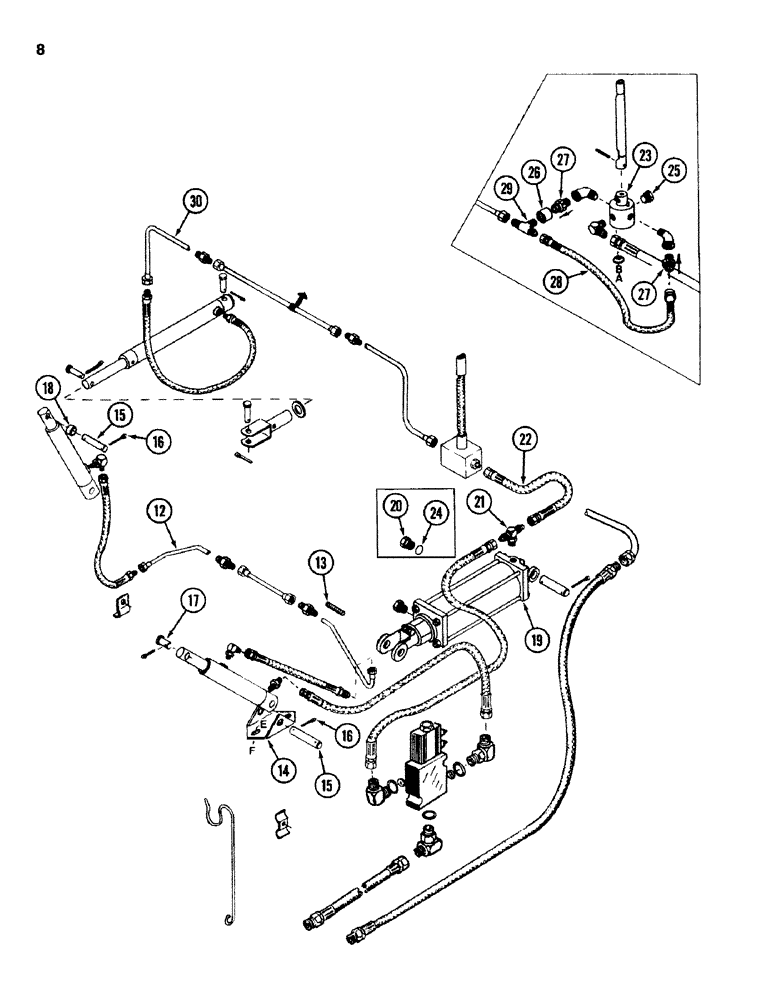

Схема запчастей Case IH 750 - (08) - HYDRAULICS, FRONT UNIT

Артикул

Название

Примечание

Количество

12

1337506C1

TUBE,6.4 mm OD

ASSEMBLY - to right cylinder, front and rear (P.I.N. 2280 and after)

1шт.

12

90962C1

TUBE

ASSEMBLY - to right cylinder, 21 foot front unit (prior to P.I.N. 2280)

1шт.

12

1276747C1

PIPE,6.4 mm OD

TUBE ASSEMBLY - to right cylinder, 25 foot front unit (prior to P.I.N. 2280)

1шт.

12

91005C1

TUBE,.25" OD

ASSEMBLY - to right cylinder, 21 foot rear unit (prior to P.I.N. 2280)

1шт.

12

1276746C1

TUBE,6.4 mm OD

ASSEMBLY - to right cylinder, 25 foot rear unit (prior to P.I.N. 2280)

1шт.

13

1276748C1

TUBE

HOSE - protective

1шт.

14

1276749C1

BRACKET

- mounting, cylinder

2шт.

e

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

f

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

4шт.

15

79085C1

PIN

- cylinder

3шт.

16

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

6шт.

17

21957R1

HEADED PIN,5/8" x 2"

PIN - clevis, 5/8 x 1-9/16 inch

1шт.

18

1276751C1

SPACER

- cylinder

2шт.

19

1276752C1

CYLINDER

- header lift (prior to P.I.N. 516 also order ref. 45)

1шт.

1276739C1

SEAL

KIT - for header lift cylinder 1276752C1

1шт.

20

1276753C1

PLUG

BREATHER - cylinder (prior to P.I.N. 516)

1шт.

21

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

- run, male

1шт.

22

1960328C1

HOSE

ASSEMBLY - cylinder to valve (P.I.N. 2280 and after)

1шт.

22

1276755C1

HOSE

ASSEMBLY - cylinder to valve (prior to P.I.N. 2280)

1шт.

23

1276756C1

VALVE

- selector, with o-ring (prior to P.I.N. 2280)

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- for valve 1276756C1

1шт.

a

180018

CONNECTING LINK

- hex, 1/4 NC x 5/8 inch

2шт.

b

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- breather (prior to P.I.N. 516)

1шт.

25

397299R1

PLUG

- pipe (prior to P.I.N. 2280)

1шт.

26

NLS

NO LONGER SERVICED

COUPLING - steel pipe (prior to P.I.N. 2280)

1шт.

27

1281477C1

VALVE

- check (prior to P.I.N. 2280) (prior to P.I.N. 736 also order ref 26)

2шт.

28

1276758C1

HOSE

ASSEMBLY - tee to check valve (prior to P.I.N. 2280)

1шт.

29

1276759C1

TEE

- branch, male (prior to P.I.N. 2280)

1шт.

30

1337503C1

TUBE,6.4 mm OD

ASSEMBLY - to right wheel cylinder; front and rear units (P.I.N. 2280 and after)

1шт.

30

90963C1

TUBE

ASSEMBLY - to right wheel cylinder; 21 foot front unit (prior to P.I.N. 2280) (see note)

1шт.

30

1276766C1

TUBE

ASSEMBLY - to right wheel cylinder; 25 foot front and rear units (prior to P.I.N. 2280) (see note)

1шт.

30

91004C1

TUBE,.25" OD

ASSEMBLY - to right wheel cylinder; 21 foot rear unit (prior to P.I.N. 2280) (see note)

1шт.

Выбрано товаров: 33
