Запчасти Case IH 750 (70) - CONVEYOR

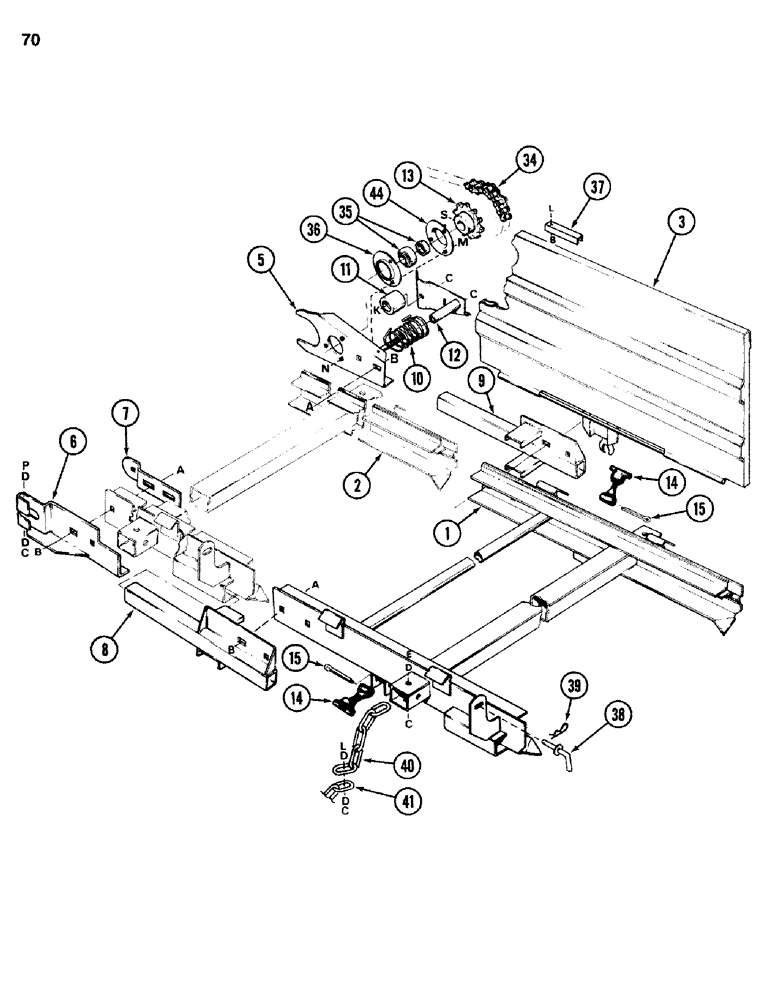

Схема запчастей Case IH 750 - (70) - CONVEYOR

Артикул

Название

Примечание

Количество

1

1276666C1

PLATFORM

DECK - short

1шт.

2

1276667C1

PLATFORM

DECK - long

1шт.

3

1276668C1

DOOR

- short

2шт.

3

1276669C1

DOOR

- long

2шт.

5

1276670C2

BASE

MOUNT - rear

1шт.

a

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

6

1276671C2

BASE

MOUNT - front

1шт.

a

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

d

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch ID

2шт.

p

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

7

1276672C1

BAR

- roller mounting (prior to P.I.N. 1225)

1шт.

8

1276673C1

SUPPORT

CONNECTOR - front

1шт.

9

1276674C1

SUPPORT

CONNECTOR - rear

1шт.

a

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

10

1276675C1

SPRING

- torsion

1шт.

11

1276676C1

ROLLER

- chain

1шт.

12

1276677C1

ARM

- chain tension

1шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

k

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

13

1276678C1

SPROCKET ASSY.

SPROCKET - drive

1шт.

s

22223R1

SCREW,Hex Soc, 1/4"-20 x 1/2"

- set, hex socket head, cup point 1/4 NC x 1/2 inch

2шт.

14

494307C1

LATCH

- rubber

2шт.

15

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

34

NSS

NOT SOLD SEPARAT

CHAIN - roller, no. 40 x 36 links (see note)

1шт.

35

666589R91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

1шт.

35

455102R21

COLLAR

- lock

1шт.

36

462360R1

FLANGED BEARING

- bearing

1шт.

n

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- serrated flange lock, 5/16 inch NC

3шт.

m

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

3шт.

37

1276702C1

CHANNEL

- connector

2шт.

l

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

38

1276701C1

PIN

- storage

1шт.

39

153528C1

COTTER PIN

- hair

1шт.

40

1281391C1

CHAIN (AG)

CHAIN - hang up, grade 30 x 60 links

2шт.

e

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

d

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch ID

2шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

41

1281390C1

CHAIN (AG)

CHAIN - hang up, extension grade 30 x 26 links

2шт.

l

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

d

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch ID

4шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

44

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - bearing, re-lube

1шт.

Выбрано товаров: 47
