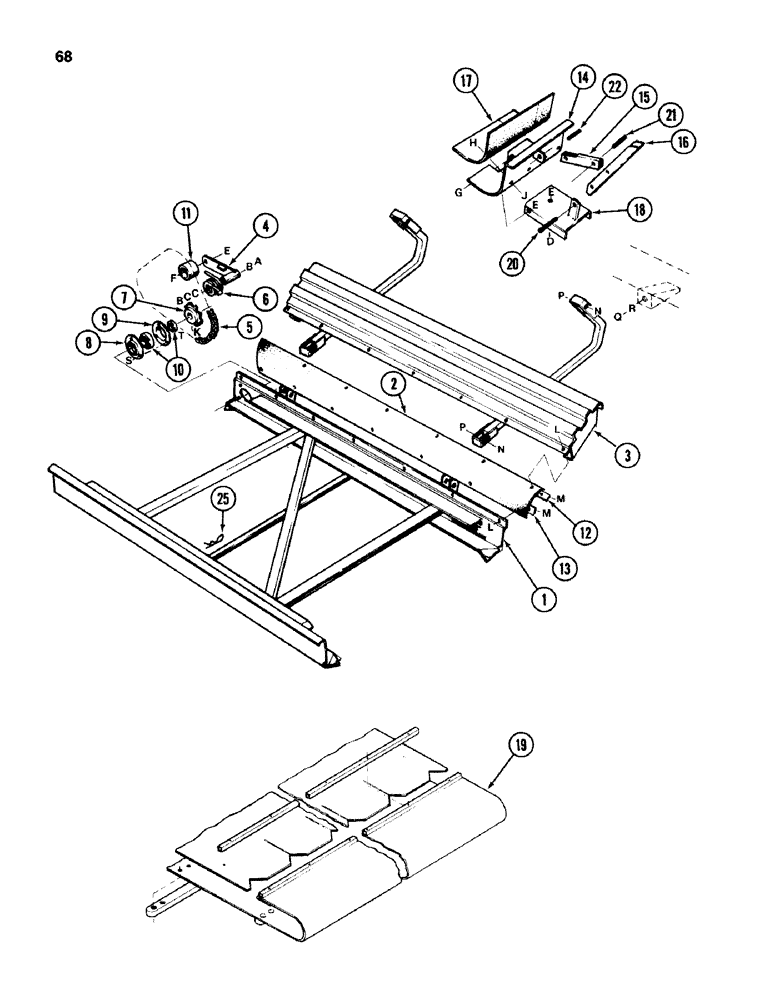

Запчасти Case IH 750 (68) - CENTER DECK, REAR UNIT

1

1276834C1

PLATFORM

DECK - center

1шт.

2

1276710C1

FLAP

- rubber

1шт.

3

1276711C1

SHEET

BACK SHEET - deck

1шт.

n

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

p

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

4шт.

4

1276712C1

ARM

- tightener

1шт.

a

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

1шт.

b

120377

NUT,3/8" - 16, Gr 5

2шт.

c

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch ID

2шт.

5

NSS

NOT SOLD SEPARAT

CHAIN - roller, no. 40 x 36 links plus offset link (see note)

1шт.

6

1276713C1

SPRING

- torsion

1шт.

7

1276678C1

SPROCKET ASSY.

SPROCKET - drive

2шт.

k

22223R1

SCREW,Hex Soc, 1/4"-20 x 1/2"

- set, hex socket head, cup point 1/4 NC x 1/2 inch

4шт.

8

462360R1

FLANGED BEARING

- bearing

1шт.

9

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - bearing, re-lube

1шт.

s

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 inch NC x 3/4 inch

3шт.

t

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- serrated flange lock, 5/16 inch NC

3шт.

10

666589R91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

1шт.

10

455102R21

COLLAR

- lock

1шт.

11

1276676C1

ROLLER

- chain

1шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

f

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 x 2 inch

1шт.

12

95654C1

BAR

- retainer, top

1шт.

13

95655C1

BAR

- retainer, bottom

1шт.

l

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

18шт.

m

9413950

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4 inch NC distorted thread

18шт.

14

1276714C1

CLAMP

- deck storage

2шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

4шт.

g

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

15

1276715C1

LINK

- clamp

2шт.

16

1276716C1

LEVER

- clamp

2шт.

17

1276717C1

PROTECTOR

- rubber

2шт.

h

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 nc x 3/4 inch

8шт.

j

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- serrated flange lock, 1/4 inch NC

8шт.

18

1276718C1

BRACKET

- clamp

2шт.

d

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 nc x 3/4 inch

2шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

19

REF

INSTRUCTION

DRAPER - (see page 65)

1шт.

20

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

21

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

22

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

2шт.

25

153528C1

COTTER PIN

- hair

1шт.
