Запчасти Case IH 750 (64) - DRAPERS AND ROLLERS

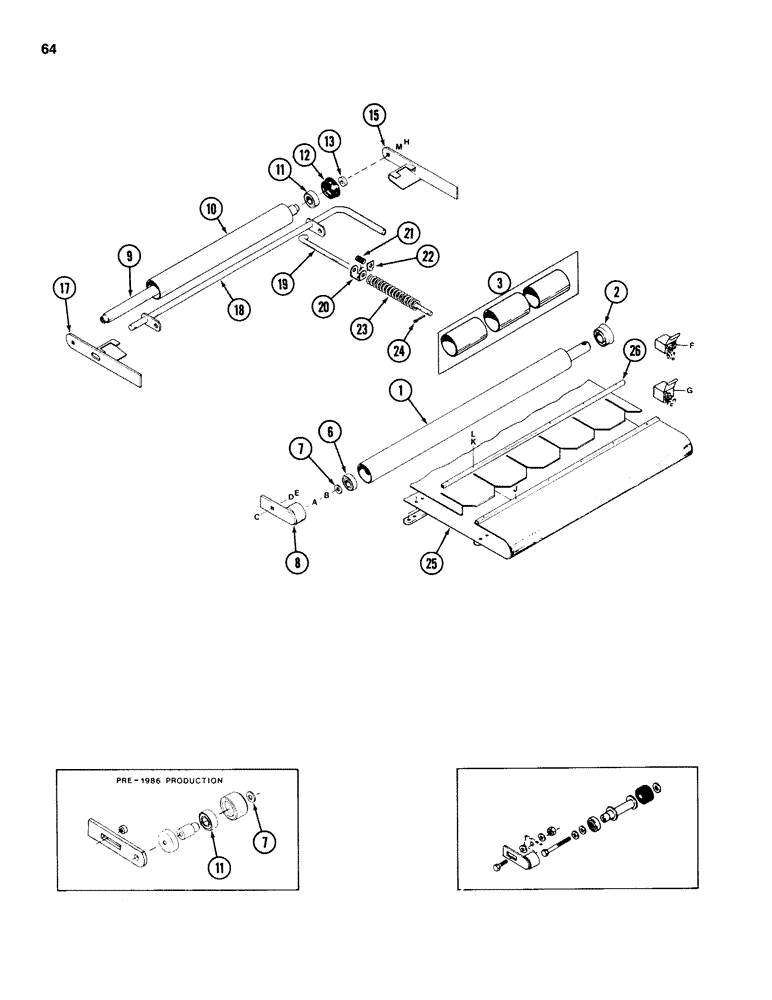

Схема запчастей Case IH 750 - (64) - DRAPERS AND ROLLERS

Артикул

Название

Примечание

Количество

1

395818A1

ROLLER ASSY.

- drive, front unit and conveyor (see note)

3шт.

1

1333972C1

ROLLER

- drive, left rear unit (see note)

1шт.

1

1333973C1

ROLLER

- drive, right and center deck, rear unit (see note)

2шт.

2

1276649C1

PLASTIC RING

BUSHING - anti-wrap

6шт.

3

823065C1

PACKAGE

KIT - lagging, includes three 6 inch pieces (2 kits used per roller)

1шт.

6

824933C91

BALL BEARING,20mm ID x 47mm OD x 14mm W

BEARING - ball

6шт.

7

20803R1

WASHER

- flat

6шт.

a

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

b

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

1333974C1

BAR

SUPPORT - drive roller (with square hole)

5шт.

8

1333771C1

SUPPORT

- drive roller (with rectangular slot)

5шт.

8

1333975C2

BAR

SUPPORT - drive roller (with 2 rectangular slots - conveyor only)

1шт.

c

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

5шт.

d

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch ID

5шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

5шт.

9

1333977C1

SHAFT

- idler roller

6шт.

10

1333976C1

TUBE,57.24 mm OD, 1043 mm Length

- idler roller (if replacing roller with formed grooves at each end, order ref. 29)

6шт.

11

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

12шт.

12

1333970C1

RETAINER

- bearing

12шт.

13

1333978C1

SPACER

12шт.

15

1276652C1

SUPPORT

- idler roller

6шт.

17

1276653C1

SUPPORT

- idler roller

6шт.

h

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

12шт.

m

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

12шт.

18

1333979C1

ROD

- tightener

6шт.

19

1276655C1

ROD

- spring

12шт.

20

1276543C1

CHANNEL

- stop

12шт.

21

1276545C1

SPRING

- stop

12шт.

22

1276544C1

WASHER

- stop

12шт.

23

1276656C1

SPRING

- compression

12шт.

24

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

12шт.

25

825802C92

APRON

DRAPER - right (front unit)

1шт.

25

90969C1

BELT

DRAPER - left (21 foot front unit)

1шт.

25

1276659C1

BELT

DRAPER - left (25 foot front unit)

1шт.

25

1276661C1

BELT

DRAPER - right (rear unit)

1шт.

25

91058C1

BELT

DRAPER - left (21 foot rear unit)

1шт.

25

1276660C1

BELT

DRAPER - left (25 foot rear unit)

1шт.

25

1276662C1

BELT

DRAPER - center deck (rear unit)

1шт.

25

1276680C1

BELT

DRAPER - conveyor, long (standard)

1шт.

25

1276681C1

BELT

DRAPER - conveyor, short (option)

1шт.

25

1336271C1

CURTAIN

DRAPER - extension, 15 inches long

1шт.

26

825971C11

SLAT

- connector, metal

1шт.

j

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

- round head, no. 10 NC x 1-1/4 inch

1шт.

k

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

k

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

Выбрано товаров: 45
