Запчасти Case IH 750 (56) - KNIFE DRIVE, FRONT UNIT

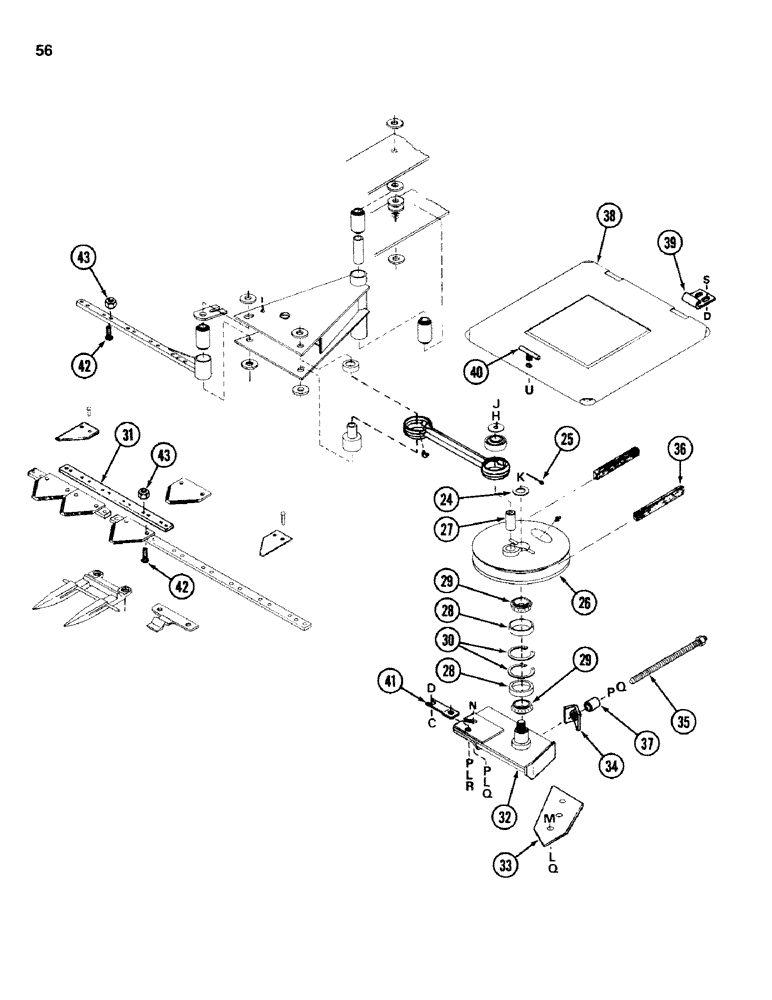

Схема запчастей Case IH 750 - (56) - KNIFE DRIVE, FRONT UNIT

Артикул

Название

Примечание

Количество

24

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

- flat

1шт.

k

427640

SLOTTED NUT,3/4"-16, G5

NUT - slotted hex, 3/4 inch NF

1шт.

25

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

26

80662C1

PULLEY

- crank, (includes ref. 20 and 27 through 30)

1шт.

27

80663C1

PIN

- crank

1шт.

28

651817R1

BEARING CUP

CUP - bearing

2шт.

29

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

- bearing

2шт.

30

216389R1

SNAP RING,2.312", Int, #231

Ring, Snap, 2.312", Int, #231

2шт.

31

825929C1

BAR

PLATE - splice (25 foot only)

1шт.

32

80665C1

SPINDLE

- knife drive

1шт.

n

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

1шт.

p

NLS

NO LONGER SERVICED

- flat, 17/32 inch ID

2шт.

l

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

q

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

r

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

33

80666C1

LARGE PLATE

PLATE - clamp

1шт.

m

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - round head square neck, 1/2 NC x 3 inch

3шт.

l

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

q

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

34

1276632C1

NUT

- stop

1шт.

35

1276584C1

BOLT

- adjusting

1шт.

p

120396

WASHER

- flat, 17/32 inch ID

1шт.

q

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

36

80767C1

BELT,22.43 mm W x 2926.00 mm L

Knife Drive 22.43 mm W x 2926.00 mm L

1шт.

37

825995C1

SPACER

- adjusting bolt

1шт.

38

80668C2

COVER

- knife drive

1шт.

39

NSS

NOT SOLD SEPARAT

HINGE - cover

2шт.

s

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- flange head, 3/8 NC x 1 inch

4шт.

d

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

40

89277C1

BOLT

- fastener, cover

1шт.

u

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

41

1281413C1

NUT

- adjusting, register

1шт.

c

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

d

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

1шт.

42

1954815C1

BOLT

- slotted head ribbed neck, no. 12 NC x 1 inch (11 used for 21 foot)

21шт.

43

1954816C1

LOCK NUT

NUT - lock, no. 12 inch NC distorted thread (11 used for 21 foot)

21шт.

Выбрано товаров: 36
