Запчасти Case IH 750 (52) - MAIN DRIVES, REAR UNIT

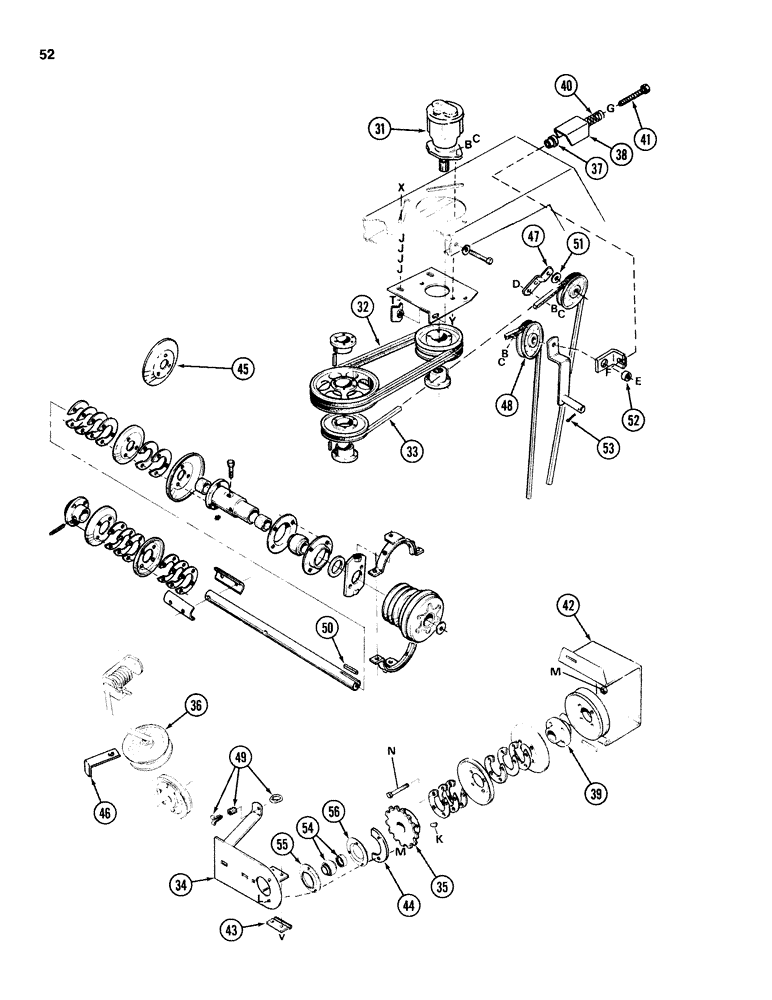

Схема запчастей Case IH 750 - (52) - MAIN DRIVES, REAR UNIT

Артикул

Название

Примечание

Количество

j

NLS

NO LONGER SERVICED

- flat, 17/32 inch ID

12шт.

x

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- flange head, 1/2 NC x 1-1/4 inch

3шт.

31

REF

INSTRUCTION

MOTOR - hydraulic (see page 23)

1шт.

y

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

2шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

c

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

32

1276634C1

SET OF BELTS

Matched

1шт.

33

1276635C1

BELT

- drive

1шт.

34

1276636C1

PLATE

- mounting, left draper and conveyor

1шт.

35

1276678C1

SPROCKET ASSY.

SPROCKET - conveyor drive

1шт.

k

22223R1

SCREW,Hex Soc, 1/4"-20 x 1/2"

- set, hex socket head, cup point 1/4 NC x 1/2 inch

2шт.

36

REF

INSTRUCTION

PULLEY - idler (see page 61)

2шт.

37

1276547C1

BUSHING

- plastic

1шт.

38

REF

INSTRUCTION

GAUGE - welded

1шт.

39

1276638C1

HUB

- pulley

1шт.

n

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

4шт.

m

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- serrated flange lock, 5/16 inch NC

4шт.

40

80716C1

SPRING

- idler tension

1шт.

41

80714C1

ROD

- adjusting, idler tension

1шт.

f

120377

NUT,3/8" - 16, Gr 5

1шт.

g

NLS

NO LONGER SERVICED

- flat, 7/16 inch ID

1шт.

42

1276639C1

SHIELD

1шт.

43

80745C1

HINGE

- shield

1шт.

v

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

w

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

44

1276641C1

RETAINER

- deck

1шт.

45

1276642C1

PULLEY

- half, reel drive

1шт.

46

1276643C1

RETAINER

- conveyor pulley

1шт.

47

1276644C1

ARM

- idler mount

1шт.

d

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

c

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

48

1281397C1

PULLEY

- idler, flat

1шт.

e

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

1шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

c

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

49

188029C1

LATCH

FASTENER - 1/4 turn

1шт.

50

Y24430

KEY,1/4" Sq x 1 1/2", Par

- 1/4 square x 1-1/2 inch

1шт.

51

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat

1шт.

52

950019R1

SPACER

- idler tension angle

1шт.

53

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

54

666589R91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - draper roller

1шт.

54

455102R21

COLLAR

- lock

1шт.

55

462360R1

FLANGED BEARING

- bearing

1шт.

56

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - bearing, with lube fitting

1шт.

l

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

3шт.

m

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- serrated flange lock, 5/16 inch NC

3шт.

Выбрано товаров: 47
