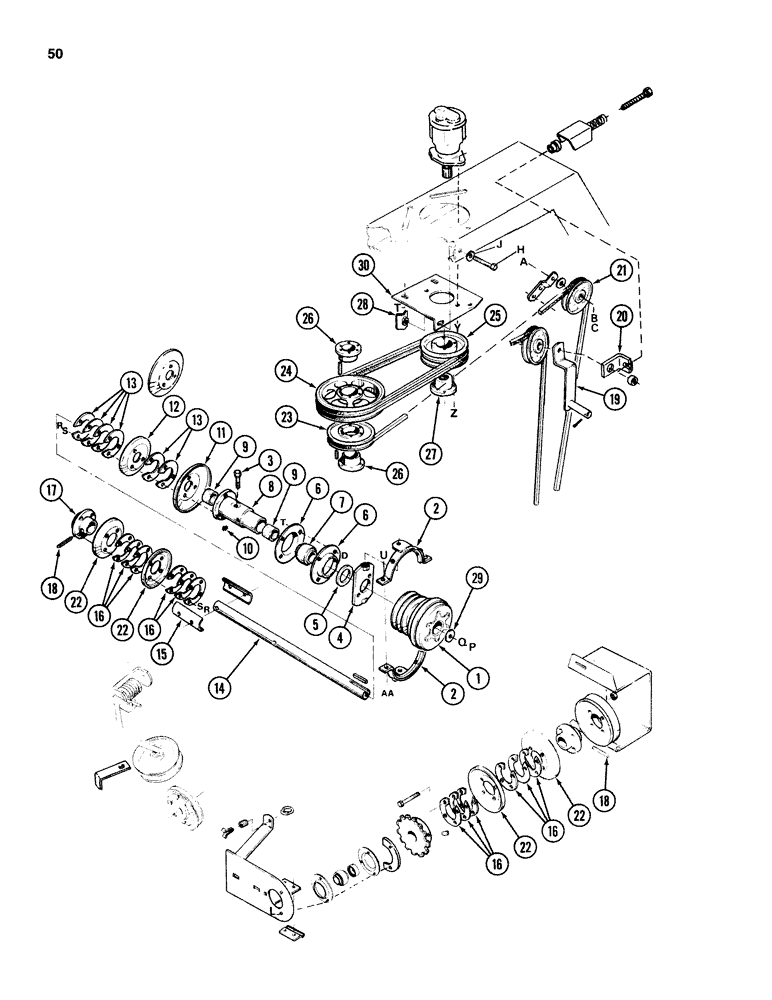

Запчасти Case IH 750 (50) - MAIN DRIVES, REAR UNIT

1

1276768C1

CLUTCH

- electric

1шт.

2

1276591C1

STRAP

- clutch

2шт.

REF ITEM 2 P/N 1276591C1 AND REF ITEM 4 P/N 1276611C1-IF DLR IS LOOKING FOR THE BOLT WHICH GOES THRU THE MIDDLE OF THE STRAP AND THRU THE DRIVE PLATE, ORDER ITEM 3 P/N 1276610C1 PER NOTE IN HARDCOPY OF P/B 8-4020 DATED 3/1987.JBEDFORD 9/15/98.

1шт.

u

180085

SPRING

- hex, 5/16 NC x 1-3/4 inch

2шт.

aa

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC distorted thread

2шт.

3

1276610C1

BOLT

- drive

2шт.

4

1276611C1

PLATE

- drive

1шт.

5

1276446C1

WASHER

SPACER - drive plate

1шт.

6

663562R1

FLANGE

- bearing, 4 hole

2шт.

d

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

t

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

4шт.

7

80751C1

BALL BEARING

- ball

1шт.

8

1276616C1

SPOOL

- with bushings and fitting

1шт.

9

1276831C1

BUSHING

- bronze

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

11

1276617C1

PULLEY

- half

1шт.

12

1276618C1

PULLEY

- half

1шт.

13

1276619C1

SHIM

- pulley

6шт.

r

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

3шт.

s

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

1276620C1

SHAFT

- drive

1шт.

15

1276621C1

COUPLING

COUPLER - shaft

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

16

1276780C1

SHIM

- pulley, 1/16 inch thick

1шт.

17

1276692C1

PULLEY

HUB - pulley

1шт.

r

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

4шт.

s

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

19

1281367C1

SUPPORT

ARM - idler

1шт.

20

1276663C1

ANGLE

- idler tension

1шт.

21

1960453C1

PULLEY

- idler, "V"

1шт.

a

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - round head square neck, 1/2 NC x 2 inch

1шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

c

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22

825911C1

PULLEY

- half

6шт.

23

1276628C1

PULLEY

- V-belt

1шт.

24

1276629C1

PULLEY

- double

1шт.

25

1276630C1

PULLEY

- double, motor

1шт.

26

1276631C1

BUSHING

- tapered, with keys and bolts

2шт.

27

1276609C1

BUSHING

- splined

1шт.

z

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

1276632C1

NUT

- motor adjustment

1шт.

h

1337444C1

BOLT

- adjustment, 1/2 NC x 4 inch, thread full length

1шт.

j

NLS

NO LONGER SERVICED

- flat, 17/32 inch ID

1шт.

29

477589R1

WASHER

- flat

1шт.

p

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

q

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

30

1276633C1

BRACKET

BASE - motor mount

1шт.

t

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

3шт.
