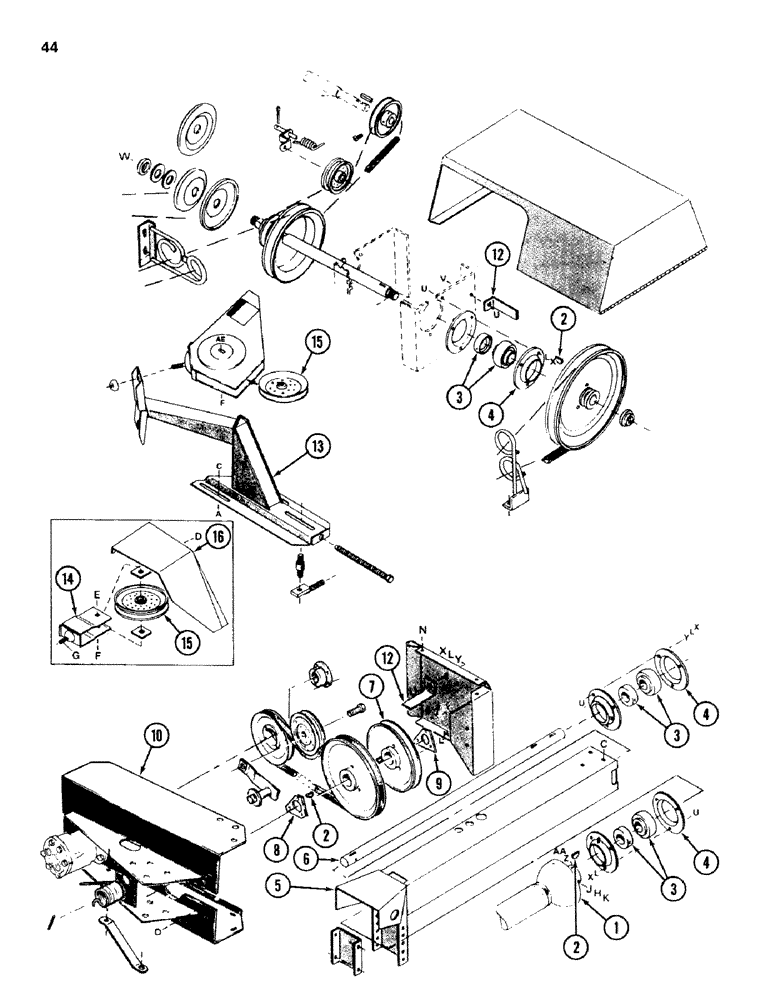

Запчасти Case IH 750 (44) - MAIN DRIVES, FRONT UNIT

1

REF

INSTRUCTION

DRIVE LINE - implement (see page 43)

1шт.

k

180113

SPRING

- hex, 5/16 NC x 3 inch

1шт.

h

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

j

120376

NUT,5/16"-18, G5

1шт.

z

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

aa

84983

SET SCREW,3/8" x 1"

SCREW - set, square head cup point, 3/8 NC x 1 inch

2шт.

2

124557

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

KEY - Woodruff, 5/16 x 1-1/8 inch

4шт.

3

557116R91

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

BEARING - ball, spherical OD

4шт.

3

557117R11

COLLAR

COLLAR - lock

4шт.

4

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing

4шт.

u

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

12шт.

y

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch ID

3шт.

l

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

x

120377

NUT,3/8" - 16, Gr 5

12шт.

5

1276570C1

FRAME

- drive

1шт.

c

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

7шт.

6

1276571C1

SHAFT

- drive

1шт.

7

1276573C1

PULLEY

- 9-1/2 inch (240 mm) OD

1шт.

8

1276574C1

PLATE

- pulley assembly

1шт.

9

1276608C1

PLATE

- pulley assembly

1шт.

l

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

m

186289

BOLT,Hex, 3/8" - 16 x 5", Gr 5

- hex, 3/8 NC x 5 inch

3шт.

10

1276576C1

SHIELD

- drive (prior to P.I.N. 736 also order 1276577C2, ref. 11)

1шт.

a

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

2шт.

c

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

2шт.

11

1276557C1

PULLEY

SHIELD - drive (prior to P.I.N. 736)

1шт.

11

1276557C2

SHIELD - drive (P.I.N. 736 and after)

1шт.

d

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.

n

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flange head, 5/16 NC x 3/4 inch

6шт.

12

1276578C1

GUIDE

- belt

3шт.

u

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

y

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch ID

2шт.

l

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

x

120377

NUT,3/8" - 16, Gr 5

2шт.

v

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

1шт.

13

1276579C1

SUPPORT

MOUNT - idler, mule drive

1шт.

a

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

2шт.

c

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

2шт.

14

1276583C1

BRACKET

- swivel idler (prior to P.I.N. 2880)

2шт.

f

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC distorted thread

2шт.

g

28133R1

CARRIAGE BOLT,#3, 5/8" - 11 x 2", Gr 8

BOLT - flat head square neck, 5/8 NC x 2 inch

2шт.

15

1276581C1

PULLEY

- idler

2шт.

e

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/2 inch (prior to P.I.N. 2880)

2шт.

ae

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT - hex, 5/8 NC x 1-3/4 inch (P.I.N. 2880 and after)

2шт.

f

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC distorted thread

2шт.

f

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC distorted thread

2шт.

16

1276582C1

SHIELD

- idler (prior to P.I.N. 2880)

1шт.

d

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

2шт.
