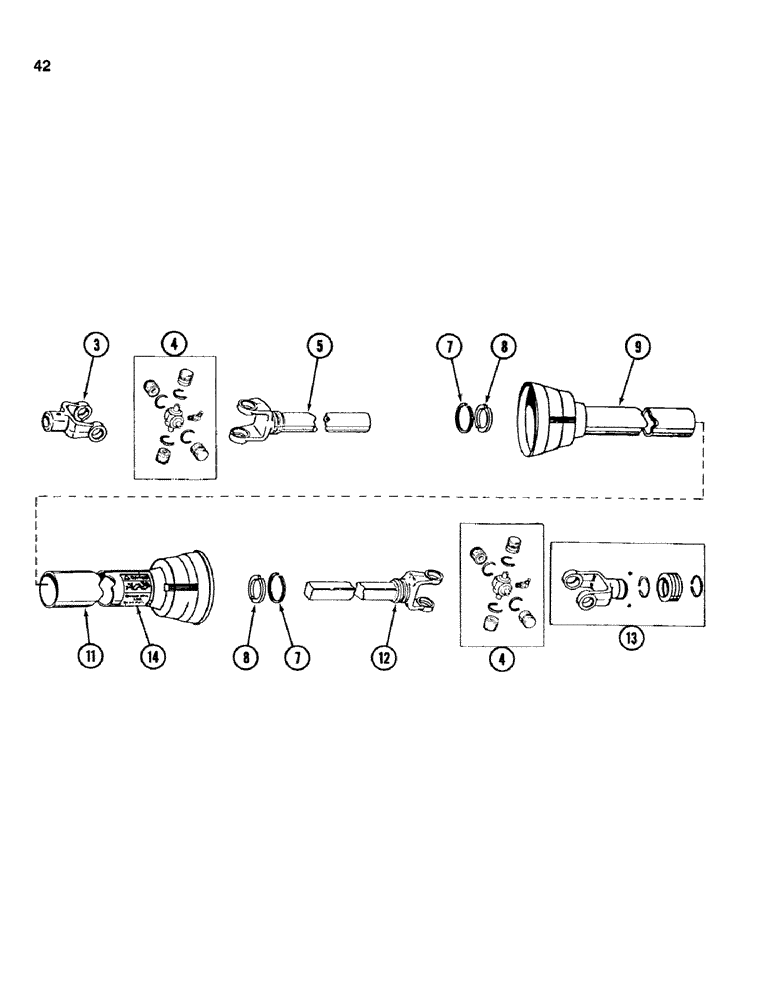

Запчасти Case IH 750 (42) - DRIVE LINE

REF

INSTRUCTION

DRIVE LINE - complete, 1000 RPM PTO

1шт.

1281345C91

HALF SHAFT

JOINT ASSEMBLY - rear (female)

1шт.

3

1281346C1

FORK

YOKE - end

1шт.

4

1281344C91

KIT

- rear, cross and bearing(replaces 1281344C1)

2шт.

#4 should be 1281344c91 - subs to 757443 - 7/98

1шт.

5

1281349C1

JOINT

YOKE AND TUBE ASSEMBLY

1шт.

7

597559R1

RETAINER

- bearing

2шт.

8

1276414C1

CLAMP

BEARING - nylon

2шт.

9

1281348C1

GUARD

- inner

1шт.

1276797C91

JOINT ASSY.

JOINT ASSEMBLY - front (male) (includes ref. 4, 7 and 8)

1шт.

11

1276798C1

GUARD

- outer

1шт.

12

1276799C1

YOKE

AND SHAFT ASSEMBLY

1шт.

13

1281435C1

FORK

YOKE ASSEMBLY - lock

1шт.

14

80672C1

DECAL

- danger

1шт.
