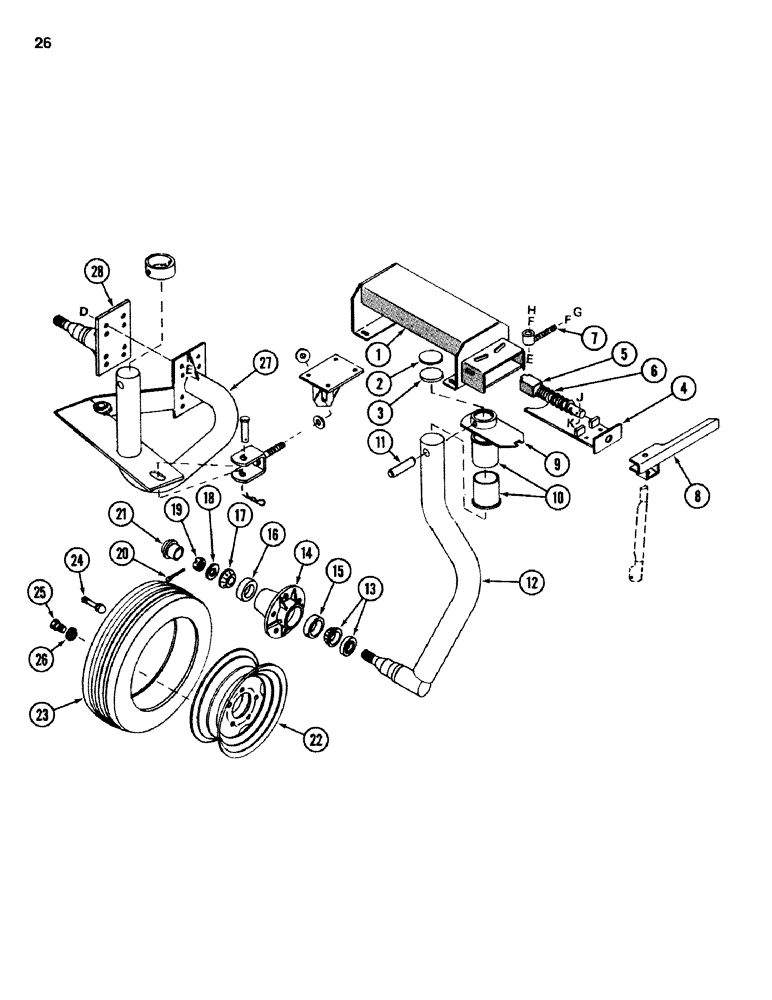

Запчасти Case IH 750 (26) - WHEELS, CASTERS AND WHEEL LOCKS

1

1276488C1

HOUSING

- lock

2шт.

l

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

8шт.

2

1276489C1

BUSHING

BEARING - thrust, nylon

2шт.

3

1276490C1

WASHER, THRUST

BEARING - thrust

2шт.

4

1276504C1

LOCK

- caster

2шт.

5

1276491C1

LOCK

DOG - lock

2шт.

6

1276492C1

SPRING

- compression

2шт.

7

1276493C1

BOLT

EYEBOLT

4шт.

e

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

4шт.

f

120396

WASHER

- flat, 17/32 inch ID

8шт.

g

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

4шт.

h

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

8

1276494C1

HANDLE

- lock (prior to P.I.N. 516 also order 1281395C1 Hose Assembly, page 11)

2шт.

j

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC distorted thread

2шт.

k

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

- hex, 5/16 NC x 1-1/4 inch

2шт.

9

1276495C1

PLATE

LOCKPLATE - caster

2шт.

10

1276496C1

BUSHING

- caster

4шт.

11

1276497C1

PIN

- caster, securing

2шт.

12

1276498C1

SUPPORT

CASTER - left wheel, 5 bolt wheel

2шт.

12

96152C1

CASTER

- left wheel, 6 bolt wheel

2шт.

13

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

- bearing, 5 bolt wheel

5шт.

13

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

CONE - bearing, 6 bolt wheel

5шт.

14

824255C91

HUB

- includes bearing cups, 5 bolt wheel

5шт.

14

96172C1

HUB

- includes bearing cups, 6 bolt wheel

5шт.

15

651817R1

BEARING CUP

CUP - bearing, inner 5 bolt wheel

5шт.

15

478793R1

BEARING CUP

CUP - bearing, inner 6 bolt wheel

5шт.

16

651814R1

BEARING CUP

CUP - bearing, outer 5 bolt wheel

5шт.

16

651817R1

BEARING CUP

CUP - bearing, outer 6 bolt wheel

5шт.

17

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, 5 bolt wheel

5шт.

17

651815R91GV

BEARING CONE

Value, Cone Bearing

5шт.

17

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, 6 bolt wheel

5шт.

18

467750R1

WASHER

- flat, 13/16 inch ID, 5 bolt wheel

5шт.

18

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

- flat, hardened, 6 bolt wheel

5шт.

19

427640

SLOTTED NUT,3/4"-16, G5

NUT - slotted hex, 3/4 inch NF

5шт.

20

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

5шт.

21

824257C1

CAP

- dust, 5 bolt wheel

5шт.

21

820166C1

CAP

- dust, 6 bolt wheel

5шт.

22

824089C1

RIM

WHEEL - 5 bolt

5шт.

22

96175C1

RIM

WHEEL - 6 bolt

5шт.

23

NSS

NOT SOLD SEPARAT

TIRE - tubeless 8.5L-14, 4 ply l 1 Rib Implement

5шт.

24

387841R91

VALVE

STEM - valve

5шт.

25

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- wheel, 1/2 NF x 3/4 inch (25 used on 5 bolt wheels)

30шт.

26

1276499C1

WASHER

- tapered, (left 5 bolt wheel front unit only)

5шт.

27

96176C1

SUPPORT

CASTER - right wheel

2шт.

28

1276501C1

SPINDLE

- wheel, right, 5 bolt wheel

2шт.

28

96153C1

SUPPORT

SPINDLE - wheel, right, 6 bolt wheel

2шт.

d

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

e

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

8шт.
