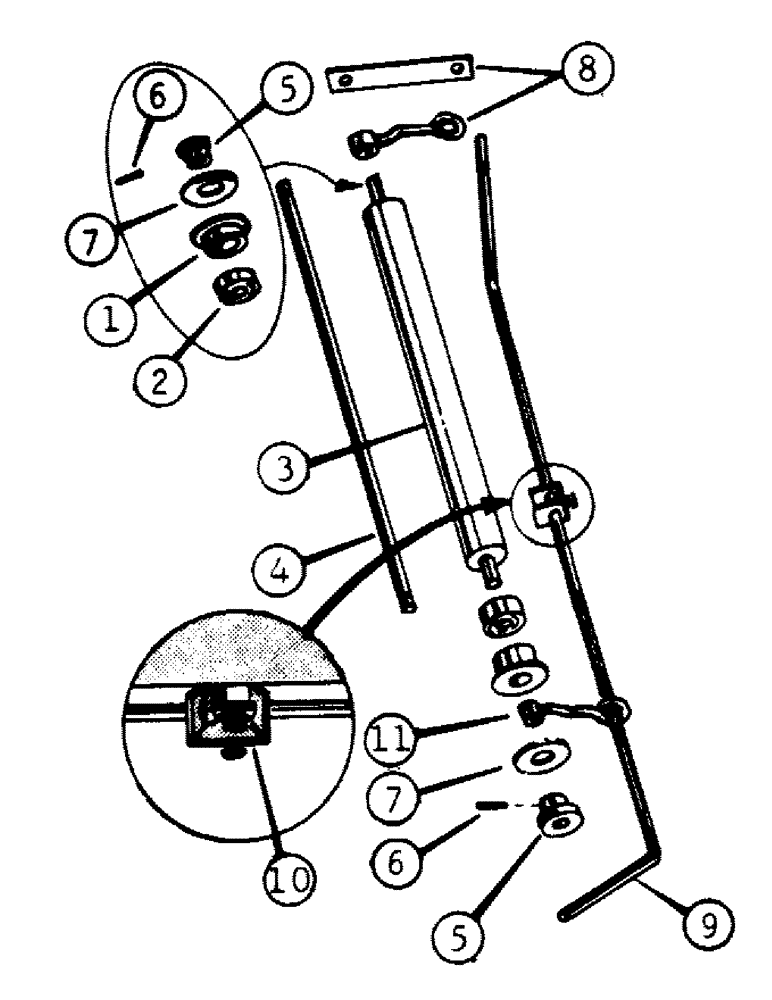

Запчасти Case IH 75 (A-13) - CONVEYOR, DRIVE ROLLER AND IDLER ROLLER, SERIAL NO. 1360 AND BELOW

1

825833C1

RETAINER

roller bearing, 3 for 15 ft. machines, 6 for 18 ft., 21 ft. and 25 ft. machines

1шт.

2

581185R91

BALL BEARING

drive and idler roller, 3 for 15 ft. machines, 6 for 18 ft., 21 ft. and 25 ft. machines

1шт.

3

825832C1

TUBE

idler roller, 1 for 15 ft., 2 for 18 ft, 21 ft. and 25 ft. machines

1шт.

4

825835C1

ROD

SHAFT, idler roller, 1 for 15 ft., 2 for 18 ft, 21 ft. and 25 ft. machines

1шт.

5

825834C1

BUSHING

SLEEVE, retainer, 2 per shaft

1шт.

6

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, , 2 per shaft 3/16" x 1 1/4", Slotted

1шт.

7

615190R1

WASHER

.906 x 1.188 x .042

1шт.

8

825837C1

BAR

LINK, front, 2 for 15 ft. machines

1шт.

8

825840C1

ARM

LINK, LH front, 1 for 18 ft., 21 ft. and 25 ft. machines

1шт.

8

825837C1

BAR

LINK, RH front, 1 for 18 ft., 21 ft. and 25 ft. machines

1шт.

9

825838C1

ROD, roller tension

1шт.

10

825890C1

CLEVIS

POSITIONER ASSY, 15 ft. and 18 ft. end delivery machines

1шт.

10

825891C1

POSITIONER ASSY, LH, 18 ft., 21 ft. and 25 ft. off center delivery machines

1шт.

10

825890C1

CLEVIS

POSITIONER ASSY, RH, 18 ft., 21 ft. and 25 ft. off center delivery machines

1шт.

11

825839C1

ARM

LINK, LH rear link, All machines except 15 ft.

1шт.
